LMC058LF424
Schneider Electric
Overview

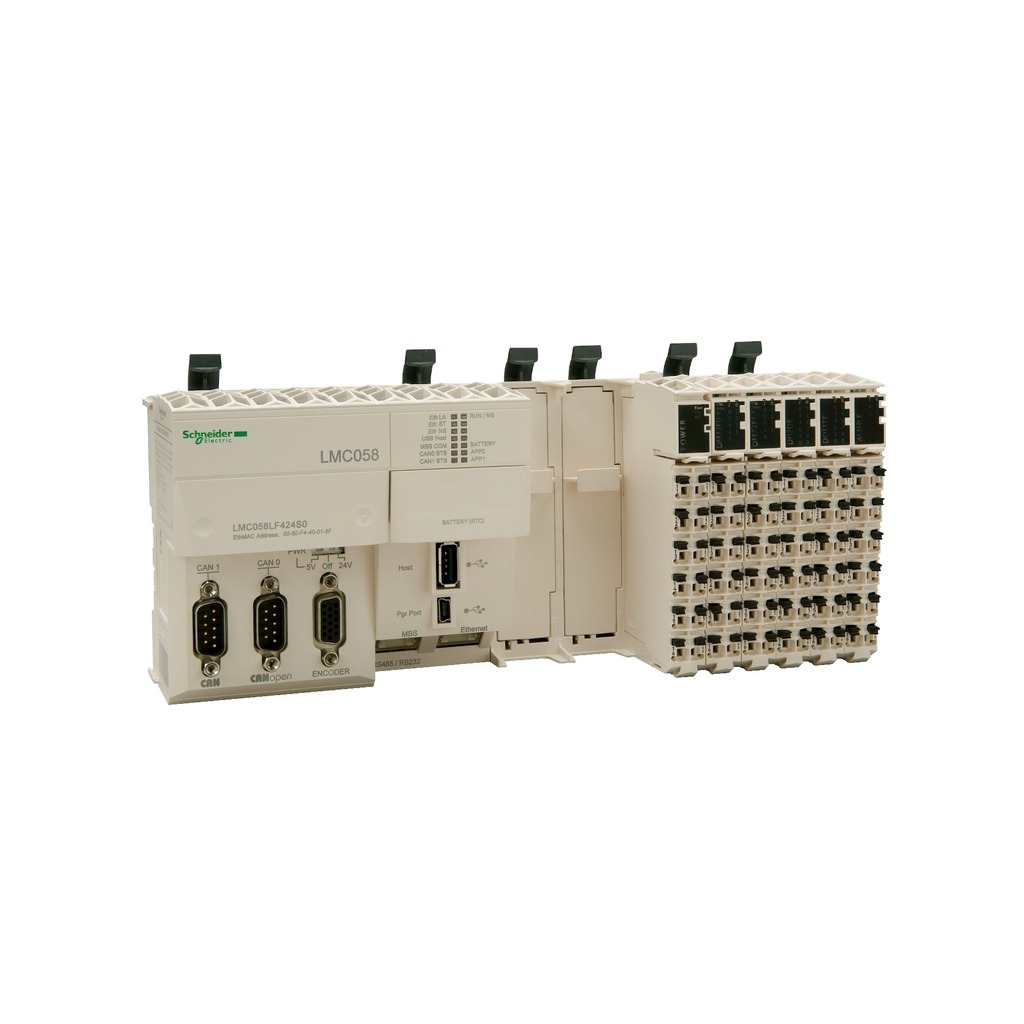

The LMC058LF424 is an automation component in the the Schneider Electric automation portfolio range from Schneider Electric. Motion Controller, 42 I/O, 4 axes, Modicon LMC058.
Application & Technical Notes
As a the schneider electric automation portfolio device, the LMC058LF424 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24 V DC (20.4...28.8 V) rating, an operating temperature range of 0...+55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0...+55 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25...+70 °C. Avoid condensation — the rated humidity is 10...95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the LMC058LF424, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the LMC058LF424?
The LMC058LF424 is a the schneider electric automation portfolio device in the the Schneider Electric automation portfolio range from Schneider Electric. It belongs to the the Schneider Electric automation portfolio automation family.
What are the key technical ratings of the LMC058LF424?
Its published highlights include 24 V DC (20.4...28.8 V), operating temperature 0...+55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the LMC058LF424 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the LMC058LF424 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the LMC058LF424?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Motion Controller, 42 I/O, 4 axes, Modicon LMC058
Hardware
| Processor | Dual-core ARM Cortex-A8 (M258 platform) |
|---|---|
| Clock speed | Not available |
| Program memory | 128 MB Flash |
| Data memory | 64 MB RAM |
| Programming software | SoMachine / EcoStruxure Machine Expert |
| Scan speed | 22 ns per Boolean instruction |
I/O Capacity
| Digital inputs | 26 (10 fast + 12 regular + 4 configurable) |
|---|---|
| Digital outputs | 16 (12 regular + 4 fast) |
| Analog inputs | None |
| Analog outputs | None |
| High-speed counters | Integrated (via fast inputs) |
| Pulse outputs | 4 fast outputs |
| Expansion modules (max) | Up to 7 TM5 expansion modules |
Communication
| Built-in ports | 1× Ethernet RJ45 (10/100BASE-TX), 1× serial RS-232/RS-485, 2× CAN (SUB-D9), 1× encoder input (SUB-D15), 1× USB-B mini (programming), 1× USB-A (memory stick) |
|---|---|
| Protocols | Modbus TCP/IP (Ethernet), Modbus RTU/ASCII (serial), CANopen master, CANmotion master (CAN) |
| Communication expansion | Built-in EtherNet/IP (Modbus TCP), CANopen, SERCOS III, RS-232/RS-485 serial; optional PCI communication modules |
Motion
| Number of axes | 4 synchronized axes (via CANmotion) |
|---|---|
| Motion protocol | CANopen master + CANmotion master |
| Encoder interfaces | 1× incremental encoder input (SUB-D15, 5V differential RS-422) |
Electrical
| Supply voltage | 24 V DC (20.4...28.8 V) |
|---|---|
| Power consumption | Not available |
| Bus current | 0.28 A @ 24V DC (rated main supply current); 0.04 A (embedded expert modules) |
| Battery | 3 V CR2477M lithium (for real-time clock / data retention) |
Environmental
| Operating temperature | 0...+55 °C |
|---|---|
| Storage temperature | -25...+70 °C |
| Relative humidity | 10...95% (non-condensing) |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 175 × 99 × 85 mm |
|---|---|
| Weight | 0.77 kg |
| Mounting | Symmetrical DIN rail |
Status
| Lifecycle | Discontinued 2026-06-30; End-of-service 2031-06-30 (Last verified: 2026-09) |
|---|
Lifecycle
| Discontinued (End of Sale planned | 2026-06-30; Service end: 2031-06-30). Replacement: Modicon M262 or LMCever. (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
