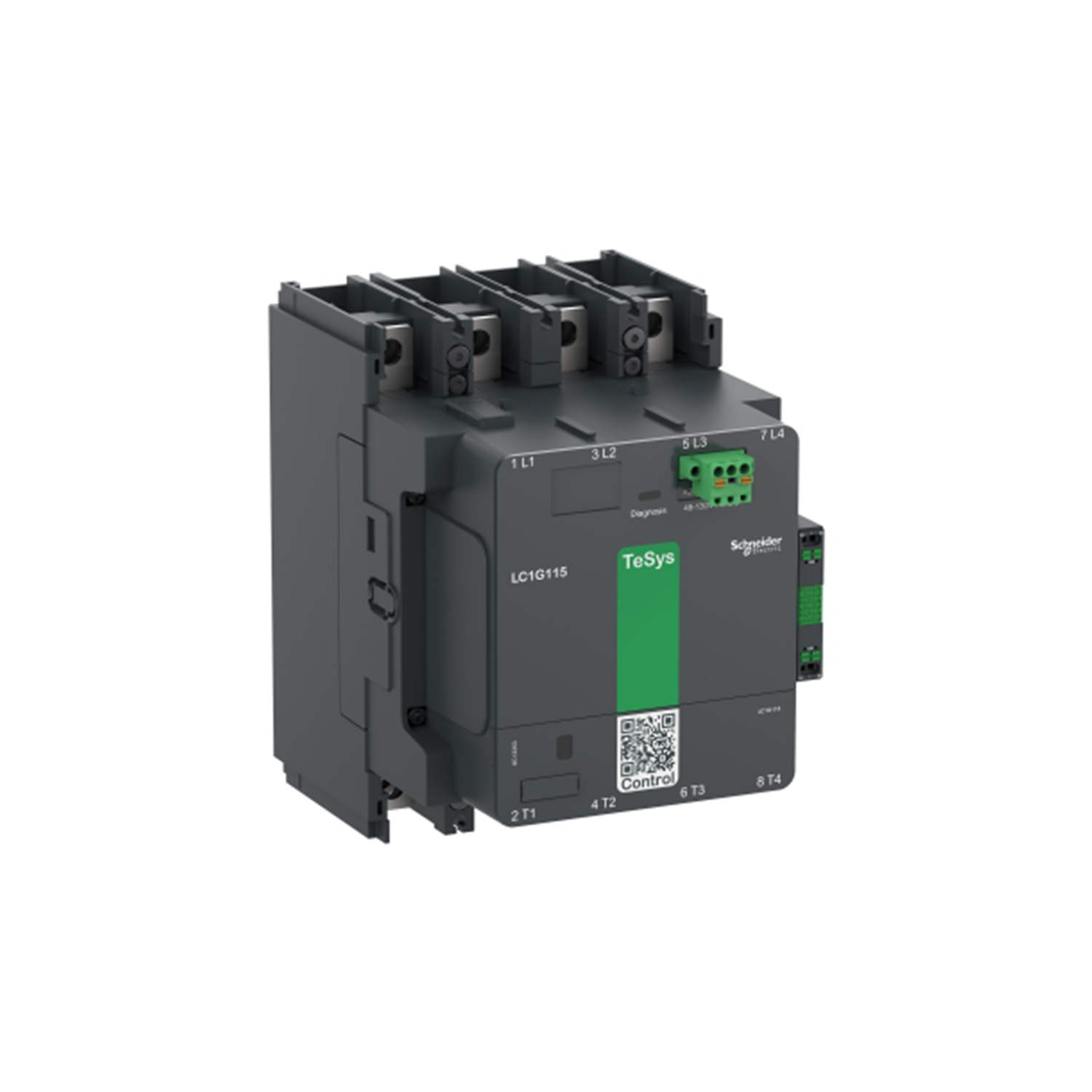

LC1G1504KUEN
Schneider Electric
Overview
The LC1G1504KUEN is an automation component in the TeSys Giga range from Schneider Electric. It is engineered for industrial automation duties within the Tesys motor control ecosystem.
Application & Technical Notes
As a tesys motor control device, the LC1G1504KUEN is intended for deployment in panel-based control cabinets and machine enclosures where Tesys motor control equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include plate mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the LC1G1504KUEN, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Tesys motor control installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the LC1G1504KUEN?
The LC1G1504KUEN is a tesys motor control device in the TeSys Giga range from Schneider Electric. It belongs to the Tesys motor control automation family.
What are the key technical ratings of the LC1G1504KUEN?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the LC1G1504KUEN mounted or installed?
It uses Plate. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the LC1G1504KUEN compatible with my controller?
It is part of the Tesys motor control family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the LC1G1504KUEN?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Schneider Electric LC1G1504KUEN Contactor, 100/250 V ac/dc Coil, 4-Pole, 275 A 100 to 250 V ac, 1 NO/1 NC, 1000V Specifications
Main
| Note | Range TeSys Range of product TeSys Giga Product or component type Contactor Device short name LC1G Contactor application Power switching Utilisation category AC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5 Poles description 4P [Ue] rated operational voltage <= 1000 V AC 50/60 Hz <= 460 V DC [Ie] rated operational current 150 A (at <60 °C) at <= 440 V AC-3 275 A (at <40 °C) at <= 1000 V AC-1 [Uc] control circuit voltage 100...250 V AC 50/60 Hz 100...250 V DC Control circuit voltage limits Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
|---|
Complementary
| Note | [Uimp] rated impulse withstand voltage 8 kV |
|---|---|
| Overvoltage category III | [Ith] conventional free air thermal current 275 A (at 40 °C) Rated breaking capacity 1280 A at 440 V [Icw] rated short-time withstand current 1.2 kA - 10 s 0.7 kA - 30 s 0.6 kA - 1 min 0.45 kA - 3 min 0.35 kA - 10 min Associated fuse rating 160 A aM at <= 440 V for motor 160 A aM at <= 690 V for motor 315 A gG at <= 690 V Average impedance 0.00018 Ohm [Ui] rated insulation voltage 1000 V Power dissipation per pole 10 W AC-1 - Ith 275 A 5 W AC-3 - Ith 150 A Compatibility code LC1G Pole contact composition 4 NO Auxiliary contact composition 1 NO + 1 NC Irms rated making capacity 1890 A at 440 V Coil technology Built-in bidirectional peak limiting Safety reliability level B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability 8 Mcycles inrush power in VA (50/60 Hz, AC) 540 VA inrush power in W (DC) 380 W hold-in power consumption in VA (50/60 Hz, AC) 12.4 VA hold-in power consumption in W (DC) 7.8 W Operating time 40...70 ms closing 15...50 ms opening Maximum operating rate 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 Connections - terminals Power circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 185 mm² Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end Control circuit: push-in 2 0.5…1.0 mm² with cable end Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end Connection pitch 35 mm Mounting support Plate Standards EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ Product certifications CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL Tightening torque 18 N.m Height 193 mm Width 143 mm Depth 193 mm Net weight 4.4 kg |
Environment
| Note | IP degree of protection IP2X front face with shrouds conforming to IEC 60529 IP2X front face with shrouds conforming to VDE 0106 |
|---|---|
| Ambient air temperature for | operation -25…60 °C |
| Ambient air temperature for | storage -60…80 °C Mechanical robustness Vibrations 5…300 Hz 2 gn contactor open Vibrations 5…300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed Colour Dark grey Protective treatment TH Permissible ambient air temperature around the device -40…70 °C at Uc |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 26.000 cm Package 1 Width 21.000 cm Package 1 Length 32.000 cm Package 1 Weight 5.466 kg |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
