FBM242
Schneider Electric
Overview
The FBM242 is an Externally Sourced, Discrete Output Interface Module in the the Schneider Electric automation portfolio range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As an externally sourced, discrete output interface module, the FBM242 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include a Range (Redundant) : 24 V dc +5%, -10% rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
For storage and transit, keep the unit within -40 to +70°C (-40 to +158°F). Avoid condensation — the rated humidity is 5 to 95% (noncondensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the FBM242, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your the Schneider Electric automation portfolio rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the FBM242?
The FBM242 is an externally sourced, discrete output interface module in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Externally Sourced, Discrete Output Interface Module.
What are the key technical ratings of the FBM242?
Its published highlights include Range (Redundant) : 24 V dc +5%, -10%. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the FBM242 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the FBM242 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the FBM242?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

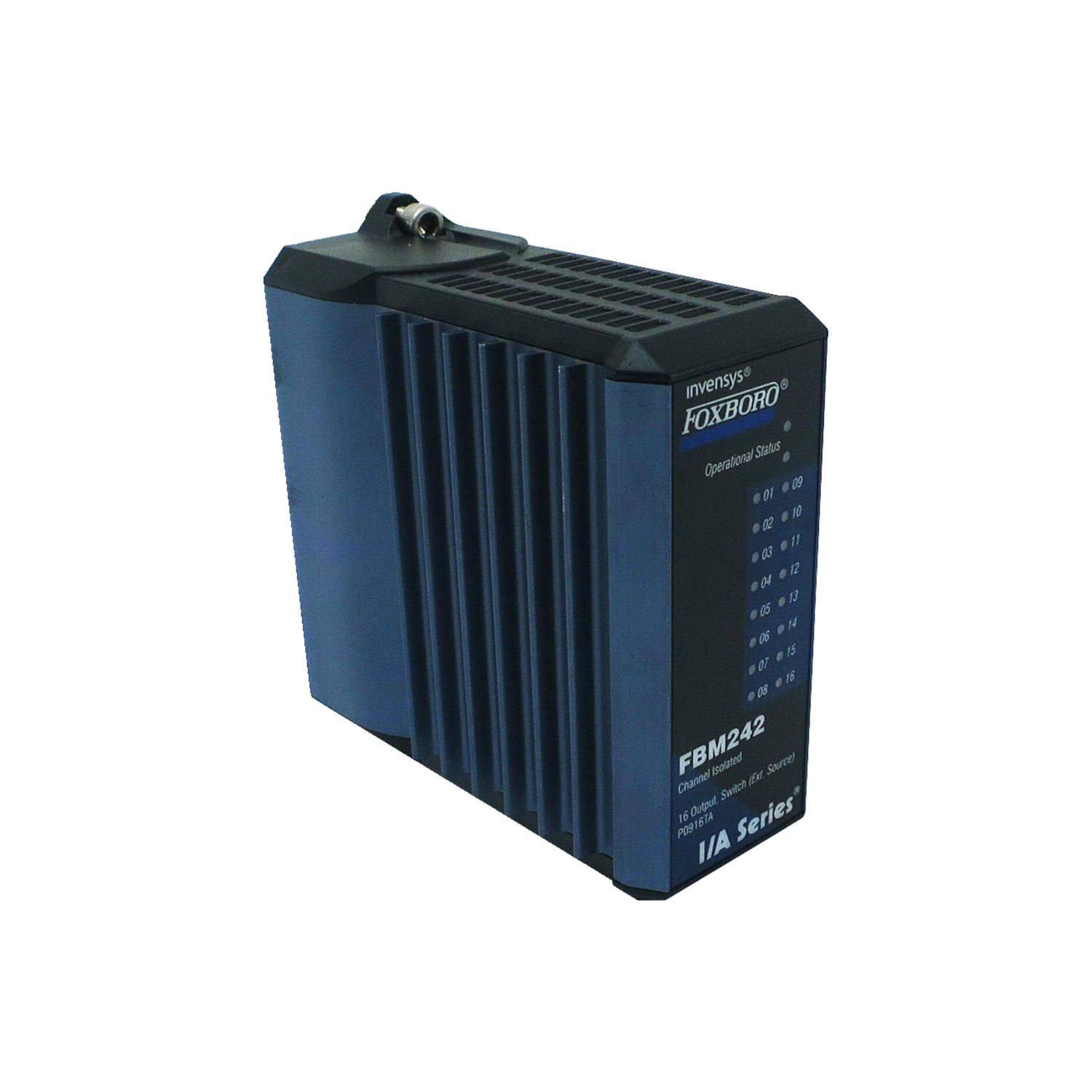

FBM242 | Foxboro ( by Schneider Electric ) | Externally Sourced, Discrete Output Interface Module Foxboro ( by Schneider Electric ) Product No. : FBM242 Product Type : Externally Sourced, Discrete Output Interface Module Features : Sixteen discrete outputs, Supports discrete output signals at voltages of 15 to 60 V dc ,120 V ac/125 V dc , 240 V ac , Each input and output is galvanically isolated , group isolated when used with external excitation , Compact, rugged design suitable for enclosure in Class G3 (harsh) environments, Executes the Discrete I/O or Ladder Logic program, with the following configurable options Input Filter Time, Fail Safe Configuration, Fail , Safe Fall-Back, and Sustained or Momentary Outputs
Specifications
| Input | Voltage Range (Redundant) : 24 V dc +5%, -10% |
|---|---|
| Temperature | Module : -20 to +70°C (-4 to +158°F) |
| Dimensions | (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm |
| Weight | : 0.284 kg |
| Output | Channels Sixteen isolated channels. |
| Output | Channel |
| Isolation | N/A |
| Communication | Communicates with its associated FCM or FCP via the redundant 2 Mbps module |
| Power | Requirements • Input Voltage Range (Redundant): |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
