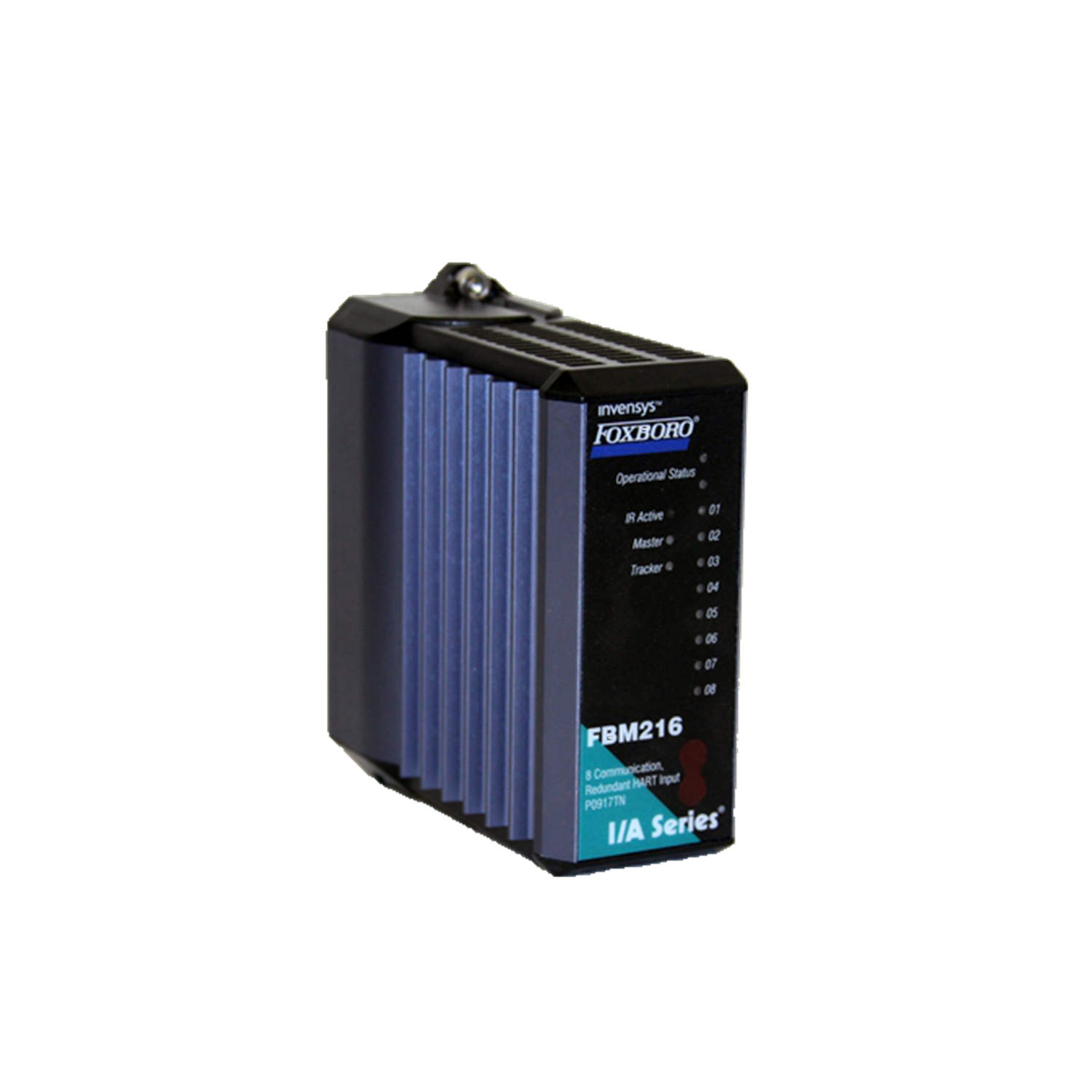

FBM216

Overview

The FBM216 is an automation component in the the Schneider Electric automation portfolio range from Schneider Electric. FBM216 | Foxboro ( by Schneider Electric ) | HART Communication Redundant Input Interface Module.

Application & Technical Notes

As a the schneider electric automation portfolio device, the FBM216 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.

Key published characteristics include a RANGE (REDUNDANT) rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.

Maintenance & Diagnostics

Avoid condensation — the rated humidity is 5 to 95% (noncondensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.

Sourcing & Procurement

When sourcing the FBM216, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.

Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.

Frequently Asked Questions

Specifications

FBM216 | Foxboro ( by Schneider Electric ) | HART Communication Redundant Input Interface Module Field Device Channels SUPPORTED HART INSTRUMENT TYPES HART instruments compliant to Version 5, 6, or 7 of the HART specifications may be used INTERFACE 8 individually isolated channels COMMUNICATION TO THE DEVICE Point-to-point, master/slave, asynchronous, halfduplex, at 1200 baud ERROR CHECKING Parity on each byte, and one CRC check byte SPEED 2 messages per second FASTEST ALLOWED ECB BLOCK PERIOD 100 msec - However, it is recommended that you refer to the Sizing Guidelines and Excel Workbook appropriate for your Control Processor to determine the optimal loading for a 100 msec Block Processing Cycle (BPC). MAXIMUM DISTANCE (FBM216b TO FIELD DEVICE) Meets HART FSK physical layer specification HCF_SPEC-54, Revision 8.1 [up to 3030 m (10000 ft)](1) INTERNAL LOOP SUPPLY COMPLIANCE VOLTAGE AT TERMINATION ASSEMBLY 18.5 V DC minimum at 20.5 mA CURRENT INPUTS Sense Resistor 280 Ω ±0.02% Total Input Resistance Including Redundancy Adapter 280 Ω nominal CURRENT INPUTS (CONT.) Analog Accuracy (Includes Nonlinearity) ± 0.075% of full scale

Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
