BMXSDO0802
Schneider Electric
Overview
The BMXSDO0802 is a Discrete output module in the Modicon X80 range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a discrete output module, the BMXSDO0802 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include an operating temperature range of -13…140 °F (-25…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-13…140 °F (-25…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…95 % 131 °F (55 °C) without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXSDO0802, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your the Schneider Electric automation portfolio rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXSDO0802?
The BMXSDO0802 is a discrete output module in the Modicon X80 range from Schneider Electric. It is described by the manufacturer as: Discrete output module.
What are the key technical ratings of the BMXSDO0802?
Its published highlights include operating temperature -13…140 °F (-25…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXSDO0802 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXSDO0802 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXSDO0802?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

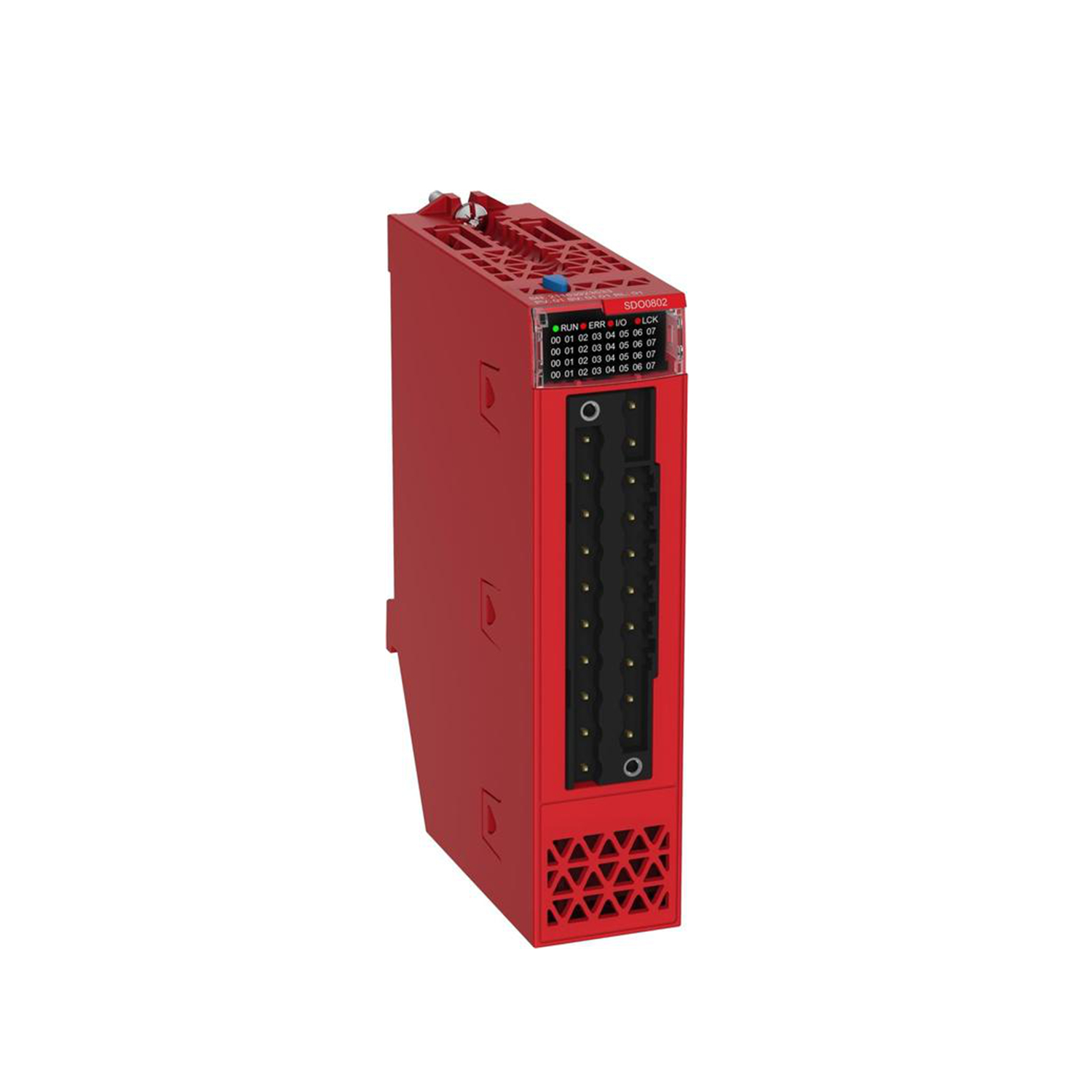

safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Main
| Range of Product | Modicon X80 Product or Component Type Discrete output module |
|---|---|
| Discrete output number | 8 EN/IEC 61131-2 |
| Discrete output type | Solid state Not isolated |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.5 A |
| Output compatibility | Not IEC 61131-2 DC input IEC 61131-2 type 3 DC input |
Complementary
| Current per channel | 0.625 A |
|---|---|
| Maximum current per module | 10 A |
| Maximum leakage current | 0.5 mA at state 0 |
| Maximum voltage drop | <1.2 V at state 1 Insulation resistance > 10 MOhm 500 V DC |
| Power dissipation in W | 4.4 W Response time on output 1.2 ms |
| Paralleling of outputs | Yes : 2 maximum |
| Typical current consumption | 264 mA 3.3 V DC 15 mA 24 V |
| MTBF reliability | 383000 H |
| Protection type | reverse polarity protection overload protection overvoltage protection short-circuit protection |
| Output overload protection | With current limiter With electronic circuit breaker 1.5 In < Id < 2 In |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode Voltage detection threshold < 14 V DC sensor fault > 18 V DC sensor OK |
| Maximum tungsten load | 6 W |
| Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | >= 48 Ohm |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Product Weight | 0.26 lb(US) (0.12 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground 1500 V AC 50/60 Hz 1 minute, output/internal logic |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor |
Ordering and shipping details
| Category | US1PC3418161 |
|---|---|
| Discount Schedule | PC34 GTIN 3606481204929 |
| Returnability | Yes |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 7.09 in (18.000 cm) |
| Package 1 Length | 10.24 in (26.000 cm) |
| Package weight(Lbs) | 12.028 oz (341.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 7.385 lb(US) (3.350 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
