BMXSDI1602
Schneider Electric
Overview

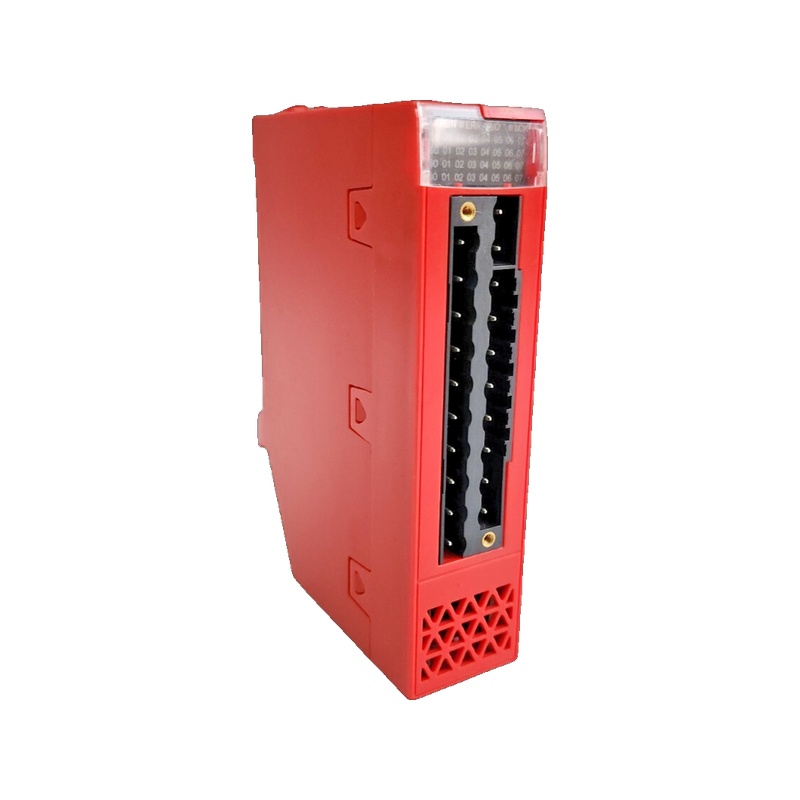

The BMXSDI1602 is a Discrete input module in the Modicon X80 range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a discrete input module, the BMXSDI1602 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include an operating temperature range of -13…140 °F (-25…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-13…140 °F (-25…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…95 % 131 °F (55 °C) without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXSDI1602, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your the Schneider Electric automation portfolio rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXSDI1602?
The BMXSDI1602 is a discrete input module in the Modicon X80 range from Schneider Electric. It is described by the manufacturer as: Discrete input module.
What are the key technical ratings of the BMXSDI1602?
Its published highlights include operating temperature -13…140 °F (-25…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXSDI1602 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXSDI1602 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXSDI1602?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
safety discrete input module, Modicon X80, 16 inputs, 24V DC positive
Main
| Range of Product | Modicon X80 Product or Component Type Discrete input module Discrete input number 16 |
|---|---|
| Discrete input type | Not isolated |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 3.2 mA |
Complementary
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 |
|---|---|
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 7500 Ohm Insulation resistance > 10 MOhm 500 V DC |
| Power dissipation in W | 3.57 W DC typical response time 6 ms DC maximum response time 6 ms Paralleling of inputs Yes |
| Typical current consumption | 256 mA 3.3 V DC 100 mA 24 V |
| MTBF reliability | 265000 H |
| Protection type | reverse polarity protection External overload protection 0.5 A fast blow Voltage detection threshold < 14 V DC sensor fault > 18 V DC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Net Weight | 0.254 lb(US) (0.115 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor |
Ordering and shipping details
| Category | US1PC3418161 |
|---|---|
| Discount Schedule | PC34 GTIN 3606481204912 |
| Returnability | Yes |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 7.09 in (18.000 cm) |
| Package 1 Length | 10.24 in (26.000 cm) |
| Package weight(Lbs) | 11.922 oz (338.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 7.275 lb(US) (3.300 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 72.753 lb(US) (33.000 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
