BMXSAI0410
Schneider Electric
Overview
The BMXSAI0410 is an Analog input module in the Modicon X80 range from Schneider Electric. It provides 4 channels and is built for signal interfacing within the Schneider Electric automation portfolio systems.
Application & Technical Notes
As an analog input module, the BMXSAI0410 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 4 channels, an operating temperature range of -13…140 °F (-25…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-13…140 °F (-25…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…95 % 131 °F (55 °C) without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXSAI0410, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your the Schneider Electric automation portfolio rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXSAI0410?
The BMXSAI0410 is an analog input module in the Modicon X80 range from Schneider Electric. It is described by the manufacturer as: Analog input module.
What are the key technical ratings of the BMXSAI0410?
Its published highlights include 4 channels, operating temperature -13…140 °F (-25…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXSAI0410 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXSAI0410 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXSAI0410?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

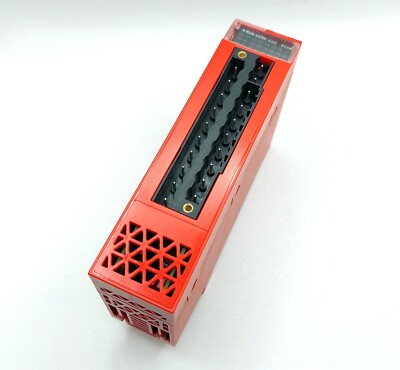

safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA
Main
| Range of product | Modicon X80 Product or component type Analog input module |
|---|---|
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated Input level High level |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA |
Complementary
| Note | Analog/digital conversion 16 bits |
|---|---|
| Analogue input resolution | 13 bits 0...12500 counts Permitted overload on inputs 25 mA 4...20 mA |
| Input impedance | 286 Ohm Precision of internal conversion resistor 0.1 % - 15 ppm/°C Type of filter Second order digital filtering |
| Nominal read cycle time | 6 ms for 4 channels |
| Measurement error | <= 0.3 % of full scale 4...20 mA - 25...60 °C Temperature drift 30 ppm/°C 4...20 mA Recalibration Internal Minimum crosstalk attenuation 120 dB Digital value format +/- 32000 in user scale +/- 10000 by default |
| Isolation voltage | 500 V DC between channels 1500 V DC between channels and ground 1500 V DC between channels and bus Measurement resolution 2 µA 4...20 mA Maximum conversion value 0...25 mA 4...20 mA |
| MTBF reliability | 463000 H |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Net weight | 0.315 lb(US) (0.143 kg) |
| Current consumption | 200 mA 3.3 V DC 115 mA 24 V DC |
Environment
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 15 gn |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP degree of protection | IP20 |
| Product certifications | TÜV CSA EAC RCM UL ATEX |
| Merchant Navy | N/A |
| Standards | N/A |
| CSA C22.2 No 61010-2-201 | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Fungal spore resistant class 3B2 IEC 60721-3-3 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 7.09 in (18.000 cm) |
| Package 1 Length | 10.24 in (26.000 cm) |
| Package 1 Weight | 12.134 oz (344.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 7.269 lb(US) (3.297 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
