BMXPRA0100
Schneider Electric
Overview
The BMXPRA0100 is a Positioning control in the the Schneider Electric automation portfolio range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a positioning control, the BMXPRA0100 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24 V DC (via backplane) rating, an operating temperature range of 0°C to +60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to +60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25°C to +70°C. Avoid condensation — the rated humidity is 5% to 95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXPRA0100, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXPRA0100?
The BMXPRA0100 is a positioning control in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Positioning control.
What are the key technical ratings of the BMXPRA0100?
Its published highlights include 24 V DC (via backplane), operating temperature 0°C to +60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXPRA0100 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXPRA0100 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXPRA0100?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

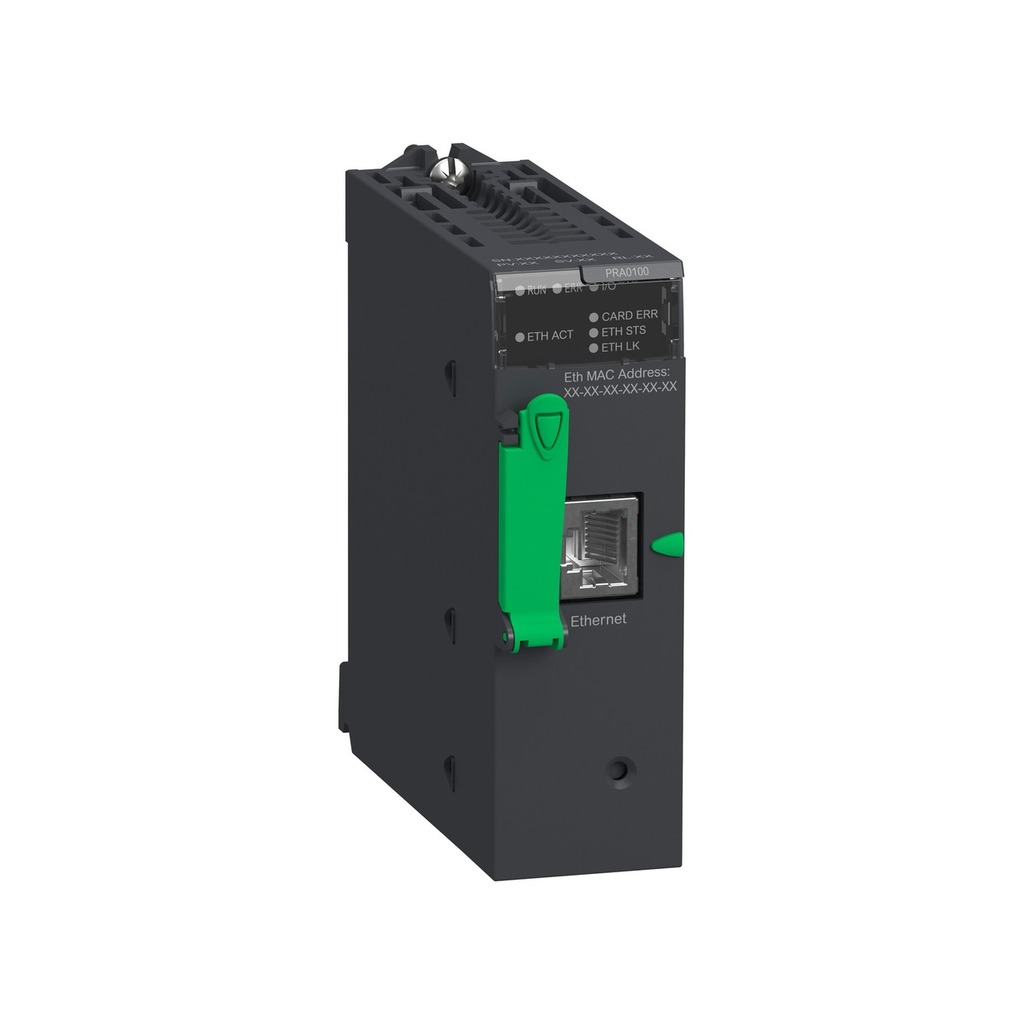

Modicon X80 1-axis Positioning Control Module
Motion Specifications
| Axes | 1 axis |
|---|---|
| Type | Positioning control |
| Output | Pulse / direction |
| Maximum pulse frequency | 200 kHz max |
Electrical
| Supply voltage | 24 V DC (via backplane) |
|---|---|
| Power consumption | 2.9 W |
| Bus current | 120 mA @ 24 V DC |
Environmental
| Operating temperature | 0°C to +60°C |
|---|---|
| Storage temperature | -25°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
|---|---|
| Weight | 0.18 kg |
| Slot occupation | 1 slot |
Lifecycle
| Lifecycle | Active (shared I/O platform for M340 and M580) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
