Overview

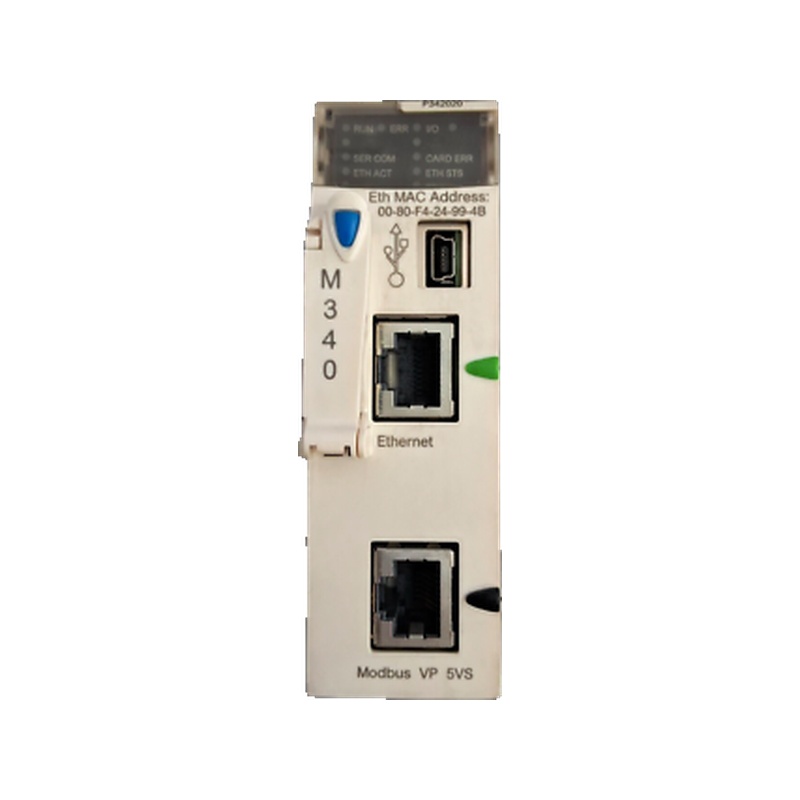

The BMXP342020 is a Processor module in the Modicon M340 automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon M340 or M580 ecosystem.
Application & Technical Notes
As a processor module, the BMXP342020 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon M340 or M580 equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. Avoid condensation — the rated humidity is 10…95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXP342020, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon M340 or M580 architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXP342020?
The BMXP342020 is a processor module in the Modicon M340 automation platform range from Schneider Electric. It is described by the manufacturer as: Processor module.
What are the key technical ratings of the BMXP342020?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXP342020 mounted or installed?
Installation follows the standard Modicon M340 or M580 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXP342020 compatible with my controller?
It is part of the Modicon M340 or M580 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXP342020?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet
Main
| Range of Product | Modicon M340 automation platform Product or Component Type Processor module Concept Transparent Ready CANopen |
|---|---|
| Number of racks | 4 |
| Number of slots | 11 |
| Discrete I/O processor capacity | 1024 I/O multi-rack configuration 704 I/O single-rack configuration |
| Analogue I/O processor capacity | 256 I/O multi-rack configuration 66 I/O single-rack configuration |
| Number of application specific channel | 36 |
| Monitoring | Diagnostic counters Modbus Event counters Modbus |
Complementary
| Note | Control channels Programmable loops |
|---|---|
| Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex |
| USB port 12 Mbit/s | Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module 4 AS-Interface module embedded communication service |
| Bandwidth management, Ethernet TCP/IP | Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Number of devices per segment | 0…32character mode) 0…32Modbus) |
| Number of devices | 2 point-to-point character mode 2 point-to-point Modbus |
| Bus length | 0…32.8 ft (0…10 m) serial link non isolated character mode segment 0…32.8 ft (0…10 m) serial link non isolated Modbus segment 0…3280.8 ft (0…1000 m) serial link isolated character mode segment 0…3280.8 ft (0…1000 m) serial link isolated Modbus segment 0…49.2 ft (0…15 m) character mode point-to-point 0…49.2 ft (0…15 m) Modbus point-to-point |
| Maximum tap links length | <49.2 ft (15 m) serial link non isolated character mode segment <49.2 ft (15 m) serial link non isolated Modbus segment <131.2 ft (40 m) serial link isolated character mode segment <131.2 ft (40 m) serial link isolated Modbus segment |
| Number of addresses | 0…248 character mode 0…248 Modbus |
| Requests | 1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| Internal RAM 4096 kB | Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 256 kB unlocated internal data 32634 %Mi located internal bits |
| Default size of object areas | 1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits |
| Application structure | 1 cyclic/periodic master task 1 periodic fast task |
| No auxiliary task | 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms fast task 0.7 ms master task |
| Current consumption | 95 mA 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE |
| Status LED | 1 LED (Green) activity on Ethernet network (ETH ACT) 1 LED (Green) processor running (RUN) 1 LED (Green) status of Ethernet network (ETH STS) 1 LED (Red) data rate (ETH 100) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM) |
| Product Weight | 0.452 lb(US) (0.205 kg) |
Environment
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE UL CSA RCM EAC |
| Merchant Navy | N/A |
| Standards | EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 |
| CSA C22.2 No 61010-2-201 | IACS E10 |
| EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
Ordering and shipping details
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 GTIN 3595863910711 |
| Returnability | Yes |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 4.53 in (11.500 cm) |
| Package weight(Lbs) | 8.642 oz (245.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.854 lb(US) (4.016 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 163.707 lb(US) (74.256 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
