BMXP341000
Schneider Electric
Overview

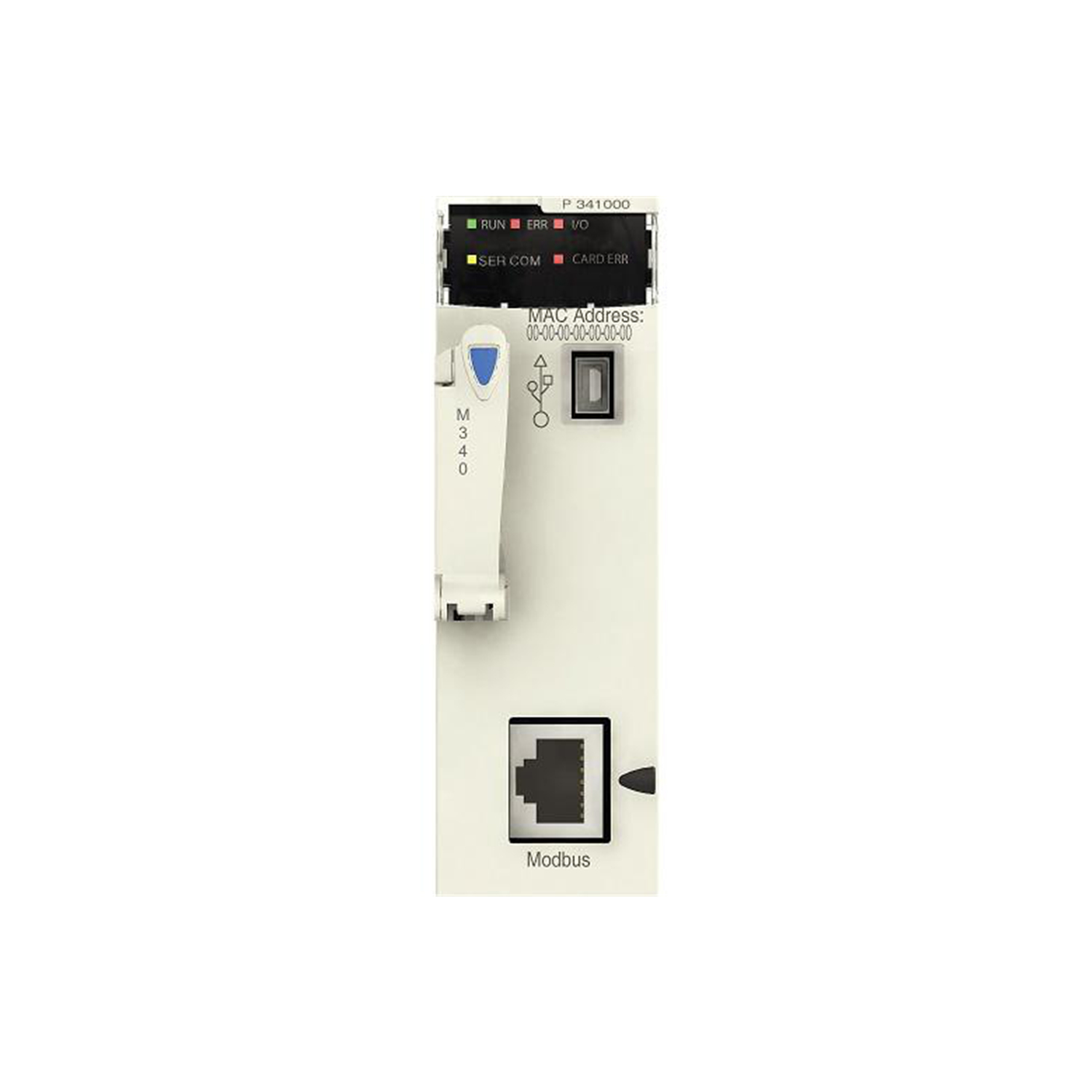

The BMXP341000 is an automation component in the the Schneider Electric automation portfolio range from Schneider Electric. Modicon M340 Standard CPU Module (Level 1).
Application & Technical Notes
As a the schneider electric automation portfolio device, the BMXP341000 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24 V DC (via backplane) rating, an operating temperature range of 0°C to +60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to +60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25°C to +70°C. Avoid condensation — the rated humidity is 5% to 95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXP341000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXP341000?
The BMXP341000 is a the schneider electric automation portfolio device in the the Schneider Electric automation portfolio range from Schneider Electric. It belongs to the the Schneider Electric automation portfolio automation family.
What are the key technical ratings of the BMXP341000?
Its published highlights include 24 V DC (via backplane), operating temperature 0°C to +60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXP341000 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXP341000 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXP341000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Modicon M340 Standard CPU Module (Level 1)
Hardware
| Processor | ARM9 |
|---|---|
| Clock speed | 110 MHz |
| Program memory | 1792 KB (application + symbols + comments) |
| Data memory | 128 KB (data + constants) |
| Internal RAM | 2048 KB total internal RAM |
| Programming software | EcoStruxure Machine Expert (Unity Pro) |
| Scan speed | 5.4 Kinst/ms (100% boolean) / 4.2 Kinst/ms (mixed) |
I/O Capacity
| Discrete I/O (max) | 512 points |
|---|---|
| Analog I/O (max) | 128 points |
| Compatible racks | 4, 6, 8, 12 slots (X80 racks) |
| Local racks | 1 main rack |
| Expansion racks | 1 expansion rack |
Communication
| Built-in ports | 1× Modbus Serial (RJ45, RS232/RS485 non-isolated), 1× USB Mini-B |
|---|---|
| Protocols | Modbus Serial (RTU/ASCII), character mode |
| Communication expansion | Optional X80 communication modules (BMXNOM0200 Modbus serial, BMXNOR0200 CANopen, BMENOC03xx Ethernet/IP, BMXEIA0100 serial) |
Electrical
| Supply voltage | 24 V DC (via backplane) |
|---|---|
| Power consumption | 2.2 W |
| Bus current | 90 mA @ 24 V DC |
Environmental
| Operating temperature | 0°C to +60°C |
|---|---|
| Storage temperature | -25°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
|---|---|
| Weight | 0.200 kg |
Lifecycle
| Lifecycle | Discontinued (End of Sale: 2020-11-01; migrate to M580 or current M340 range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
