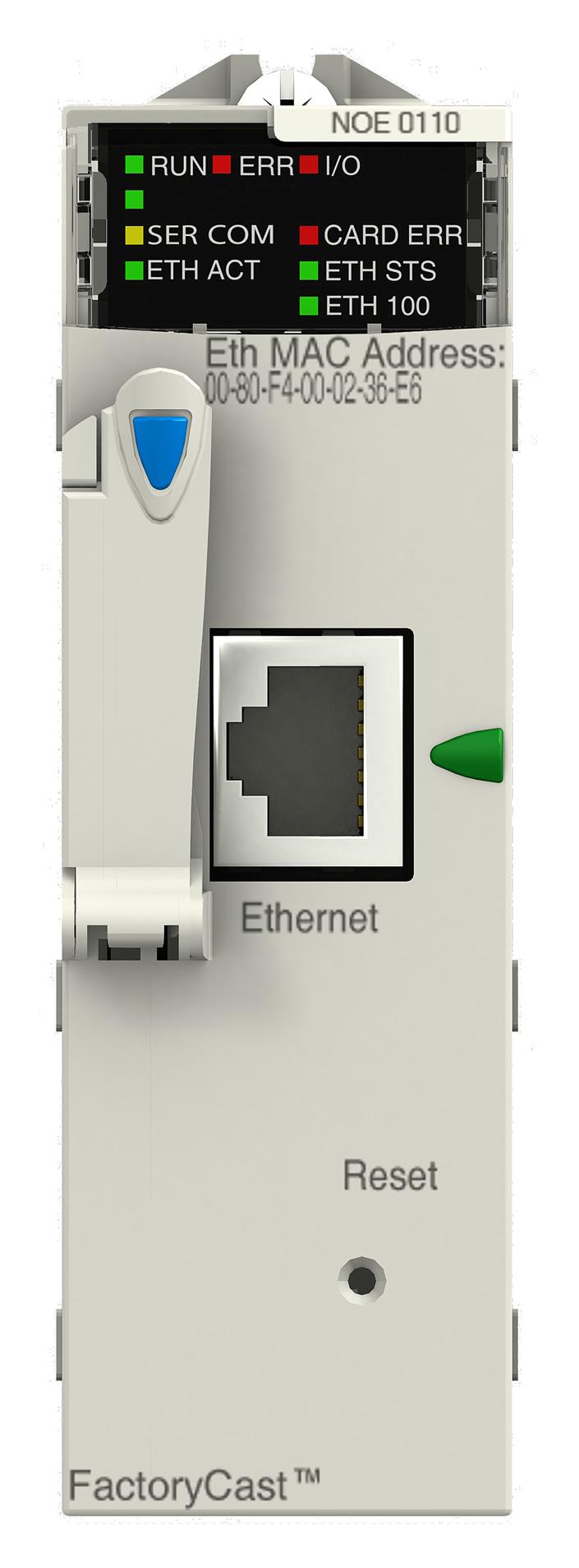

BMXNOE0110H
Schneider Electric
Overview
The BMXNOE0110H is an Ethernet TCP/IP network module in the Modicon M340 automation platform range from Schneider Electric. It extends Modicon M340 or M580 connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet tcp/ip network module, the BMXNOE0110H is intended for deployment in panel-based control cabinets and machine enclosures where Modicon M340 or M580 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of -13…158 °F (-25…70 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-13…158 °F (-25…70 °C)); do not exceed it during commissioning or in enclosed panels without airflow. Avoid condensation — the rated humidity is 10…95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXNOE0110H, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon M340 or M580 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXNOE0110H?
The BMXNOE0110H is an ethernet tcp/ip network module in the Modicon M340 automation platform range from Schneider Electric. It is described by the manufacturer as: Ethernet TCP/IP network module.
What are the key technical ratings of the BMXNOE0110H?
Its published highlights include operating temperature -13…158 °F (-25…70 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXNOE0110H mounted or installed?
Installation follows the standard Modicon M340 or M580 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXNOE0110H compatible with my controller?
It is part of the Modicon M340 or M580 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXNOE0110H?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Ethernet TCP/IP network module, Modicon M340 automation platform, transparent ready class C30 server
Main
| Range of Product | Modicon M340 automation platform Product or Component Type Ethernet TCP/IP network module Product Specific Application For severe environments Concept Transparent Ready |
|---|---|
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | Conformal coating |
Complementary
| Communication service | Bandwidth management FDR server Rack Viewer |
|---|---|
| SNMP network administrator | Global Data I/O scanning Modbus TCP messaging Web server configurable Data Editor (via PC, pocket PC or PDA terminal) SOAP XML Web service (server) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M) Internal RAM 16000 kB |
| Memory usage | User web page size internal RAM Activating the standard web server supplied Flash memory card (BMXRWSC016M) Application saving supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for data rate (ETH 100) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR) |
| Control Type | RESET push-button cold restart |
| Current consumption | 90 mA 24 V DC |
| Module format | Standard |
| Net Weight | 0.4 lb(US) (0.2 kg) |
Environment
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
|---|---|
| Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Product certifications | CE UL CSA RCM EAC |
| Merchant Navy | ATEX zone 2/22 IECEx zone 2/22 |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 |
| CSA C22.2 No 61010-2-201 | IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 |
Ordering and shipping details
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 GTIN 3595864009735 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 4.72 in (12.000 cm) |
| Package weight(Lbs) | 8.677 oz (246.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.499 lb(US) (3.855 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
