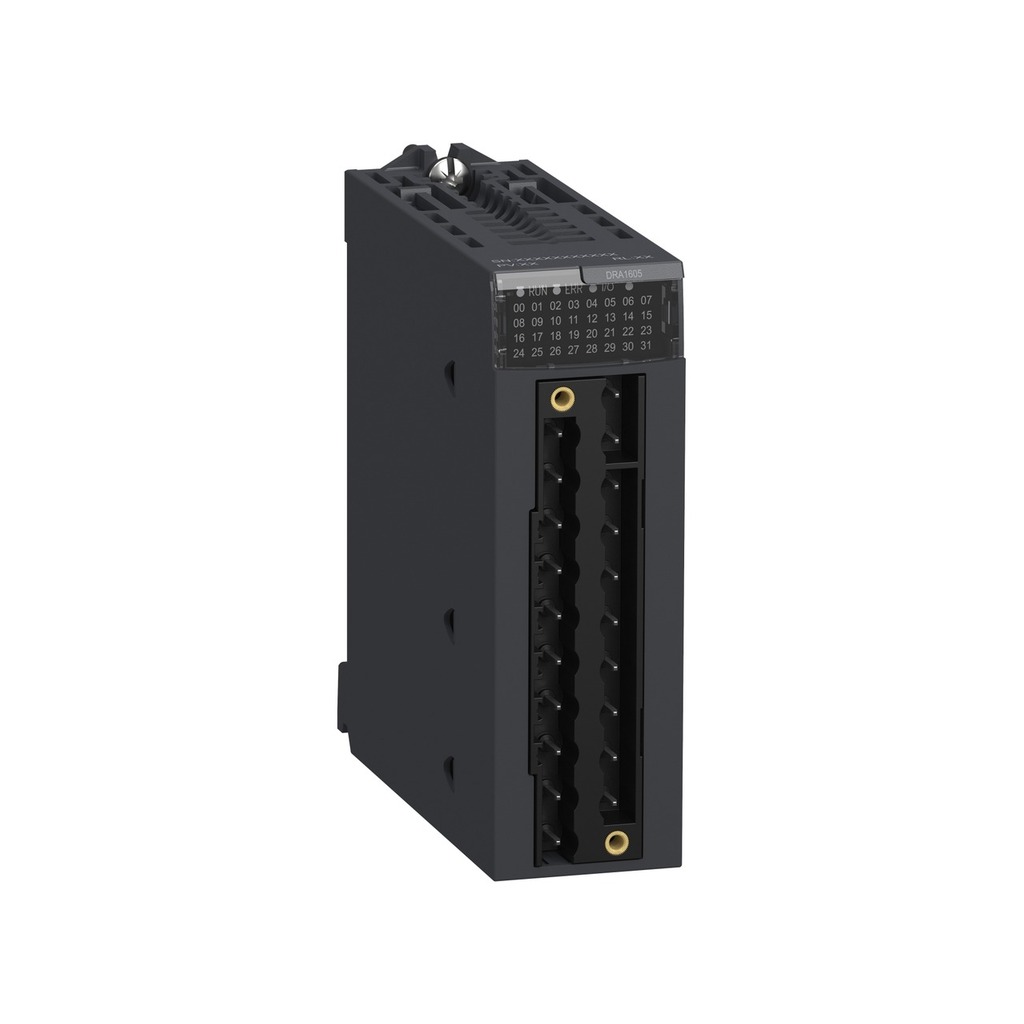

BMXDRA1605
Schneider Electric
Overview
The BMXDRA1605 is a Discrete output module in the Modicon X80 range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a discrete output module, the BMXDRA1605 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…85 °C. Avoid condensation — the rated humidity is 5…95 % at 55 °C without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXDRA1605, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your the Schneider Electric automation portfolio rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXDRA1605?
The BMXDRA1605 is a discrete output module in the Modicon X80 range from Schneider Electric. It is described by the manufacturer as: Discrete output module.
What are the key technical ratings of the BMXDRA1605?
Its published highlights include operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXDRA1605 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXDRA1605 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXDRA1605?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
discrete output module, Modicon X80, 16 NO
Main
| Range of product Modicon X80 | Product or component type Discrete output module Discrete output number 16 conforming to EN/IEC 61131-2 Discrete output type Relay Discrete output voltage 24...48 V 19...60 V DC 24...240 V 19…264 V AC |
|---|
Complementary
| Note | [Ith] conventional free air thermal current 2 A Insulation resistance > 10 MOhm 500 V DC Power dissipation in W 3 W Response time on output < 8 ms activation < 10 ms deactivation Typical current consumption 100 MA at 3.3 V DC 95 MA at 24 V DC MTBF reliability 2100000 H Output overload protection Use 1 fast blow fuse per channel or group of channel Output overvoltage protection Use discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC Output short-circuit protection Use 1 fast blow fuse per channel or group of channel Minimum switching current 1 MA 5 V DC Electrical durability AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7) AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35) AC-12: 100000 cycles at 200 VA 100 V AC-12: 100000 cycles at 80 VA 48 V AC-12: 100000 cycles at 50 VA 24 V AC-15: 100000 cycles at 120 VA 100 V AC-15: 100000 cycles at 120 VA 24 V AC-15: 100000 cycles at 120 VA 48 V DC-12: 100000 cycles at 24 W 24 V DC-13: 100000 cycles at 10 W 24 V DC-13: 100000 cycles at 10 W 48 V AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7) AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35) AC-12: 300000 cycles at 200 VA 200 V AC-12: 300000 cycles at 80 VA 100 V AC-12: 300000 cycles at 50 VA 48 V AC-15: 300000 cycles at 36 VA 100 V AC-15: 300000 cycles at 72 VA 100 V AC-15: 300000 cycles at 36 VA 48 V AC-15: 300000 cycles at 72 VA 48 V AC-15: 300000 cycles at 36 VA 24 V AC-15: 300000 cycles at 72 VA 24 V DC-13: 300000 cycles at 3 W 24 V DC-13: 300000 cycles at 3 W 48 V DC-13: 7000 cycles at 24 W 24 V DC-13: 7000 cycles at 24 W 48 V DC-12: 50000 cycles at 24 W 48 V Status LED 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O Product weight 0.15 Kg |
|---|
Environment
| IP degree of protection IP20 | Dielectric strength 2000 V AC at 50/60 Hz 1 min Vibration resistance 3 gn Shock resistance 30 gn Ambient air temperature for storage -40…85 °C Ambient air temperature for operation 0…60 °C Relative humidity 5…95 % at 55 °C without condensation |
|---|---|
| Operating altitude 0...2000 m | 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 5.300 Cm Package 1 Width 11.000 Cm Package 1 Length 11.500 Cm Package 1 Weight 179.000 G |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
