BMXCRA31210
Schneider Electric
Overview

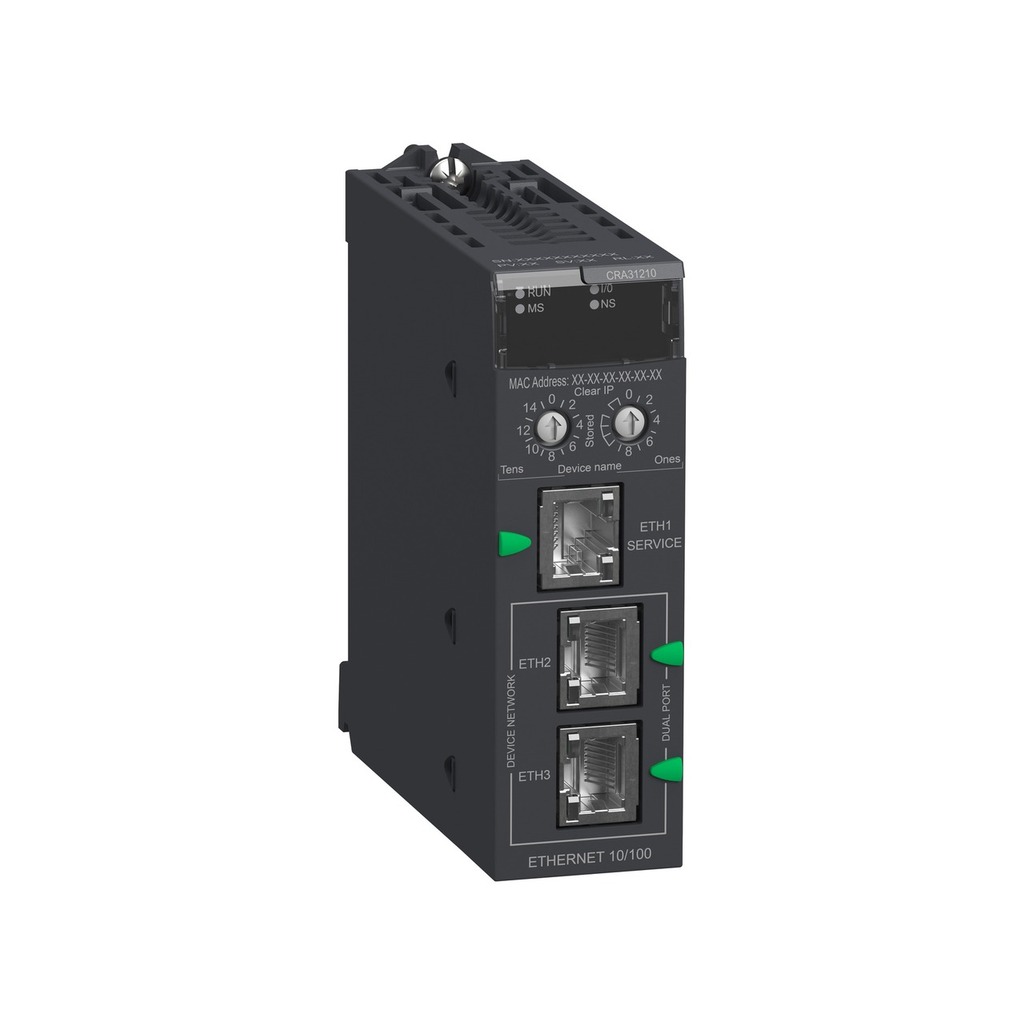

The BMXCRA31210 is an Ethernet Remote I/O drop adapter (CRA = Remote IO Adapter) in the the Schneider Electric automation portfolio range from Schneider Electric. It delivers stable control power at 24 V DC (via backplane) for the Schneider Electric automation portfolio racks.
Application & Technical Notes
As an ethernet remote i/o drop adapter (cra = remote io adapter), the BMXCRA31210 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It conditions and distributes the low-voltage supply that powers the controller, I/O and communication modules on the same rack.
Key published characteristics include a 24 V DC (via backplane) rating, an operating temperature range of 0°C to +60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to +60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25°C to +70°C. Avoid condensation — the rated humidity is 5% to 95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Ensure adequate ventilation and do not overload the supply beyond its published current budget; consider redundancy for critical racks. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMXCRA31210, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the output voltage and current to the the Schneider Electric automation portfolio load and allow headroom for future expansion. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMXCRA31210?
The BMXCRA31210 is an ethernet remote i/o drop adapter (cra = remote io adapter) in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Ethernet Remote I/O drop adapter (CRA = Remote IO Adapter).
What are the key technical ratings of the BMXCRA31210?
Its published highlights include 24 V DC (via backplane), operating temperature 0°C to +60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMXCRA31210 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMXCRA31210 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMXCRA31210?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Modicon X80 Ethernet RIO Drop Adapter for X80 distributed architecture
Communication
| Type | Ethernet Remote I/O drop adapter (CRA = Remote IO Adapter) |
|---|---|
| Built-in ports | 2x Ethernet RJ45 (10/100 Mbps, integrated switch) |
| Protocols | EtherNet/IP, Modbus TCP/IP |
| Function | Adapts an X80 remote rack (drop) to the M340/M580 CPU over the Ethernet RIO network; connects local X80 I/O modules on the drop to the controller |
| Features | Dual Ethernet ports for line/daisy-chain topology and RSTP ring, diagnostic LEDs |
| Slot occupation | 1 slot |
Electrical
| Supply voltage | 24 V DC (via backplane) |
|---|---|
| Power consumption | 4.8 W |
| Bus current | 200 mA @ 24 V DC |
Environmental
| Operating temperature | 0°C to +60°C |
|---|---|
| Storage temperature | -25°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
Physical
| Backplane | X-bus / BMEXBP Ethernet backplane |
|---|---|
| Dimensions (HxWxD) | 100 x 28 x 93 mm |
| Weight | 0.15 kg |
Lifecycle
| Lifecycle | Active (shared I/O platform for M340 and M580) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
