BMEP586040C
Schneider Electric
Overview

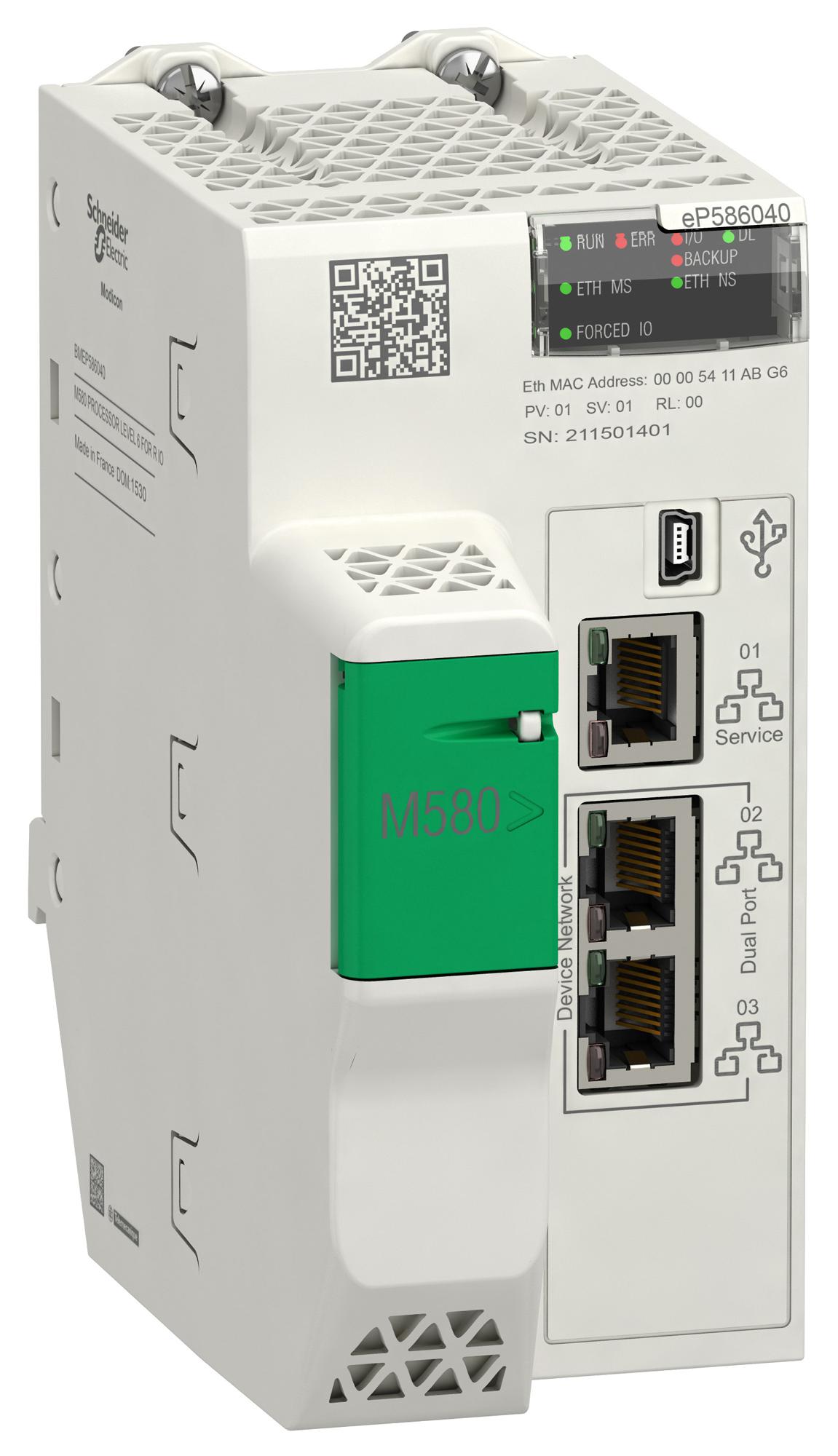

The BMEP586040C is a Processor module in the Modicon M580 range from Schneider Electric. It is engineered for industrial automation duties within the Modicon M340 or M580 ecosystem.
Application & Technical Notes
As a processor module, the BMEP586040C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon M340 or M580 equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of -13…140 °F (-25…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-13…140 °F (-25…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…95 % 131 °F (55 °C) without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMEP586040C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon M340 or M580 architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMEP586040C?
The BMEP586040C is a processor module in the Modicon M580 range from Schneider Electric. It is described by the manufacturer as: Processor module.
What are the key technical ratings of the BMEP586040C?
Its published highlights include operating temperature -13…140 °F (-25…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMEP586040C mounted or installed?
Installation follows the standard Modicon M340 or M580 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMEP586040C compatible with my controller?
It is part of the Modicon M340 or M580 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMEP586040C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
BMEP586040C Main
Complementary
| Number of racks | 8 |
|---|---|
| Local I/O processor capacity (discrete) | 6144 I/O |
| Local I/O processor capacity (analog) | 1536 I/O |
| Number of application specific channel (local rack) | 216 |
| Application specific I/O | Serial link HART Motion control Accurate time stamping SSI encoder Counter |
| Checks | Process control Control channels Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network |
| USB type mini B | N/A |
| Number of remote I/O station | 31 - 2 remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 6 Ethernet communication module 16 AS-Interface module |
| Communication Service | RIO scanner DIO scanner |
| Memory description | Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 64 MB program and data |
| Application structure | 2 auxiliary tasks 1 periodic fast task 128 event tasks 1 cyclic/periodic master task |
| Number of instructions per ms | 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 50 Kinst/ms 100 % Boolean |
| Current consumption | 300 mA 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
Environment
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 30 gn |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Product certifications | CE UL CSA RCM EAC |
| Merchant Navy | ATEX zone 2/22 IECEx zone 2/22 |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 |
| CSA C22.2 No 61010-2-201 | IACS E10 |
| EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (Green) I/O values overrided by user (FORCED IO) |
| Product Weight | 1.872 lb(US) (0.849 kg) |
Ordering and shipping details
| Category | US1PC3418161 |
|---|---|
| Discount Schedule | PC34 GTIN 3606485440064 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.54 in (9.000 cm) |
| Package 1 Width | 7.05 in (17.900 cm) |
| Package 1 Length | 9.92 in (25.200 cm) |
| Package weight(Lbs) | 31.146 oz (883.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 12.732 lb(US) (5.775 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
