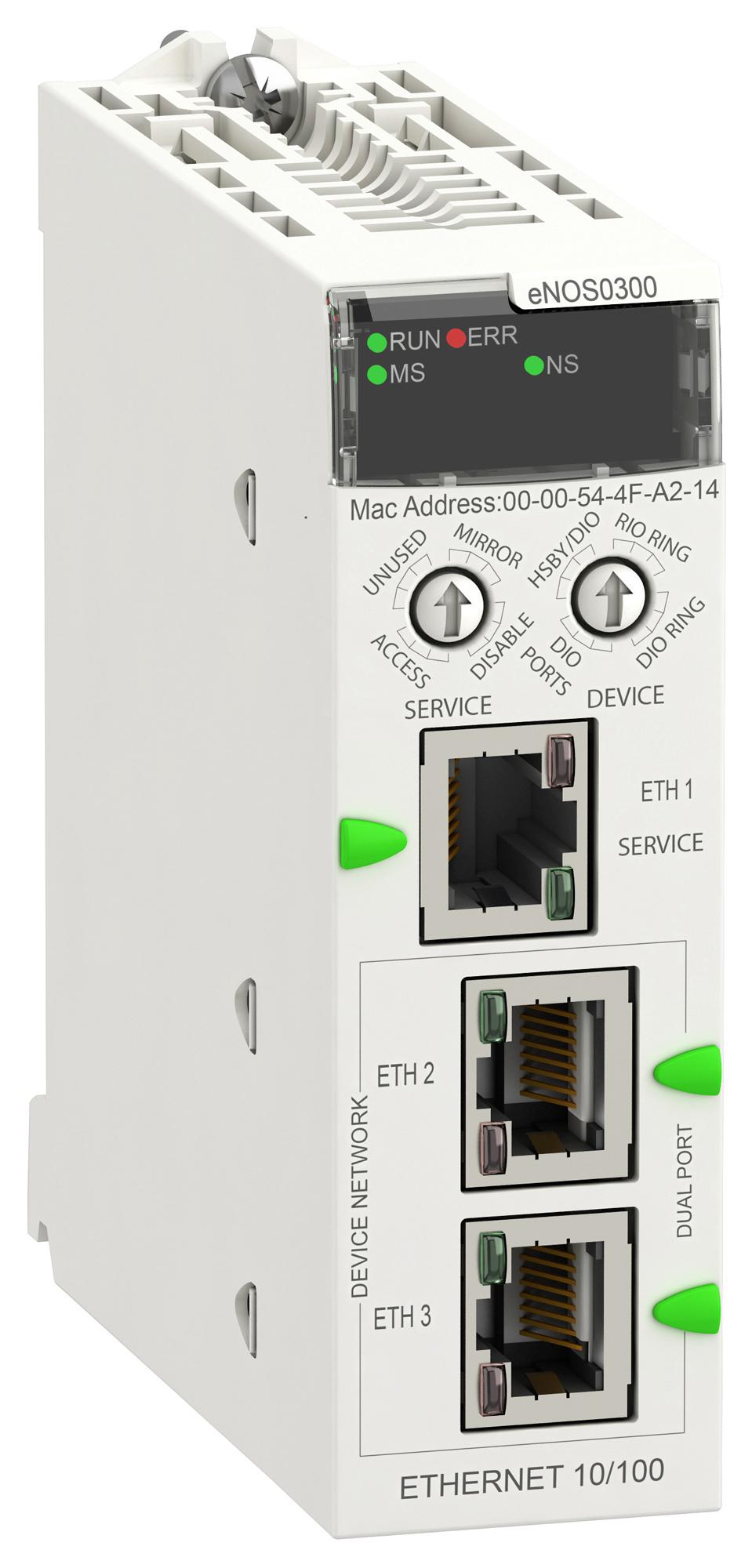

BMENOS0300C
Schneider Electric
Overview
The BMENOS0300C is a Switch module in the Modicon X80 range from Schneider Electric. It is engineered for industrial automation duties within the Modicon M340 or M580 ecosystem.
Application & Technical Notes
As a switch module, the BMENOS0300C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon M340 or M580 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…85 °C. Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMENOS0300C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon M340 or M580 rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMENOS0300C?
The BMENOS0300C is a switch module in the Modicon X80 range from Schneider Electric. It is described by the manufacturer as: Switch module.
What are the key technical ratings of the BMENOS0300C?
Its published highlights include operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMENOS0300C mounted or installed?
Installation follows the standard Modicon M340 or M580 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMENOS0300C compatible with my controller?
It is part of the Modicon M340 or M580 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMENOS0300C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
BMENOS0300C Main
Complementary
| Note | [Us] rated supply voltage 24 V for back plane Power consumption in W 3.3 W at 135 mA 25 °C 4.5 W at 185 mA 60 °C |
|---|---|
| Number of port | 3 |
| Integrated connection type | Ethernet/IP for device network Ethernet/IP for service port Communication port protocol |
| EtherNet/IP | N/A |
| Local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) |
| Module format | Standard |
Environment
| Marking | CE |
|---|---|
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Product certifications | CE UL CSA RCM EAC |
| Merchant Navy | ATEX zone 2/22 IECEx zone 2/22 |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 |
| CSA C22.2 No 61010-2-201 | IACS E10 |
| EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G EN/IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m Maximum altitude transport 3000 m |
| Overvoltage category | II |
| Relative humidity | 95 % without condensation |
| Protective treatment | Conformal coating |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 12.200 cm |
| Package 1 Weight | 264.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.636 kg |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
