BMECXM0100H
Schneider Electric
Overview

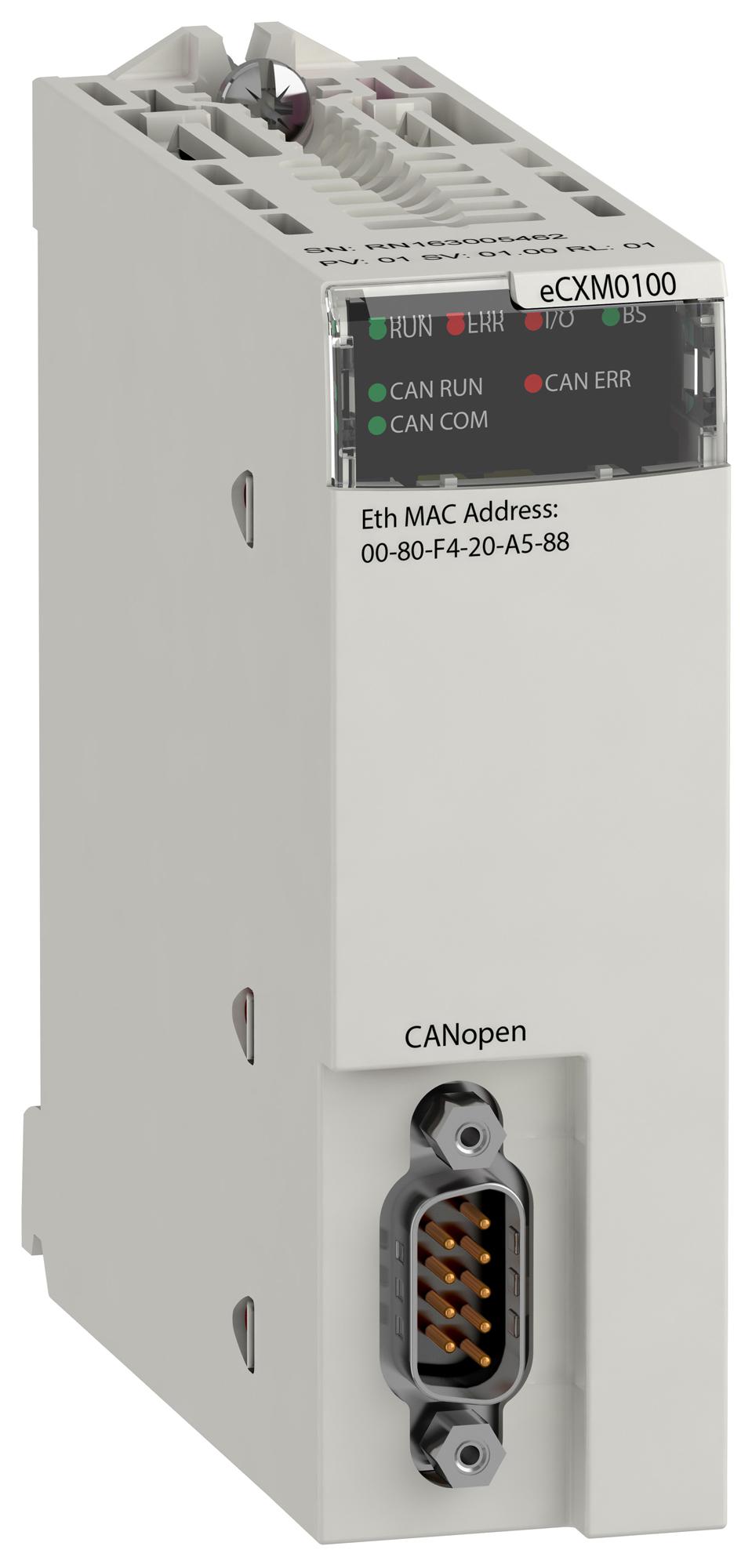

The BMECXM0100H is a CANopen communication module in the Modicon X80 range from Schneider Electric. It extends Modicon M340 or M580 connectivity through its onboard communication interface.
Application & Technical Notes
As a canopen communication module, the BMECXM0100H is intended for deployment in panel-based control cabinets and machine enclosures where Modicon M340 or M580 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of -13…158 °F (-25…70 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-13…158 °F (-25…70 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -49…185 °F (-45…85 °C). Avoid condensation — the rated humidity is 10…95 %; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the BMECXM0100H, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon M340 or M580 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the BMECXM0100H?
The BMECXM0100H is a canopen communication module in the Modicon X80 range from Schneider Electric. It is described by the manufacturer as: CANopen communication module.
What are the key technical ratings of the BMECXM0100H?
Its published highlights include operating temperature -13…158 °F (-25…70 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the BMECXM0100H mounted or installed?
Installation follows the standard Modicon M340 or M580 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the BMECXM0100H compatible with my controller?
It is part of the Modicon M340 or M580 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the BMECXM0100H?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
BMECXM0100H Main
Complementary
| Product Compatibility | M580 PLC Physical interface DB9 connector |
|---|---|
| Mode of Transmission | NRZ |
| Transmission support medium | Profibus DP twisted shielded pairs cable Transmission rate 9.6 kbit/s, 3937.008 ft (1200 m) 19.2 kbit/s, 3937.008 ft (1200 m) 93.75 kbit/s, 3937.008 ft (1200 m) 187.5 kbit/s, 3280.8 ft (1000 m) 500 kbit/s, 1312.3 ft (400 m) 1.5 Mbit/s, 656.2 ft (200 m) 3 Mbit/s, 328.08 ft (100 m) 12 Mbit/s, 328.08 ft (100 m) |
| Number of server device(s) | 63 |
| Communication service | Implicit exchange of process data - 20...70 °C |
| Integrated connection type | Profibus DP - 1 SUB-D 9-pin female Profibus DP [Us] rated supply voltage 24 V DC internal |
| Current consumption | 70 mA |
| Module format | Standard |
Environment
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient Air Temperature for Storage | -49…185 °F (-45…85 °C) |
| Relative Humidity | 10…95 % |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Product certifications | CE UL CSA RCM EAC |
| Merchant Navy | ATEX zone 2/22 IECEx zone 2/22 |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 |
| CSA C22.2 No 61010-2-201 | IACS E10 |
| EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G EN/IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 |
Ordering and shipping details
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 GTIN 3606485407159 |
| Returnability | No |
| Country of origin | CA |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.45 in (11.300 cm) |
| Package 1 Length | 4.65 in (11.800 cm) |
| Package weight(Lbs) | 6.843 oz (194.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 7.130 lb(US) (3.234 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
