ATV71HD30N4
Schneider Electric
Overview

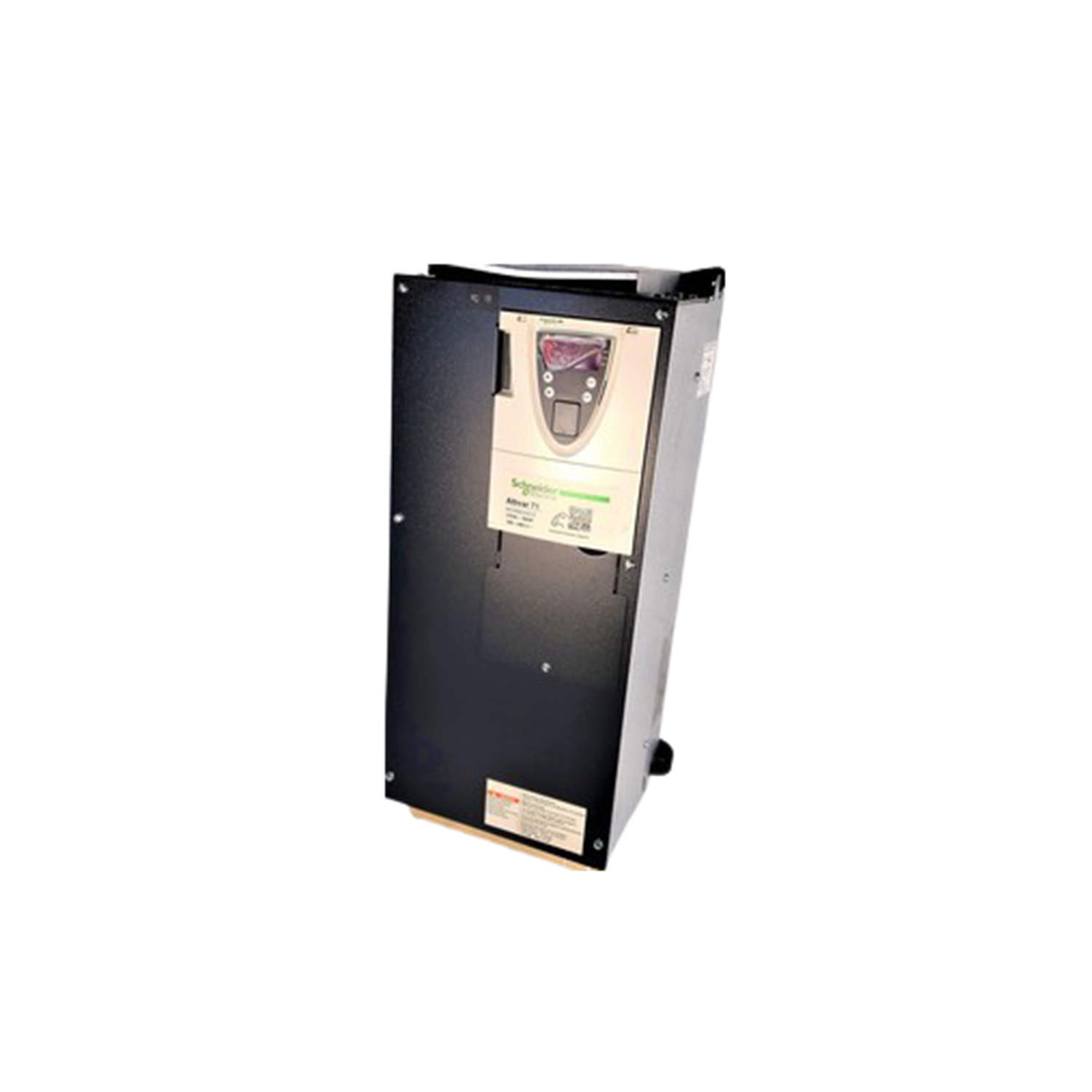

The ATV71HD30N4 is a Variable speed drive in the Altivar 71 range from Schneider Electric. It controls AC motors from a 380...480 V - 15...10 % supply and is configured through the Altivar parameter set.
Application & Technical Notes
As a variable speed drive, the ATV71HD30N4 is intended for deployment in panel-based control cabinets and machine enclosures where Altivar variable speed drive equipment is installed. It regulates the speed, torque and position of an AC motor to match the process demand while protecting the mechanical train.
Key published characteristics include a 380...480 V - 15...10 % rating, an operating temperature range of 14…122 °F (-10…50 °C) (without derating). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (14…122 °F (-10…50 °C) (without derating)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 5…95 % without condensation IEC 60068-2-3; store and operate the module in a dry, pollution-degree-appropriate enclosure. Maintain clearances for cooling, back up the motor parameter file, and verify the thermal setting matches the driven load. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ATV71HD30N4, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the drive rating, supply voltage and motor parameters, and confirm the option cards and communication profile required by the application. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ATV71HD30N4?
The ATV71HD30N4 is a variable speed drive in the Altivar 71 range from Schneider Electric. It is described by the manufacturer as: Variable speed drive.
What are the key technical ratings of the ATV71HD30N4?
Its published highlights include 380...480 V - 15...10 %, operating temperature 14…122 °F (-10…50 °C) (without derating). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ATV71HD30N4 mounted or installed?
Installation follows the standard Altivar variable speed drive mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ATV71HD30N4 compatible with my controller?
It is part of the Altivar variable speed drive family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ATV71HD30N4?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The ATV71HD30N4 from Schneider Electric is a robust variable-speed drive that is adept for industrial applications requiring precise motor control. This unit operates on a 3-phase input voltage of 380 to 480 V AC and supports power outputs of 30 kW or 40 hp, making it versatile for various systems.
Description
| Note | The Schneider Electric ATV71HD30N4 is identified as a variable-speed drive that enhances control in industrial motor applications. With a power rating of 30 kW (40 hp), this drive serves as an efficient solution for varying operational demands. The device operates on a 3-phase electrical supply, with input voltage ratings ranging from 380 to 480 volts AC, accommodating standard industrial environments. This model has an EMC filter, which helps reduce electromagnetic interference and ensures stable operation. A graphic terminal is also part of the design, allowing for straightforward interaction and monitoring of the ATV71HD30N4 drive's performance. It operates effectively within a frequency range of 50 to 60 Hz, aligning with most industrial standards. The ATV71HD30N4 weighs 23.59 kg, contributing to its rugged construction, ideal for demanding applications. It can function within typical operating temperature limits from 0°C to 50°C, ensuring reliability and performance in operational settings, while it can be safely stored at temperatures between -25 and 70°C. The ATV71HD30N4 combines functionality with robust specifications for varied variable speed control needs. |
|---|
Main
| Range of Product | Altivar 71 Product or Component Type Variable speed drive Product Specific Application Complex, high-power machines Component name ATV71 |
|---|---|
| Motor power kW | 30 kW, 3 phase 380...480 V |
| Maximum Horse Power Rating | 40 hp, 3 phase 380...480 V |
| Maximum motor cable length | 328.08 ft (100 m) shielded cable 656.2 ft (200 m) unshielded cable power supply voltage 380...480 V - 15...10 % |
| Phase | 3 phase |
| Line current | 56 A 480 V 3 phase 30 kW / 40 hp 66 A 380 V 3 phase 30 kW / 40 hp |
| EMC filter | Integrated Assembly style With heat sink Apparent power 43.4 kVA 380 V 3 phase 30 kW / 40 hp |
| Prospective line Isc | 22 kA 3 phase |
| Nominal output current | 52 A 4 kHz 460 V 3 phase 30 kW / 40 hp 66 A 4 kHz 380 V 3 phase 30 kW / 40 hp |
| Maximum transient current | 109 A 2 s 3 phase 30 kW / 40 hp 99 A 60 s 3 phase 30 kW / 40 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable 4...16 kHz with derating factor |
| Asynchronous motor control profile | Sensorless flux vector control (SFVC) (voltage or current vector) Voltage/frequency ratio (2 or 5 points) |
| Flux vector control (FVC) with sensor (current vector) | ENA (Energy adaptation) system for unbalanced loads Type of polarization No impedance Modbus |
Complementary
| Product destination | Asynchronous motors Synchronous motors power supply voltage limits 323…528 V power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz |
|---|---|
| Speed range | 1…100 asynchronous motor in open-loop mode, without speed feedback 1…1000 asynchronous motor in closed-loop mode with encoder feedback 1…50 synchronous motor in open-loop mode, without speed feedback |
| Speed accuracy | +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn |
| Torque accuracy | +/- 15 % in open-loop mode, without speed feedback +/- 5 % in closed-loop mode with encoder feedback |
| Transient overtorque | 170 % +/- 10 % 60 s every 10 minutes 220 % +/- 10 % 2 s |
| Braking torque | <= 150 % with braking or hoist resistor 30 % without braking resistor |
| Synchronous motor control profile | Vector control without speed feedback Regulation loop Adjustable PI regulator Motor slip compensation Suppressable Adjustable Not available in voltage/frequency ratio (2 or 5 points) Automatic whatever the load diagnostic 1 LED (red) for drive voltage |
| Output voltage | <= power supply voltage |
| Insulation | Electrical between power and control type of cable for mounting in an enclosure With a NEMA Type1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Electrical connection | Terminal 2.5 mm², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal 50 mm², AWG 1/0 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Tightening torque | 5.3 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) 106.2 lbf.in (12 N.m), 102.2 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 mA overload and short-circuit protection |
| Analogue input number | 2 |
| Analogue input type | AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign |
| AI2 software-configurable current 0...20 mA 242 Ohm 11 bits | AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits input sampling time 2 ms +/- 0.5 ms AI1-/Al1+) - analog 2 ms +/- 0.5 ms Al2) - analog 2 ms +/- 0.5 ms LI1...LI5) - discrete 2 ms +/- 0.5 ms LI6)if configured as logic input - discrete |
| Response time | <= 100 ms in STO (Safe Torque Off) |
| AO1 2 ms +/- 0.5 ms analog | R1A, R1B, R1C 7 ms +/- 0.5 ms discrete R2A, R2B 7 ms +/- 0.5 ms discrete absolute accuracy precision +/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C +/- 0.6 % AI2) for a temperature variation 60 °C +/- 1 % AO1) for a temperature variation 60 °C |
| Linearity error | +/- 0.15 % of maximum value AI1-/Al1+, AI2) +/- 0.2 % AO1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable logic output 10 V 20 mA AO1 software-configurable current 0...20 mA 500 Ohm 10 bits AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits |
| Discrete output number | 2 |
| Discrete output type | Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles |
| Configurable relay logic R2A, R2B) NO - 100000 cycles | Minimum switching current 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 R1, R2 2 A 30 V DC inductive, cos phi = 0.4 R1, R2 5 A 250 V AC resistive, cos phi = 1 R1, R2 5 A 30 V DC resistive, cos phi = 1 Discrete input number 7 |
| Discrete input type | LI1...LI5 programmable 24 V DC level 1 PLC 3500 Ohm LI6 switch-configurable 24 V DC level 1 PLC 3500 Ohm LI6 switch-configurable PTC probe 0…6 1500 Ohm PWR safety input 24 V DC 1500 Ohm ISO 13849-1 level d Discrete input logic Negative logic (sink) LI1...LI5), > 16 V, < 10 V Positive logic (source) LI1...LI5), < 5 V, > 11 V Negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V Positive logic (source) LI6)if configured as logic input, < 5 V, > 11 V |
| Acceleration and deceleration ramps | N/A |
| Linear adjustable separately from 0.01 to 9000 s | Automatic adaptation of ramp if braking capacity exceeded, by using resistor S, U or customized |
| Braking to standstill | By DC injection |
| Protection type | Against exceeding limit speed drive Against input phase loss drive Break on the control circuit drive Input phase breaks drive Line supply overvoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Overvoltages on the DC bus drive Short-circuit between motor phases drive Thermal protection drive Motor phase break motor Power removal motor Thermal protection motor Insulation resistance > 1 mOhm 500 V DC for 1 minute to earth |
| Frequency resolution | Analog input 0.024/50 Hz Display unit 0.1 Hz Communication Port Protocol Modbus CANopen Connector type 1 RJ45 on front face)Modbus 1 RJ45 on terminal)Modbus |
| Male SUB-D 9 on RJ45CANopen | Physical interface 2-wire RS 485 Modbus |
| Transmission frame | RTU Modbus Transmission rate 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal 9600 bps, 19200 bps Modbus on front face 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen |
| Data format | 8 bits, 1 stop, even parity Modbus on front face 8 bits, odd even or no configurable parity Modbus on terminal |
| Number of addresses | 1…127 CANopen 1…247 Modbus |
| Method of access | Slave CANopen |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 21.7 in (550 mm) |
| Depth | 10.5 in (266 mm) |
| Width | 9.4 in (240 mm) |
| Net Weight | 81.6 lb(US) (37 kg) |
| Functionality | Full Specific application Other applications Option card Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Interface card for encoder Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Overhead crane card Communication card Profibus DP Communication card Profibus DP V1 |
Environment
| Noise level | 64 dB 86/188/EEC |
|---|---|
| Dielectric strength | 3535 V DC between earth and power terminals 5092 V DC between control and power terminals |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Standards | IEC 61800-3 environments 1 category C3 IEC 61800-5-1 IEC 60721-3-3 class 3S2 UL Type 1 IEC 60721-3-3 class 3C1 EN 55011 class A group 2 IEC 61800-3 IEC 61800-3 environments 2 category C3 |
| Product Certifications | GOST NOM 117 UL |
| C-tick | CSA |
| Pollution degree | 2 IEC 61800-5-1 3 UL 840 |
| IP degree of protection | IP20 |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation IEC 60068-2-3 5…95 % without dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) (without derating) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
Ordering and shipping details
| Category | US1CP4C22131 |
|---|---|
| Discount Schedule | CP4C GTIN 3389118069510 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 16.1 in (41.0 cm) |
| Package 1 Width | 15.4 in (39.2 cm) |
| Package 1 Length | 27.2 in (69.2 cm) |
| Package weight(Lbs) | 26.5 lb(US) (12.0 kg) |
