ATV61HC11N4
Schneider Electric
Overview

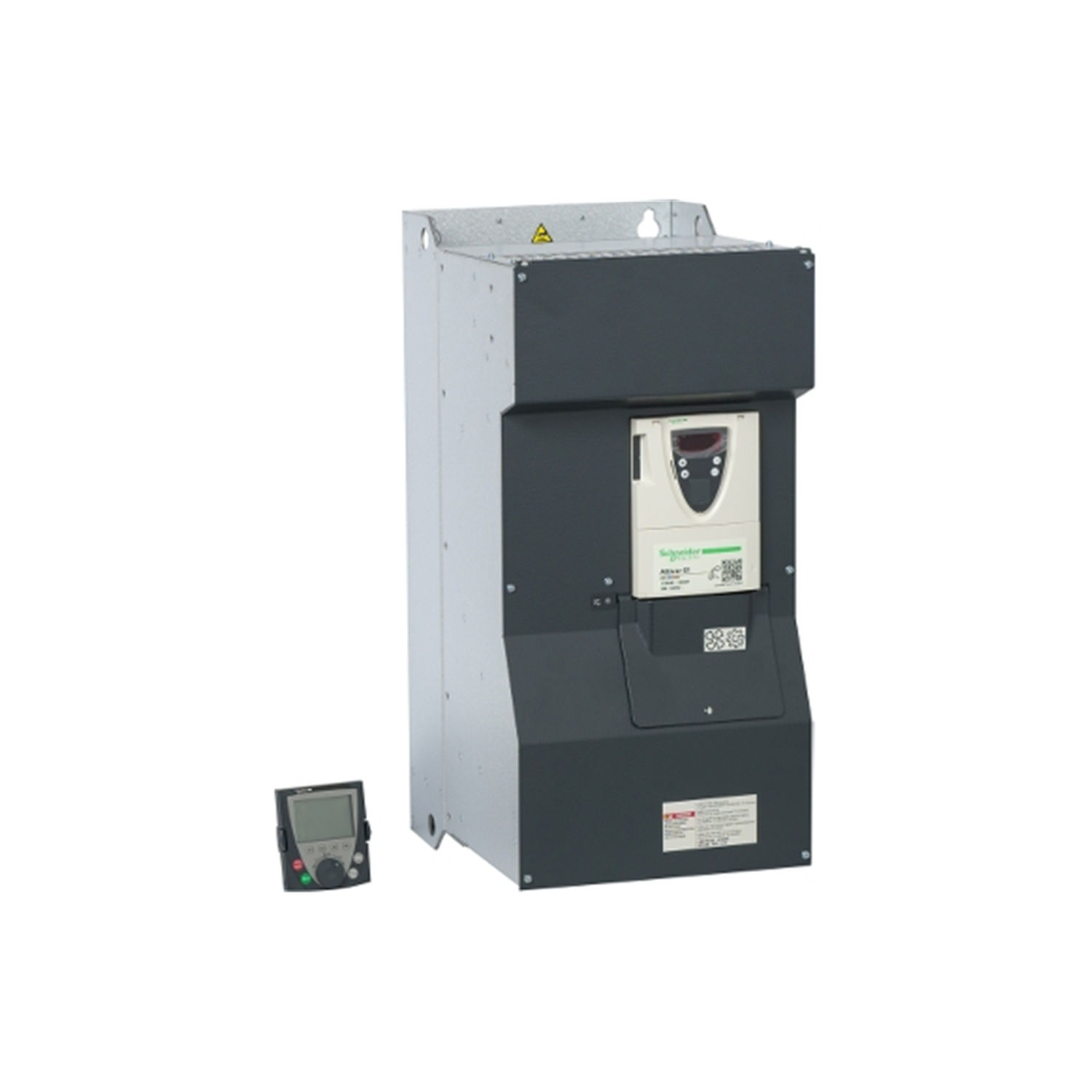

The ATV61HC11N4 is a Variable speed drive in the Altivar 61 range from Schneider Electric. It controls AC motors from a 380...480 V - 15...10 % supply and is configured through the Altivar parameter set.
Application & Technical Notes
As a variable speed drive, the ATV61HC11N4 is intended for deployment in panel-based control cabinets and machine enclosures where Altivar variable speed drive equipment is installed. It regulates the speed, torque and position of an AC motor to match the process demand while protecting the mechanical train.
Key published characteristics include a 380...480 V - 15...10 % rating, an operating temperature range of 14…113 °F (-10…45 °C) (without derating). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (14…113 °F (-10…45 °C) (without derating)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 5…95 % without condensation IEC 60068-2-3; store and operate the module in a dry, pollution-degree-appropriate enclosure. Maintain clearances for cooling, back up the motor parameter file, and verify the thermal setting matches the driven load. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ATV61HC11N4, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the drive rating, supply voltage and motor parameters, and confirm the option cards and communication profile required by the application. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ATV61HC11N4?
The ATV61HC11N4 is a variable speed drive in the Altivar 61 range from Schneider Electric. It is described by the manufacturer as: Variable speed drive.
What are the key technical ratings of the ATV61HC11N4?
Its published highlights include 380...480 V - 15...10 %, operating temperature 14…113 °F (-10…45 °C) (without derating). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ATV61HC11N4 mounted or installed?
Installation follows the standard Altivar variable speed drive mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ATV61HC11N4 compatible with my controller?
It is part of the Altivar variable speed drive family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ATV61HC11N4?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
SPEED DRIVE 150 HP 460 V ATV61
Main
| Range of Product | Altivar 61 Product or Component Type Variable speed drive Product Specific Application Pumping and ventilation machine Component name ATV61 |
|---|---|
| Motor power kW | 110 kW, 3 phase 380...480 V |
| Maximum Horse Power Rating | 150 hp, 3 phase 380...480 V power supply voltage 380...480 V - 15...10 % supply number of phases 3 phase |
| Line current | 168 A 480 V 3 phase 110 kW / 150 hp 202 A 380 V 3 phase 110 kW / 150 hp |
| EMC filter | Level 3 EMC filter Assembly style With heat sink Apparent power 133 kVA 380 V 3 phase 110 kW / 150 hp maximum prospective line Isc 35 kA 3 phase |
| Maximum transient current | 258 A 60 s, 3 phase |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2...8 kHz adjustable 2.5...8 kHz with derating factor asynchronous motor control Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points Flux vector control without sensor, standard |
| Synchronous motor control profile | Vector control without sensor, standard Communication Port Protocol Modbus CANopen Type of polarization No impedance Modbus Option card Communication card APOGEE FLN Communication card BACnet Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Communication card LonWorks Communication card METASYS N2 Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Multi-pump card Communication card Profibus DP Communication card Profibus DP V1 |
Complementary
| Product destination | Asynchronous motors Synchronous motors power supply voltage limits 323…528 V power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz Continuous output current 215 A 2.5 kHz, 380 V - 3 phase 215 A 2.5 kHz, 460 V - 3 phase |
|---|---|
| Output frequency | 0.1…500 Hz |
| Speed range | 1…100 in open-loop mode, without speed feedback |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback |
| Torque accuracy | +/- 15 % in open-loop mode, without speed feedback |
| Transient overtorque | 130 % of nominal motor torque +/- 10 % 60 s |
| Braking torque | <= 125 % with braking resistor 30 % without braking resistor Regulation loop Frequency PI regulator Motor slip compensation Adjustable Not available in voltage/frequency ratio (2 or 5 points) Automatic whatever the load Can be suppressed diagnostic 1 LED (red) for drive voltage |
| Output voltage | <= power supply voltage electrical isolation Between power and control terminals type of cable for mounting in an enclosure With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Electrical connection | Terminal 2.5 mm² / AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal 2 x 100 mm² / 2 x 250 kcmil L1/R, L2/S, L3/T, U/T1, V/T2, W/T3) Terminal 60 mm² / 250 kcmil PA, PB) Terminal 2 x 100 mm² / 2 x 250 kcmil PC/-, PO, PA/+) |
| Tightening torque | 5.3 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) 212.4 lbf.in (24 N.m), 212 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3) 362.9 lbf.in (41 N.m), 360 lb.in PC/-, PO, PA/+) 106.2 lbf.in (12 N.m), 106 lb.in PA, PB) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC, +/- 5 %, <10 mA overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 mA overload and short-circuit protection External supply 24 V DC 19…30 V) |
| Analogue input number | 2 |
| Analogue input type | AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign |
| AI2 software-configurable current 0...20 mA 242 Ohm 11 bits | AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits sampling time 2 ms +/- 0.5 ms AI1-/Al1+) - analog input 2 ms +/- 0.5 ms Al2) - analog input 2 ms +/- 0.5 ms AO1) - analog output 2 ms +/- 0.5 ms LI1...LI5) - discrete input 2 ms +/- 0.5 ms LI6)if configured as logic input - discrete input absolute accuracy precision +/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C +/- 0.6 % AI2) for a temperature variation 60 °C +/- 1 % AO1) for a temperature variation 60 °C |
| Linearity error | +/- 0.15 % of maximum value AI1-/Al1+) +/- 0.15 % of maximum value AI2) +/- 0.2 % AO1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable current 0...20 mA 500 Ohm 10 bits AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits AO1 software-configurable logic output 10 V, 20 mA |
| Discrete output number | 2 |
| Discrete output type | Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles |
| Configurable relay logic R2A, R2B) NO - 100000 cycles | maximum response time <= 100 ms in STO (Safe Torque Off) R1A, R1B, R1C <= 7 ms +/- 0.5 ms R2A, R2B <= 7 ms +/- 0.5 ms Minimum switching current 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms Discrete input number 7 |
| Discrete input type | Programmable LI1...LI5) 24 V DC <= 30 V)level 1 PLC - 3500 Ohm Switch-configurable LI6) 24 V DC <= 30 V)level 1 PLC - 3500 Ohm Switch-configurable PTC probe LI6)0…6 - 1500 Ohm Safety input PWR) 24 V DC <= 30 V) - 1500 Ohm Discrete input logic Negative logic (sink) LI1...LI5), > 16 V, < 10 V Positive logic (source) LI1...LI5), < 5 V, > 11 V Negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V Positive logic (source) LI6)if configured as logic input, < 5 V, > 11 V |
| Acceleration and deceleration ramps | Automatic adaptation of ramp if braking capacity exceeded, by using resistor |
| Linear adjustable separately from 0.01 to 9000 s | S, U or customized |
| Braking to standstill | By DC injection |
| Protection type | Against exceeding limit speed drive Against input phase loss drive Break on the control circuit drive Input phase breaks drive Line supply overvoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Overvoltages on the DC bus drive Power removal drive Short-circuit between motor phases drive Thermal protection drive Motor phase break motor Power removal motor Thermal protection motor Insulation resistance > 1 mOhm 500 V DC for 1 minute to earth |
| Frequency resolution | Analog input 0.024/50 Hz Display unit 0.1 Hz Connector type 1 RJ45 on front face)Modbus 1 RJ45 on terminal)Modbus |
| Male SUB-D 9 on RJ45CANopen | Physical interface 2-wire RS 485 Modbus |
| Transmission frame | RTU Modbus Transmission rate 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal 9600 bps, 19200 bps Modbus on front face 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen |
| Data format | 8 bits, 1 stop, even parity Modbus on front face 8 bits, odd even or no configurable parity Modbus on terminal |
| Number of addresses | 1…127 CANopen 1…247 Modbus |
| Method of access | Slave CANopen |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Net Weight | 185.2 lb(US) (84 kg) |
| Width | 12.6 in (320 mm) |
| Height | 36.2 in (920 mm) |
| Depth | 14.8 in (377 mm) |
Environment
| Noise level | 60.5 dB 86/188/EEC |
|---|---|
| Dielectric strength | 3535 V DC between earth and power terminals 5092 V DC between control and power terminals |
| Electromagnetic compatibility | Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Standards | IEC 60721-3-3 class 3C2 EN 61800-3 environments 2 category C3 EN/IEC 61800-5-1 EN 61800-3 environments 1 category C3 EN 55011 class A group 2 UL Type 1 EN/IEC 61800-3 |
| Product Certifications | GOST CSA |
| C-tick | NOM 117 DNV UL |
| Pollution degree | 3 EN/IEC 61800-5-1 3 UL 840 degree of proctection |
| IP41 on upper part EN/IEC 60529 | IP41 on upper part EN/IEC 61800-5-1 IP54 on lower part EN/IEC 60529 IP54 on lower part EN/IEC 61800-5-1 IP00 EN/IEC 60529 IP00 EN/IEC 61800-5-1 IP30 on side parts EN/IEC 60529 IP30 on side parts EN/IEC 61800-5-1 IP30 on the front panel EN/IEC 60529 IP30 on the front panel EN/IEC 61800-5-1 |
| Vibration resistance | 0.6 gn (f= 10…200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…10 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 7 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation IEC 60068-2-3 5…95 % without dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 14…113 °F (-10…45 °C) (without derating) 113…140 °F (45…60 °C) (with derating factor) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
Ordering and shipping details
| Category | US1CP4C22138 |
|---|---|
| Discount Schedule | CP4C GTIN 3389118080614 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 20.866 in (53.000 cm) |
| Package 1 Width | 16.142 in (41.000 cm) |
| Package 1 Length | 48.228 in (122.500 cm) |
| Package weight(Lbs) | 253.532 lb(US) (115.000 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
