ATV320U55N4C
Schneider Electric
Overview

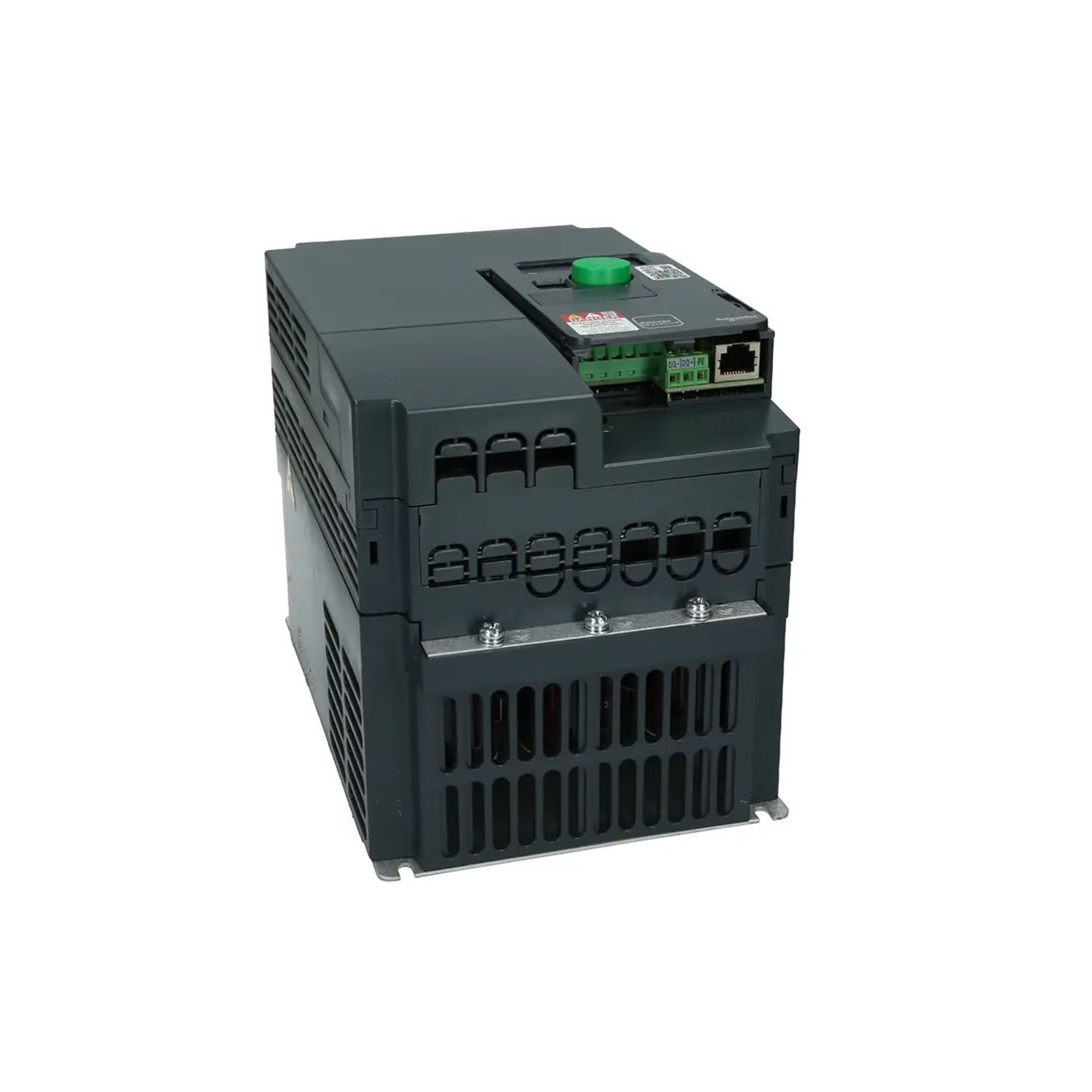

The ATV320U55N4C is a Variable speed drive in the Altivar Machine ATV320 range from Schneider Electric. It is engineered for industrial automation duties within the Altivar variable speed drive ecosystem.
Application & Technical Notes
As a variable speed drive, the ATV320U55N4C is intended for deployment in panel-based control cabinets and machine enclosures where Altivar variable speed drive equipment is installed. It regulates the speed, torque and position of an AC motor to match the process demand while protecting the mechanical train.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Maintain clearances for cooling, back up the motor parameter file, and verify the thermal setting matches the driven load. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ATV320U55N4C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the drive rating, supply voltage and motor parameters, and confirm the option cards and communication profile required by the application. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ATV320U55N4C?
The ATV320U55N4C is a variable speed drive in the Altivar Machine ATV320 range from Schneider Electric. It is described by the manufacturer as: Variable speed drive.
What are the key technical ratings of the ATV320U55N4C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the ATV320U55N4C mounted or installed?
Installation follows the standard Altivar variable speed drive mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ATV320U55N4C compatible with my controller?
It is part of the Altivar variable speed drive family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ATV320U55N4C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Variable speed drive, Altivar
Main
| Note | Range of product Altivar Machine ATV320 Product or component type Variable speed drive Product specific application Complex machines Variant Standard version Format of the drive Compact Mounting mode Wall mount Communication port protocol Modbus serial CANopen Option card Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet [Us] rated supply voltage 380...500 V - 15...10 % Nominal output current 14.3 A Motor power kW 5.5 kW for heavy duty EMC filter Integrated |
|---|---|
| IP degree of protection IP20 | N/A |
Complementary
| Note | Discrete input number 7 Discrete input type STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) Discrete input logic Positive logic (source) Negative logic (sink) Discrete output number 3 Discrete output type Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA Analogue input number 3 Analogue input type AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits Analogue output number 1 Analogue output type Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Relay output type Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C Maximum switching current Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC Minimum switching current Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC Method of access Slave CANopen 4 quadrant operation possible True Asynchronous motor control profile Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points Synchronous motor control profile Vector control without sensor Transient overtorque 170…200 % of nominal motor torque Maximum output frequency 0.599 kHz Acceleration and deceleration ramps Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection Motor slip compensation Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) Switching frequency 2...16 kHz adjustable 4...16 kHz with derating factor Nominal switching frequency 4 kHz Braking to standstill By DC injection Brake chopper integrated True Line current 20.7 A at 380 V (heavy duty) 14.5 A at 500 V (heavy duty) Maximum input current 20.7 A Maximum output voltage 500 V Apparent power 12.6 kVA at 500 V (heavy duty) Network frequency 50...60 Hz Relative symmetric network frequency tolerance 5 % Prospective line Isc 22 kA Base load current at high overload 14.3 A Power dissipation in W Fan: 195.0 W at 380 V, switching frequency 4 kHz With safety function Safely Limited Speed (SLS) True With safety function Safe brake management (SBC/SBT) False With safety function Safe Operating Stop (SOS) False With safety function Safe Position (SP) False With safety function Safe programmable logic False With safety function Safe Speed Monitor (SSM) False With safety function Safe Stop 1 (SS1) True With sft fct Safe Stop 2 (SS2) False With safety function Safe torque off (STO) True With safety function Safely Limited Position (SLP) False With safety function Safe Direction (SDI) False Protection type Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive Width 150 mm Height 232.0 mm Depth 178.0 mm Net weight 3.5 kg |
|---|
Environment
| Note | Operating position Vertical +/- 10 degree Product certifications CE ATEX NOM GOST EAC RCM KC |
|---|---|
| Marking CE | ATEX UL CSA EAC RCM Standards IEC 61800-5-1 Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Environmental class (during operation) Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz Permitted relative humidity (during operation) Class 3K5 according to EN 60721-3 Volume of cooling air 60 m3/h |
| Overvoltage category III | Regulation loop Adjustable PID regulator Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn Pollution degree 2 Ambient air transport temperature -25…70 °C |
| Ambient air temperature for | operation -10…50 °C without derating 50…60 °C with derating factor |
| Ambient air temperature for | storage -25…70 °C |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 19.500 cm Package 1 Width 22.500 cm Package 1 Length 33.000 cm Package 1 Weight 4.696 kg |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
