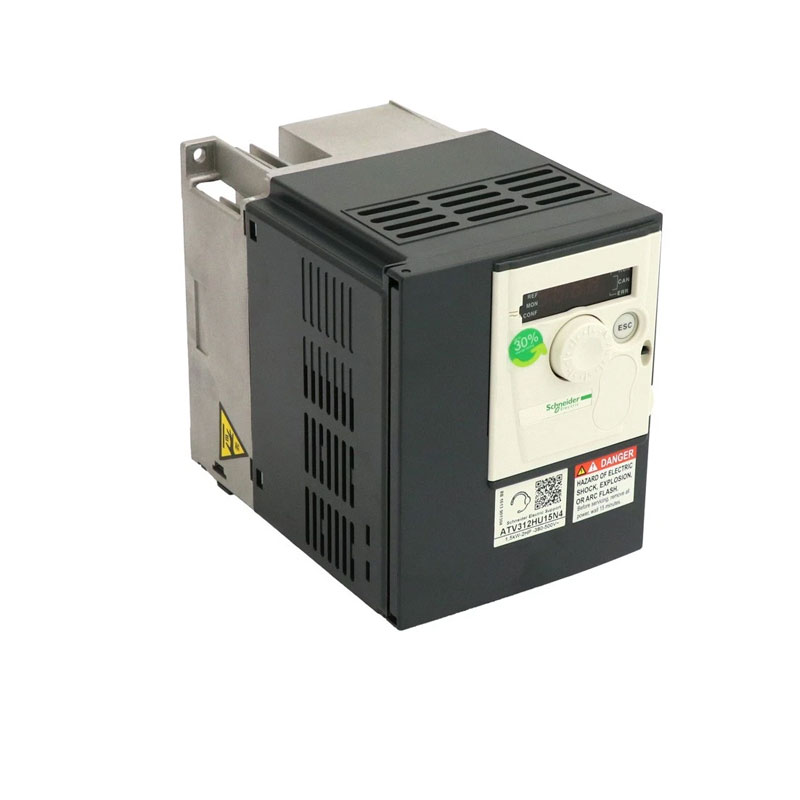

ATV312HU15N4
Schneider Electric
Overview
The ATV312HU15N4 is a Variable speed drive in the Altivar 312 range from Schneider Electric. It controls AC motors from a 380–500 V, ±15–10% supply and is configured through the Altivar parameter set.
Application & Technical Notes
As a variable speed drive, the ATV312HU15N4 is intended for deployment in panel-based control cabinets and machine enclosures where Altivar variable speed drive equipment is installed. It regulates the speed, torque and position of an AC motor to match the process demand while protecting the mechanical train.
Key published characteristics include a 380–500 V, ±15–10% rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 5…95 % without condensation IEC 60068-2-3; store and operate the module in a dry, pollution-degree-appropriate enclosure. Maintain clearances for cooling, back up the motor parameter file, and verify the thermal setting matches the driven load. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ATV312HU15N4, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the drive rating, supply voltage and motor parameters, and confirm the option cards and communication profile required by the application. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ATV312HU15N4?
The ATV312HU15N4 is a variable speed drive in the Altivar 312 range from Schneider Electric. It is described by the manufacturer as: Variable speed drive.
What are the key technical ratings of the ATV312HU15N4?
Its published highlights include 380–500 V, ±15–10%. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ATV312HU15N4 mounted or installed?
Installation follows the standard Altivar variable speed drive mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ATV312HU15N4 compatible with my controller?
It is part of the Altivar variable speed drive family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ATV312HU15N4?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Schneider Electric ATV312HU15N4 variable speed drive, ATV312, 2 HP, 4.2 kVA, 61 W, 380 to 500 V 3 phase supply
Main
| Product destination | Asynchronous motors Component name ATV312 |
|---|---|
| Motor power kW | 1.5 kW |
| Maximum Horse Power Rating | 2 hp |
| Supply frequency | 50...60 Hz - 5...5 % |
| Phase | 3 phase |
| Line current | 6.4 A 380 V, Isc = 5 kA 4.8 A 500 V Apparent power 4.2 kVA |
| Maximum transient current | 6.2 A 60 s |
| Power dissipation in W | 61 W at nominal load |
| Speed range | 1…50 |
| Electrical connection | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0.004 in² (2.5 mm²) AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.008 in² (5 mm²) AWG 10 |
| Supply | Internal supply for logic inputs 19...30 V 100 mA overload and short-circuit protection Internal supply for reference potentiometer (2.2 to 10 kOhm) 10...10.8 V 10 mA overload and short-circuit protection |
| IP degree of protection | IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part Option card Communication card CANopen daisy chain Communication card DeviceNet Communication card Fipio Communication card Modbus TCP Communication card Profibus DP |
| Range of Product | Altivar 312 Product or Component Type Variable speed drive Product Specific Application Simple machine Communication Port Protocol Modbus CANopen [Us] rated supply voltage 380...500 V - 15...10 % |
| EMC filter | Integrated |
Complementary
| Supply voltage limits | 323…550 V Continuous output current 4.1 A 4 kHz |
|---|---|
| Output frequency | 0…500 Hz |
| Switching frequency | 2...16 kHz adjustable |
| Braking torque | 150 % 60 s with braking resistor 100 % with braking resistor continuously 150 % without braking resistor |
| Output voltage | <= power supply voltage |
| Tightening torque | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 5.3 lbf.in (0.6 N.m) L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- 10.6 lbf.in (1.2 N.m) |
| Insulation | Electrical between power and control |
| Analogue input type | AI1 configurable voltage 0...10 V 30 V max 30000 Ohm AI2 configurable voltage +/- 10 V 30 V max 30000 Ohm AI3 configurable current 0...20 mA 250 Ohm Sampling duration AI1, AI2, AI3 8 ms analog LI1...LI6 4 ms discrete |
| Response time | AOV, AOC 8 ms analog R1A, R1B, R1C, R2A, R2B 8 ms discrete |
| Linearity error | +/- 0.2 % output |
| Analogue output type | AOC configurable current 0...20 mA 800 Ohm 8 bits AOV configurable voltage 0...10 V 470 Ohm 8 bits Discrete input logic Logic input not wired LI1...LI4), < 13 V Negative logic (source) LI1...LI6), > 19 V Positive logic (source) LI1...LI6), < 5 V, > 11 V |
| Discrete output type | Configurable relay logic R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles Configurable relay logic R2A, R2B) NC - 100000 cycles Minimum switching current R1-R2 10 mA 5 V DC |
| Maximum switching current | R1-R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms R1-R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms R1-R2 5 A 250 V AC resistive, cos phi = 1 0 ms R1-R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Discrete input type | LI1...LI6) programmable 24 V, 0…100 mA PLC 3500 Ohm Insulation resistance >= 500 mOhm 500 V DC for 1 minute |
| Local signalling | 1 LED (red) for drive voltage Four 7-segment display units for CANopen bus status Time constant 5 ms for reference change |
| Frequency resolution | Analog input 0.1...100 Hz Display unit 0.1 Hz Connector type 1 RJ45 Modbus/CANopen |
| Transmission Rate | 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen 4800, 9600 or 19200 bps Modbus |
| Number of addresses | 1…127 CANopen 1…247 Modbus Number of drive 127 CANopen 31 Modbus Outer dimension 382 x 239 x 170 mm 143 x 105 x 150 mm 184 x 149 x 157 mm Discrete input number 6 |
| Discrete output number | 2 |
| Analogue input number | 3 |
| Analogue output number | 1 Physical interface RS485 multidrop serial link |
| Transmission frame | RTU |
| Asynchronous motor control profile | Factory set : constant torque Sensorless flux vector control with PWM type motor control signal |
| Transient overtorque | 170…200 % of nominal motor torque |
| Acceleration and deceleration ramps | S, U or customized Linear adjustable separately from 0.1 to 999.9 s Motor slip compensation Suppressable Adjustable Automatic whatever the load |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Network Frequency | 47.5...63 Hz |
| Prospective line Isc | 5 kA |
| Protection type | Input phase breaks drive Line supply overvoltage and undervoltage safety circuits drive Line supply phase loss safety function, for three phases supply drive Motor phase breaks drive Overcurrent between output phases and earth (on power up only) drive Overheating protection drive Short-circuit between motor phases drive Thermal protection motor |
| Width | 4.2 in (107 mm) |
| Height | 5.6 in (143 mm) |
| Depth | 6.0 in (152 mm) |
| Net Weight | 4.0 lb(US) (1.8 kg) |
Environment
| Dielectric strength | 2410 V DC between earth and power terminals 3400 V AC between control and power terminals |
|---|---|
| Protective treatment | TC |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation IEC 60068-2-3 5…95 % without dripping water IEC 60068-2-3 |
| Operating altitude | <= 3280.84 ft (1000 m) without derating 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Operating position | Vertical +/- 10 degree |
| Product Certifications | UL DNV CSA |
| C-tick | NOM GOST |
| Marking | CE |
| Standards | IEC 61800-3 IEC 61800-5-1 Assembly style With heat sink |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Regulation loop Frequency PI regulator |
| Pollution degree | 2 |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating with protective cover on top of the drive) 14…140 °F (-10…60 °C) with derating factor without protective cover on top of the drive) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Ordering and shipping details
| Category | US1CP4B22152 |
|---|---|
| Discount Schedule | CP4B GTIN 3606480077586 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.691 in (16.996 cm) |
| Package 1 Width | 6.763 in (17.179 cm) |
| Package 1 Length | 8.12 in (20.62 cm) |
| Package weight(Lbs) | 4.348 lb(US) (1.972 kg) Manufacturer Schneider Electric Product Line ATV312 Part Number ATV312HU15N4 EAN 3606480077586 Weight 5.00 lbs (2.27 kg) Type Speed drive Speed Ratio 1:50 Motor Compatibility For asynchronous motors Motor Power 1.5 kW (2 HP) Control Type Sensorless vector PWM Peak Current 6.2 A for 60 sec Line Current 6.4 A at 380 V; 4.8 A at 500 V Input Voltage 380–500 V, ±15–10% Frequency Range 50–60 Hz, ±5% Phase Type 3-phase EMC Filter Integrated Braking Torque 150% with/without resistor Communication Protocols Modbus, CANopen Apparent Power 4.2 kVA |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
