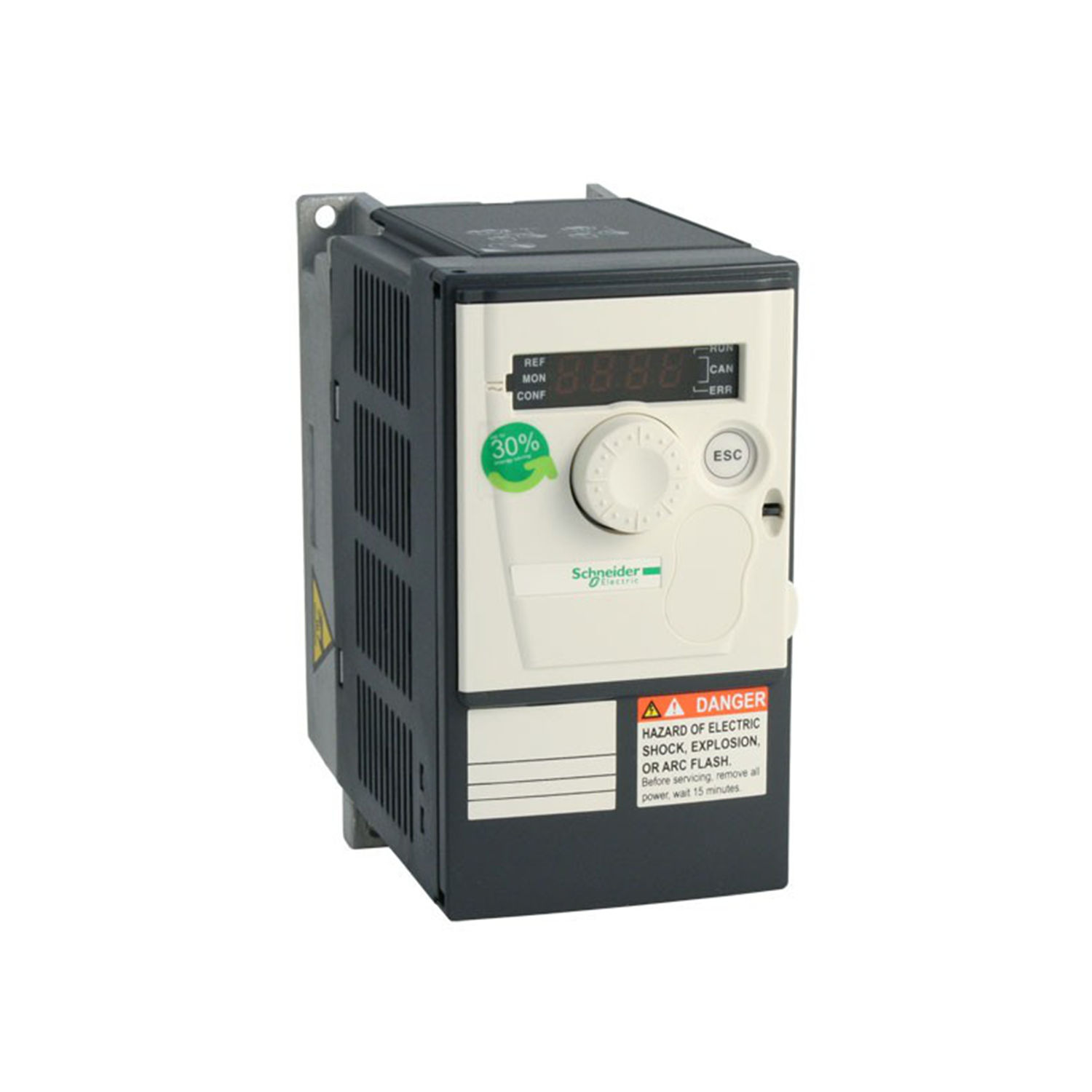

ATV312H018M2
Schneider Electric
Overview
The ATV312H018M2 is a Variable speed drive in the Altivar 312 range from Schneider Electric. It controls AC motors from a limits 170...264 V supply and is configured through the Altivar parameter set.
Application & Technical Notes
As a variable speed drive, the ATV312H018M2 is intended for deployment in panel-based control cabinets and machine enclosures where Altivar variable speed drive equipment is installed. It regulates the speed, torque and position of an AC motor to match the process demand while protecting the mechanical train.
Key published characteristics include a limits 170...264 V rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
For storage and transit, keep the unit within -25...70 °C. Avoid condensation — the rated humidity is 5...95 % without condensation conforming to IEC 60068-2-3; store and operate the module in a dry, pollution-degree-appropriate enclosure. Maintain clearances for cooling, back up the motor parameter file, and verify the thermal setting matches the driven load. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ATV312H018M2, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the drive rating, supply voltage and motor parameters, and confirm the option cards and communication profile required by the application. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ATV312H018M2?
The ATV312H018M2 is a variable speed drive in the Altivar 312 range from Schneider Electric. It is described by the manufacturer as: Variable speed drive.
What are the key technical ratings of the ATV312H018M2?
Its published highlights include limits 170...264 V. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ATV312H018M2 mounted or installed?
Installation follows the standard Altivar variable speed drive mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ATV312H018M2 compatible with my controller?
It is part of the Altivar variable speed drive family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ATV312H018M2?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
variable speed drive ATV312 - 0.18kW - 0.6kVA -
Main
| Note | Range of product Altivar 312 Product or component type Variable speed drive Product destination Asynchronous motors Product specific application Simple machine Assembly style With heat sink Component name ATV312 Motor power kW 0.18 kW Motor power hp 0.25 hp [Us] rated supply voltage 200...240 V (- 15...10 %) Supply frequency 50...60 Hz (- 5...5 %) Network number of phases Single phase Line current 3 A for 200 V, 5 kA 2.5 A for 240 V EMC filter Integrated Apparent power 0.6 kVA Maximum transient current 2.3 A for 60 s Power dissipation in W 24 W at nominal load Speed range 1...50 Asynchronous motor control profile Sensorless flux vector control with PWM type motor control signal Factory set : constant torque Electrical connection Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5 mm² AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 2.5 mm² AWG 14 Supply Internal supply for logic inputs at 19...30 V, <= 100 mA for overload and short-circuit protection Internal supply for reference potentiometer (2.2 to 10 kOhm) at 10...10.8 V, <= 10 mA for overload and short-circuit protection Communication port protocol Modbus CANopen IP degree of protection IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part Option card CANopen daisy chain communication card DeviceNet communication card Fipio communication card Modbus TCP communication card Profibus DP communication card |
|---|
Complementary
| Note | Supply voltage limits 170...264 V Network frequency 47.5...63 Hz Prospective line Isc 5 kA Continuous output current 1.5 A at 4 kHz Output frequency 0...500 kHz Nominal switching frequency 4 kHz Switching frequency 2...16 kHz adjustable Transient overtorque 170...200 % of nominal motor torque Braking torque 100 % with braking resistor continuously 150 % without braking resistor 150 % with braking resistor for 60 s Regulation loop Frequency PI regulator Motor slip compensation Automatic whatever the load Suppressable Adjustable Output voltage <= power supply voltage Tightening torque 0.6 N.m Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 0.8 N.m L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- Insulation Electrical between power and control Analogue input number 3 Analogue input type AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance 30000 Ohm AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance 30000 Ohm AI3 configurable current 0...20 mA, impedance 250 Ohm Sampling duration AI1, AI2, AI3 8 ms for analog LI1...LI6 4 ms for discrete Response time AOV, AOC 8 ms for analog R1A, R1B, R1C, R2A, R2B 8 ms for discrete Linearity error +/- 0.2 % for output Analogue output number 1 Analogue output type AOC configurable current 0...20 mA, impedance 800 Ohm, resolution 8 bits AOV configurable voltage 0...10 V, impedance 470 Ohm, resolution 8 bits Discrete input logic (LI1...LI4) logic input not wired, < 13 V (state 1) (LI1...LI6) negative logic (source), > 19 V (state 0) (LI1...LI6) positive logic (source), < 5 V (state 0), > 11 V (state 1) Discrete output number 2 Discrete output type (R1A, R1B, R1C) configurable relay logic 1 NO + 1 NC, electrical durability 100000 cycles (R2A, R2B) configurable relay logic NC, electrical durability 100000 cycles Minimum switching current R1-R2 10 mA at 5 V DC Maximum switching current R1-R2 on inductive load, 2 A at 250 V AC, (cos phi = 0.4, and L/R = 7 ms) R1-R2 on inductive load, 2 A at 30 V DC, (cos phi = 0.4, and L/R = 7 ms) R1-R2 on resistive load, 5 A at 250 V AC, (cos phi = 1, and L/R = 0 ms) R1-R2 on resistive load, 5 A at 30 V DC, (cos phi = 1, and L/R = 0 ms) Discrete input number 6 Discrete input type (LI1...LI6) programmable, 24 V 0...100 mA with PLC, impedance 3500 Ohm Acceleration and deceleration ramps S, U or customized Linear adjustable separately from 0.1 to 999.9 s Braking to standstill By DC injection Protection type Input phase breaks drive Line supply overvoltage and undervoltage safety circuits drive Line supply phase loss safety function, for three phases supply drive Motor phase breaks drive Overcurrent between output phases and earth (on power up only) drive Overheating protection drive Short-circuit between motor phases drive Thermal protection motor Insulation resistance >= 500 mOhm at 500 V DC for 1 minute Local signalling 1 LED red for drive voltage Four 7-segment display units for CANopen bus status Time constant 5 ms for reference change Frequency resolution Analog input 0.1...100 Hz Display unit 0.1 Hz Type of connector 1 RJ45 Modbus/CANopen Physical interface RS485 multidrop serial link Transmission frame RTU Transmission rate 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen 4800, 9600 or 19200 bps Modbus Number of addresses 1...247 Modbus 1...127 CANopen Number of drive 127 CANopen 31 Modbus |
|---|---|
| Marking CE | Operating position Vertical +/- 10 degree Height 145 mm Width 72 mm Depth 132 mm Product weight 1.5 kg |
Environment
| Note | Dielectric strength 2040 V DC between earth and power terminals 2880 V AC between control and power terminals Electromagnetic compatibility Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4 Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3 1.2/50 µs - 8/20 µs surge immunity test conforming to IEC 61000-4-5 level 3 Standards IEC 61800-3 IEC 61800-5-1 Product certifications NOM CSA UL GOST DNV |
|---|---|
| C-Tick | Pollution degree 2 Protective treatment TC Vibration resistance 1.5 mm (f = 3...13 Hz) conforming to EN/IEC 60068-2-6 1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6 Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27 Relative humidity 5...95 % without condensation conforming to IEC 60068-2-3 5...95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for storage -25...70 °C | Ambient air temperature for operation -10...50 °C without derating with protective cover on top of the drive -10...60 °C with derating factor without protective cover on top of the drive Operating altitude <= 1000 m without derating 1000...2000 m with current derating 1 % per 100 m |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
