AS-BDAP-210
Schneider Electric
Overview
The AS-BDAP-210 is a Modicon in the Modicon range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a modicon, the AS-BDAP-210 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a Range 24V AC to 240V AC rating, an operating temperature range of -20°C to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-20°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the AS-BDAP-210, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the AS-BDAP-210?
The AS-BDAP-210 is a modicon in the Modicon range from Schneider Electric. It is described by the manufacturer as: Modicon.
What are the key technical ratings of the AS-BDAP-210?
Its published highlights include Range 24V AC to 240V AC, operating temperature -20°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the AS-BDAP-210 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the AS-BDAP-210 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the AS-BDAP-210?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

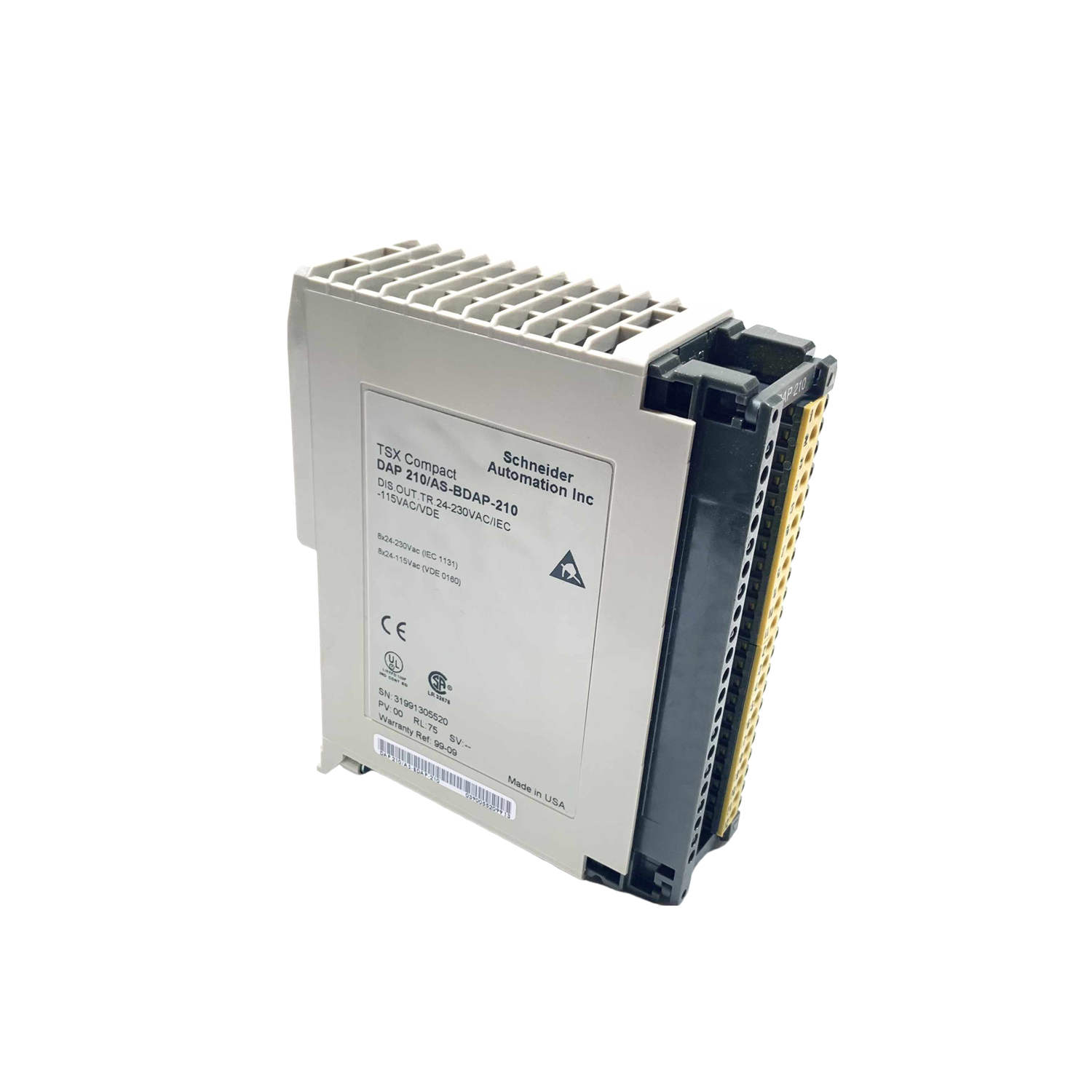

The AS-BDAP-210 from Schneider Electric is an output module that provides a reliable 8-point AC output. It operates over a voltage range of 24V AC to 240V AC and features a maximum output current of 1A per point, totaling 8A per module.
Description
| Note | The AS-BDAP-210 output module designed by Schneider Electric belongs to the Modicon series. This module is engineered to facilitate 8-point AC output, delivering digital AC signals across a broad voltage range from 24V to 240V AC. Each output point can handle a current of up to 1A, which aggregates to a maximum of 8A for the entire module. Manufactured with versatility in mind, the module measures 1.77 inches in height, 6.50 inches in width, and 8.07 inches in length, with a total weight of 0.924 lb (0.419 kg). For environments requiring robust performance, it operates effectively within a temperature spectrum of -20°C to 60°C. The power consumption is relatively low at 3W, making it efficient for various applications. Designed for ease of use, this module features Modbus communication, which allows for reliable integration into existing systems. Electrical isolation is also provided, enhancing safety and performance during operation. Additionally, it is specifically designed for DIN rail mounting, ensuring a streamlined installation process suitable for industrial settings. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
