ABFS08H202
Schneider Electric
Overview
The ABFS08H202 is a Cable Module in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cable module, the ABFS08H202 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of –20 °C to +60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (–20 °C to +60 °C); do not exceed it during commissioning or in enclosed panels without airflow. Avoid condensation — the rated humidity is Tolerance 95% relative humidity, non-condensing; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ABFS08H202, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ABFS08H202?
The ABFS08H202 is a cable module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Cable Module.
What are the key technical ratings of the ABFS08H202?
Its published highlights include operating temperature –20 °C to +60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ABFS08H202 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ABFS08H202 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ABFS08H202?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

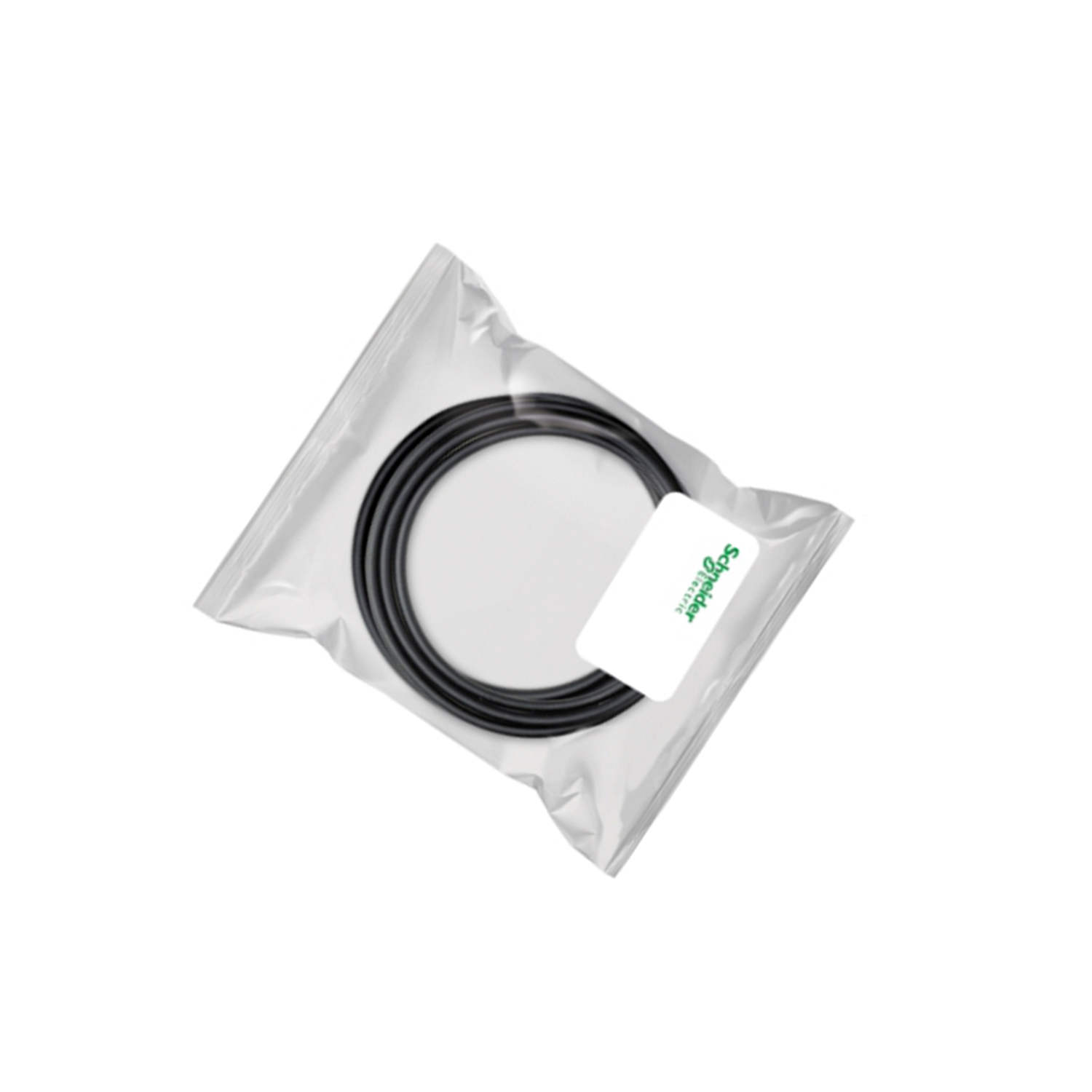

The ABFS08H202 from Schneider Electric is a cable module tailored for analog I/O applications within the Modicon Quantum series. This module features a length of 2 meters and utilizes an HE-08 connector for flexibility in connectivity.
Description
| Note | The ABFS08H202 cable module, part of Schneider Electric's Modicon Quantum series, specializes in facilitating analog I/O communication. With a total length of 2 meters, it provides ample reach for various setups. Featuring 8 conductors crafted from AWG 22 gauge materials, this module ensures dependable signal transmission. The signal connections use an HE-08 connector, which allows for straightforward plug-and-play mounting, enhancing ease of installation. This cable can operate under a voltage rating of 250 V and supports a maximum current rating of 2A. Designed to work effectively within a temperature range of -20 °C to +60 °C, the module is suitable for a variety of environmental conditions. The PVC insulation encapsulates the multi-conductor shielded cable, promoting durability and effective resistance to external noise interference. Furthermore, it is engineered to tolerate high humidity levels, up to 95% relative humidity without condensation, making it suitable for challenging environments. Compliance with RoHS regulations attests to its environmentally friendly design, making it a reliable choice for industrial applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
