ABFM16H301
Schneider Electric
Overview
The ABFM16H301 is a Cabled Connector in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cabled connector, the ABFM16H301 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of –20 °C to +60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (–20 °C to +60 °C); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ABFM16H301, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ABFM16H301?
The ABFM16H301 is a cabled connector in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Cabled Connector.
What are the key technical ratings of the ABFM16H301?
Its published highlights include operating temperature –20 °C to +60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ABFM16H301 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ABFM16H301 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ABFM16H301?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

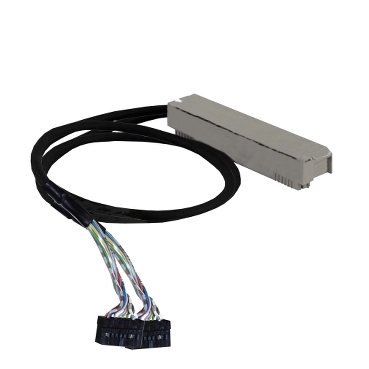

The ABFM16H301 is a cabled connector within the Schneider Electric Modicon Quantum series. Designed with 16 channels, it supports digital relay output signals and has a length of 9.8 feet (3 meters). This connector is equipped with two HE10 connectors, enabling efficient electrical connections.
Description
| Note | The Schneider Electric ABFM16H301 is crafted as a cabled connector, integral to the functionality of various Modicon Quantum systems. With a 16-channel configuration, this connector is specifically designed to manage digital relay output signals. The cable measures 9.8 feet (3 meters) in length, providing ample reach for connections. Its electrical interface includes two HE10 connectors for easy integration into existing systems. Constructed with multi-conductor shielded materials, this connector employs an AWG 22 gauge for its wiring, which has a wire section of 0.324 mm². It features a total of 20 ways, facilitating various connection types necessary for complex setups. Operational reliability is ensured within a temperature range of -20 °C to +60 °C, allowing for deployment in a range of environments. The ABFM16H301 also accommodates channel splitting, effectively dividing its channels into two groups of eight each to enhance its versatility. This cabled connector weighs approximately 1 kg, with a maximum current rating of 0.5 A and a voltage rating of 250 V, making it suitable for diverse electrical applications that demand efficient signal transfer. |
|---|---|
| Range of Product | Modicon Quantum Accessory / separate part designation Cabled connector Accessory / Separate Part Type Connector |
| Accessory / separate part category | Connection accessories Accessory / separate part destination Modicon Quantum PLC |
| Number of Channels | 16 |
Complementary
| Product Compatibility | 984A120 Compact Cable length 9.8 ft (3 m) |
|---|---|
| Type of signal | 0.5 A output |
| Electrical Connection | 2 connectors |
| Connector Type | HE10 |
| Number of ways | 20 ways |
| Wire section | 0.0005 in² (0.324 mm²) |
| AWG Gauge | AWG 22 Channel splitting 2 x 8 |
| Net Weight | 2.2 lb(US) (1 kg) |
Ordering and shipping details
| Category | 22375-INTERFACE MODULE(ABA,R,S) |
|---|---|
| Discount Schedule | CP2 GTIN 3389110705317 |
| Returnability | No |
| Country of origin | FR |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
