ABFM04S200
Schneider Electric
Overview
The ABFM04S200 is a Cabled connector in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cabled connector, the ABFM04S200 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of –20 °C to +60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (–20 °C to +60 °C); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ABFM04S200, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ABFM04S200?
The ABFM04S200 is a cabled connector in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Cabled connector.
What are the key technical ratings of the ABFM04S200?
Its published highlights include operating temperature –20 °C to +60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ABFM04S200 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ABFM04S200 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ABFM04S200?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

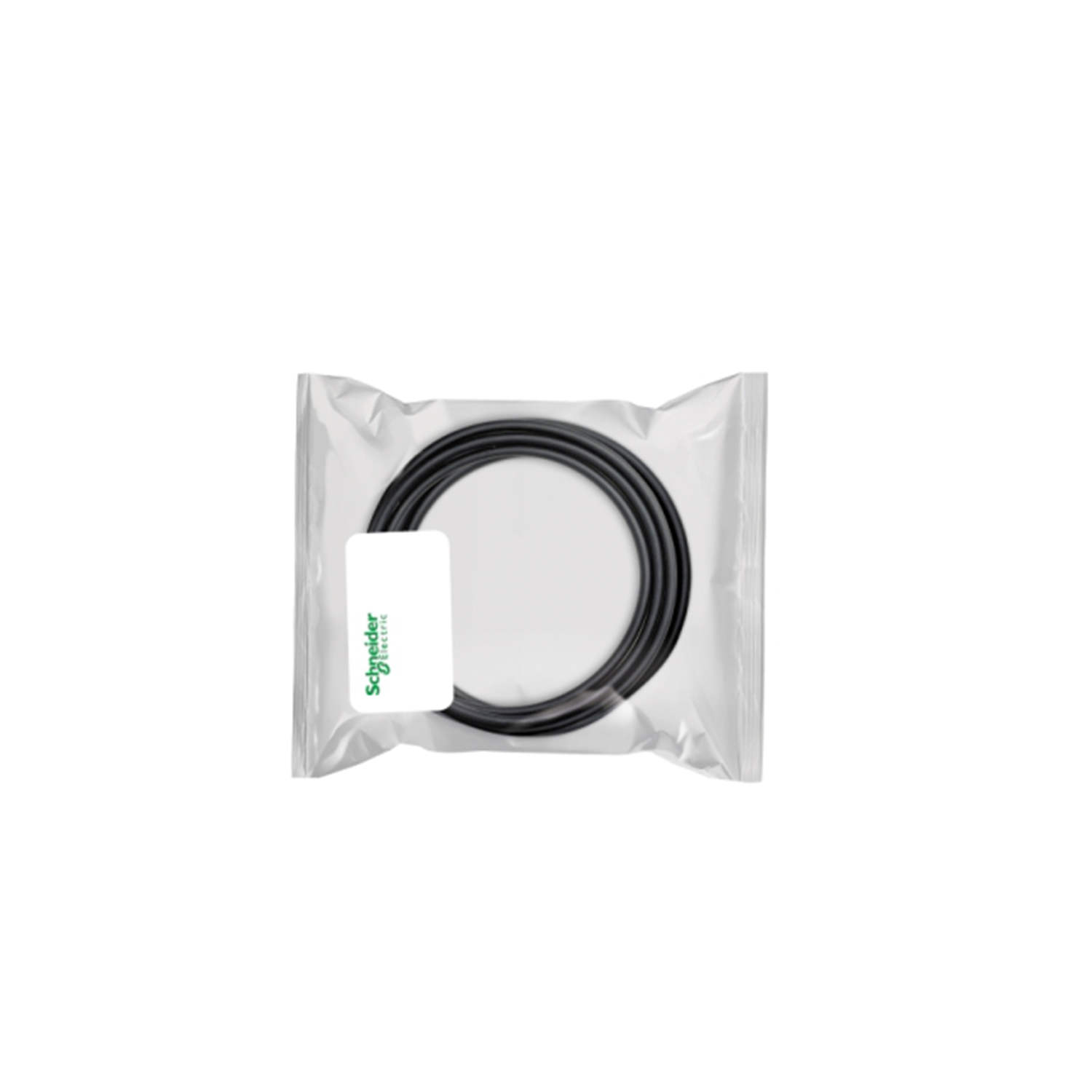

The Schneider Electric ABFM04S200 cable connector is built for reliable analog output connections within the Modicon Quantum series. It features a cable length of 6.6 feet and supports multiple channel configurations, enhancing connectivity options.
Description
| Note | The ABFM04S200 from Schneider Electric is a cabled connector designed to facilitate analog output connections in Modicon Quantum applications. The product is comprised of a multi-conductor ribbon cable with a length of 6.6 feet (2 meters), making it suitable for standard installations where moderate distance is required. This connector supports four channels and utilizes a SUB-D type connection. It has a wire section size of 0.22 mm² and follows the AWG 24 gauge standard, making it appropriate for various communication needs. It features 25 ways for connection, allowing for sufficient versatility in setups. With an operating temperature range extending from –20 °C to +60 °C, the connector performs well in a variety of environments. The insulation material is PVC, providing protection and durability. In terms of electrical specifications, the ABFM04S200 has a current rating of 1 ampere and can operate at a maximum voltage of 250 volts. Weighing 0.45 kilograms, this connector is designed for dependable use in industrial applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
