ABE7S16E2M0
Schneider Electric
Overview

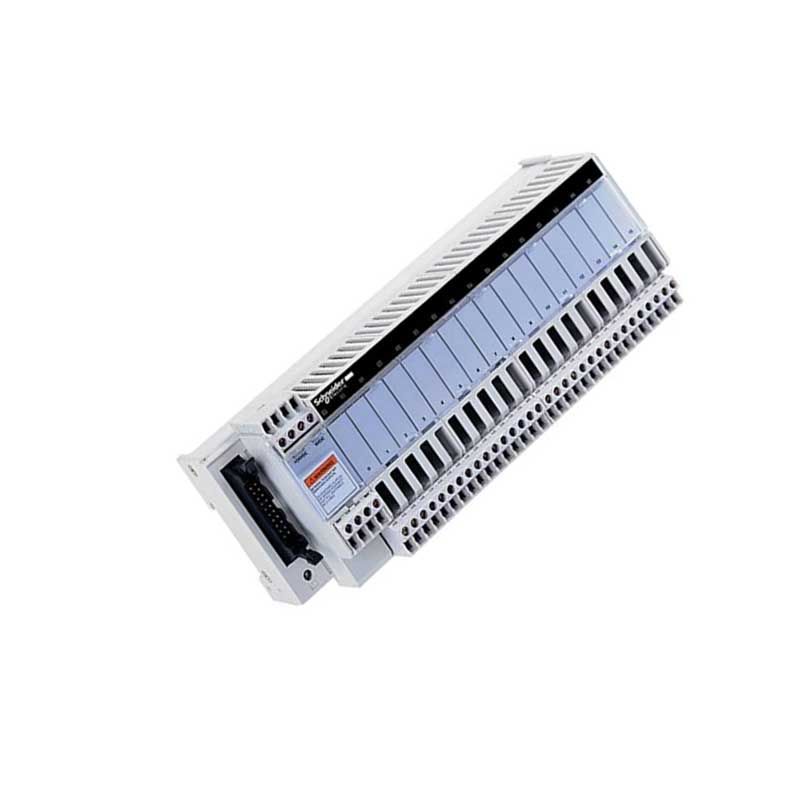

The ABE7S16E2M0 is a Solid state input relay sub-base in the Modicon ABE7 range from Schneider Electric. It provides 16 channels and is built for signal interfacing within the Schneider Electric automation portfolio systems.
Application & Technical Notes
As a solid state input relay sub-base, the ABE7S16E2M0 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 16 channels, a Limits 19 to 30 VDC rating, an operating temperature range of -5…60 °C conforming to IEC 61131-2. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-5…60 °C conforming to IEC 61131-2); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…80 °C conforming to IEC 61131-2. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ABE7S16E2M0, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your the Schneider Electric automation portfolio rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ABE7S16E2M0?
The ABE7S16E2M0 is a solid state input relay sub-base in the Modicon ABE7 range from Schneider Electric. It is described by the manufacturer as: Solid state input relay sub-base.
What are the key technical ratings of the ABE7S16E2M0?
Its published highlights include 16 channels, Limits 19 to 30 VDC, operating temperature -5…60 °C conforming to IEC 61131-2. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ABE7S16E2M0 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ABE7S16E2M0 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ABE7S16E2M0?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric ABE7S16E2M0 is a solid-state output relay designed to handle a supply voltage in the range of 230 V to 240 V AC. This model supports 16 channels, each with two terminals for reliable electrical connections.
Complementary
| Note | Terminal block type Removable |
|---|---|
| Supply voltage limits | 19…30 V DC (PLC end) conforming to IEC 61131-2 Isolation PLC/operative part Yes |
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end Adjustable by external fuse fast blow sensor end |
| Fixing mode | N/A |
| By clips (35 mm symmetrical DIN rail) | By screws (solid plate with fixing kit) |
| Current per channel | 0.008 A |
| Current state 1 guaranteed | >= 4.5 mA (sensor end) |
| Voltage state 1 guaranteed | >= 164 V for sensor end |
| Maximum switching current | 15 mA (PLC end) Minimum switching current 1 mA for PLC end |
| Response time | <= 20 ms from state 0 to 1 <= 20 ms from state 1 to 0 |
| Switching frequency | <= 25 Hz duty cycle: 50 % [Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1 [Ui] rated insulation voltage 2000 V Installation category II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.407 kg |
Environment
| Dielectric strength | 2000 V at 50/60 Hz conforming to IEC 60947-1 |
|---|---|
| Product certifications | DNV GL CSA EAC |
| Standards | IEC 61131-2 Type 1 |
| IP degree of protection | IP2X conforming to IEC 60529 Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2 8 kV (air) level 3 conforming to IEC 61000-4-2 Resistance to radiated fields 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 8.300 cm |
| Package 1 Length | 21.300 cm |
| Package 1 Weight | 475.000 g |
Description
| Note | The ABE7S16E2M0 solid-state output relay from Schneider Electric is engineered for precise control in automation applications. It requires a supply voltage of 230 V to 240 V AC to operate efficiently. The relay functions effectively within a frequency range of 50 Hz to 60 Hz, accommodating various operational standards. Comprising 16 distinct channels, it allows for dual terminals per channel, providing flexibility in wiring configurations. In terms of electrical connections, this relay utilizes removable screw-type terminals, enhancing ease of installation and maintenance. The supply voltage can vary from 19 V to 30 V DC, ensuring compatibility with multiple power systems. Each channel has a current rating of 0.008 A, which is crucial for ensuring proper function in low-power applications. The device is designed to switch currents ranging from a minimum of 1 mA to a maximum of 15 mA, making it suitable for a range of control tasks. Quick response times are crucial in automation, and this relay boasts a response time of less than 20 milliseconds, enabling rapid operation in various applications. Its design ensures reliability and stability in demanding environments, fulfilling the requirements of modern industrial systems. |
|---|
