ABE7E16EPN20
Schneider Electric
Overview

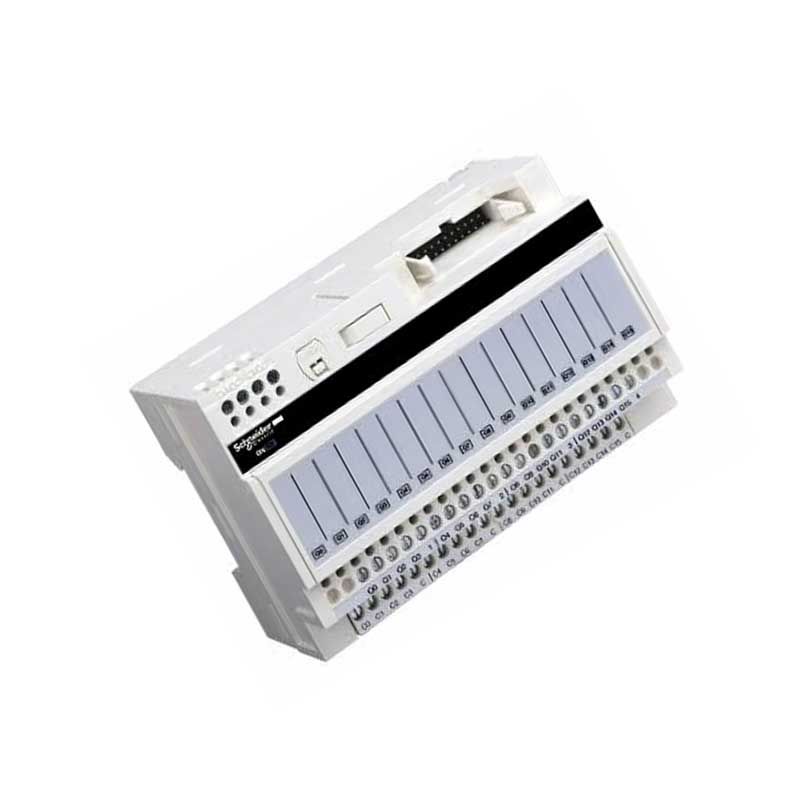

The ABE7E16EPN20 is a Passive discrete I/O sub-base in the Modicon ABE7 range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a passive discrete i/o sub-base, the ABE7E16EPN20 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 23…140 °F (-5…60 °C) IEC 61131-2. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (23…140 °F (-5…60 °C) IEC 61131-2); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…176 °F (-40…80 °C) IEC 61131-2. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ABE7E16EPN20, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ABE7E16EPN20?
The ABE7E16EPN20 is a passive discrete i/o sub-base in the Modicon ABE7 range from Schneider Electric. It is described by the manufacturer as: Passive discrete I/O sub-base.
What are the key technical ratings of the ABE7E16EPN20?
Its published highlights include operating temperature 23…140 °F (-5…60 °C) IEC 61131-2. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ABE7E16EPN20 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ABE7E16EPN20 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ABE7E16EPN20?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric ABE7E16EPN20 is a passive discrete I/O sub-base designed for connection purposes in industrial applications. It features 16 terminals available per channel and is specifically suited for use with a 24 Volts DC power supply.
Complementary
| Supply voltage limits | 19…30 V DC controller side)IEC 61131-2 20.4…26.4 V DC sensor/controller side)IEC 61131-2 Discrete input number 16 Discrete input logic Sink |
|---|---|
| Discrete output voltage | 24 V Discrete output voltage type DC |
| Product Compatibility | TWDDDI16DK TWDDDI32DK |
| Status LED | 1 LED power ON Polarity distribution 1 common/16 channels input |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow controller side) |
| Connector Type | HE-10 Pin number 20 pins |
| Fixing mode | By clips 35 mm symmetrical DIN rail IEC 60715 By screws |
| Maximum supply current | 2 A Switched current 15 mA input circuit Voltage drop on power supply fuse 0.3 V [Ui] rated insulation voltage 2000 V terminals/mounting rails |
| Overvoltage category | II conforming to IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Net Weight | 0.95 lb(US) (0.43 kg) |
Environment
| Standards | IEC 61131-2 Type 1 |
|---|---|
| Product Certifications | CSA UL |
| IP degree of protection | IP2X conforming to IEC 60529 Resistance to incandescent wire 1382 °F (750 °C) IEC 60695-2-11 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2 Resistance to radiated fields 9.1 V/m (10 V/m) 80000000…2000000000 Hz)IEC 61000-4-3 level 3 Resistance to fast transients 2 kV level 3 IEC 61000-4-4 |
| Ambient air temperature for operation | 23…140 °F (-5…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -40…176 °F (-40…80 °C) IEC 61131-2 |
| Pollution degree | 2 IEC 60664-1 |
Ordering and shipping details
| Category | US10CP222375 |
|---|---|
| Discount Schedule | 0CP2 GTIN 3389110590340 |
| Returnability | No |
Description
| Note | The ABE7E16EPN20 from Schneider Electric is categorized as a passive discrete I/O sub-base, suitable for various applications in industrial environments. This unit offers a total of 16 terminals for each channel, with a specific focus on facilitating connections for power supply systems. It operates at a nominal voltage of 24 volts DC, making it adaptable for different setups. This sub-base is compatible with Twido programmable controllers, enhancing its utility in automation processes. The screw-type protection mechanism assures reliable connection and durability over time. It maintains an ambient temperature rating of IP2X, indicating that it provides sufficient protection against solid objects larger than 12 mm, while its capacity to function effectively at storage temperatures ranging from -5 °C to 60 °C offers flexibility. The ABE7E16EPN20 is built to withstand extreme conditions, featuring an operational temperature range from -40 °C to 80 °C, making it robust for various challenging environments. This sub-base serves critical roles in maintaining reliable connectivity and is an essential component for ensuring operational efficiency in diverse applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
