ABE7CPA21
Schneider Electric
Overview

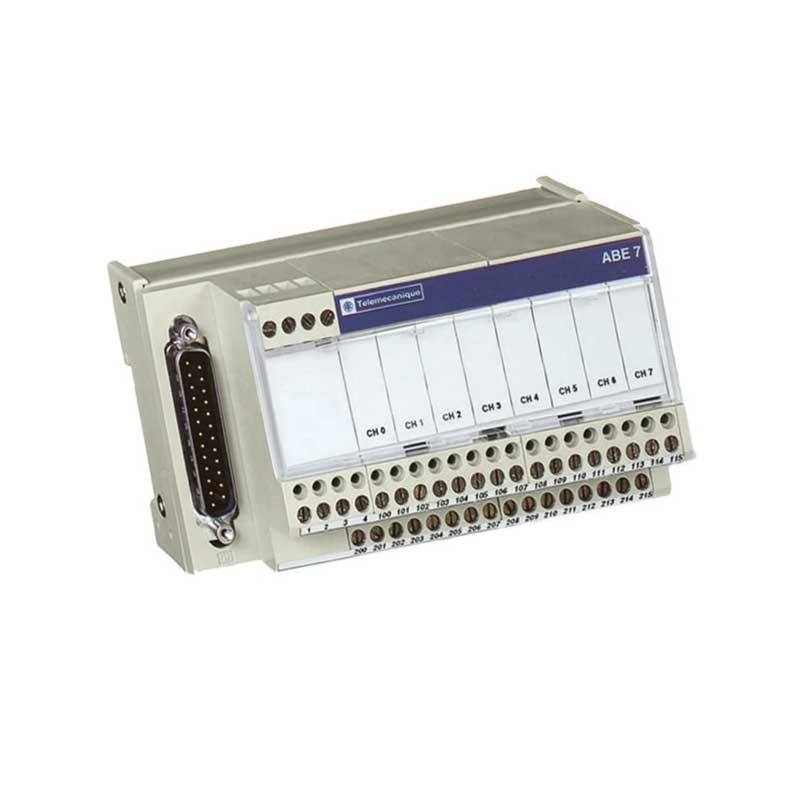

The ABE7CPA21 is a Connection sub-base for counter and analogue channels in the Modicon ABE7 range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a connection sub-base for counter and analogue channels, the ABE7CPA21 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C) IEC 61131-2. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C) IEC 61131-2); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…176 °F (-40…80 °C) IEC 61131-2. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the ABE7CPA21, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the ABE7CPA21?
The ABE7CPA21 is a connection sub-base for counter and analogue channels in the Modicon ABE7 range from Schneider Electric. It is described by the manufacturer as: Connection sub-base for counter and analogue channels.
What are the key technical ratings of the ABE7CPA21?
Its published highlights include operating temperature 32…140 °F (0…60 °C) IEC 61131-2. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the ABE7CPA21 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the ABE7CPA21 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the ABE7CPA21?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric ABE7CPA21 is a connection sub-base designed for use with counter and analog channels. Rated for four channels, the unit features IP20 protection and operates optimally at temperatures from 0°C to 60°C. It offers compatibility with the Modicon Premium TSXAEY420 and TSXASY410 PLCs, making it suitable for various applications.
Complementary
| Note | Function of module Analogue output current Premium Analogue output voltage Premium |
|---|---|
| Product compatibility | Premium TSXAEY420 Premium TSXASY410 Connection to PLC SUB-D 25 |
| Fixing mode | N/A |
| By clips (35 mm symmetrical DIN rail) | By screws (solid plate with fixing kit) [Ui] rated insulation voltage 2000 V terminals/mounting rails Installation category II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Net Weight | 0.40 lb(US) (0.18 kg) |
Environment
| Product Certifications | DNV GL CSA UL EAC |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC Resistance to incandescent wire 1382 °F (750 °C) 30 s IEC 60695-2-11 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2 Resistance to radiated fields 9.1 V/m (10 V/m) 26000000…1000000000 Hz)IEC 61000-4-3 level 3 Resistance to fast transients 2 kV level 3 IEC 61000-4-4 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -40…176 °F (-40…80 °C) IEC 61131-2 |
| Pollution degree | 2 IEC 60664-1 |
Ordering and shipping details
| Category | US10CP222375 |
|---|---|
| Discount Schedule | 0CP2 GTIN 3389110836196 |
| Returnability | Yes |
| Country of origin | LV |
Description
| Note | The ABE7CPA21 connection sub-base is manufactured by Schneider Electric and belongs to the Modicon series. This sub-base is structured with four channels, elegantly engineered for analog and counter connections, thereby enhancing modularity in control systems. Designed specifically for use with Modicon Premium programmable logic controllers such as TSXAEY420 and TSXASY410, it provides seamless integration. The sub-base is encased in an IP20-rated enclosure, ensuring protection against solid objects larger than 12 mm, making it suitable for indoor installations. It performs effectively within an operational temperature span of 0°C to 60°C in non-condensing environments, while it can safely be stored at temperatures ranging from -40°C to 80°C. Electrical connections are established through screw-type terminals, allowing secure and robust attachments. With a tightening torque requirement of 0.6 Newton-meters for terminal connections, it guarantees a stable electrical interface. The unit's total weight is approximately 0.4 pounds (0.18 kilograms), making it relatively lightweight. This component complies with numerous industrial standards hence is certified by DNV, EAC, GL, UL, and CSA. Additionally, it has a rated insulation voltage of 2,000 volts, ensuring safe operation under various electrical stresses. Furthermore, it is equipped to resist electrostatic discharge between 4 to 8 kilovolts and withstands radiated fields up to 10 volts per meter. Such features make the ABE7CPA21 a reliable choice for efficient control system integration. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
