990NAD23000
Schneider Electric
Overview

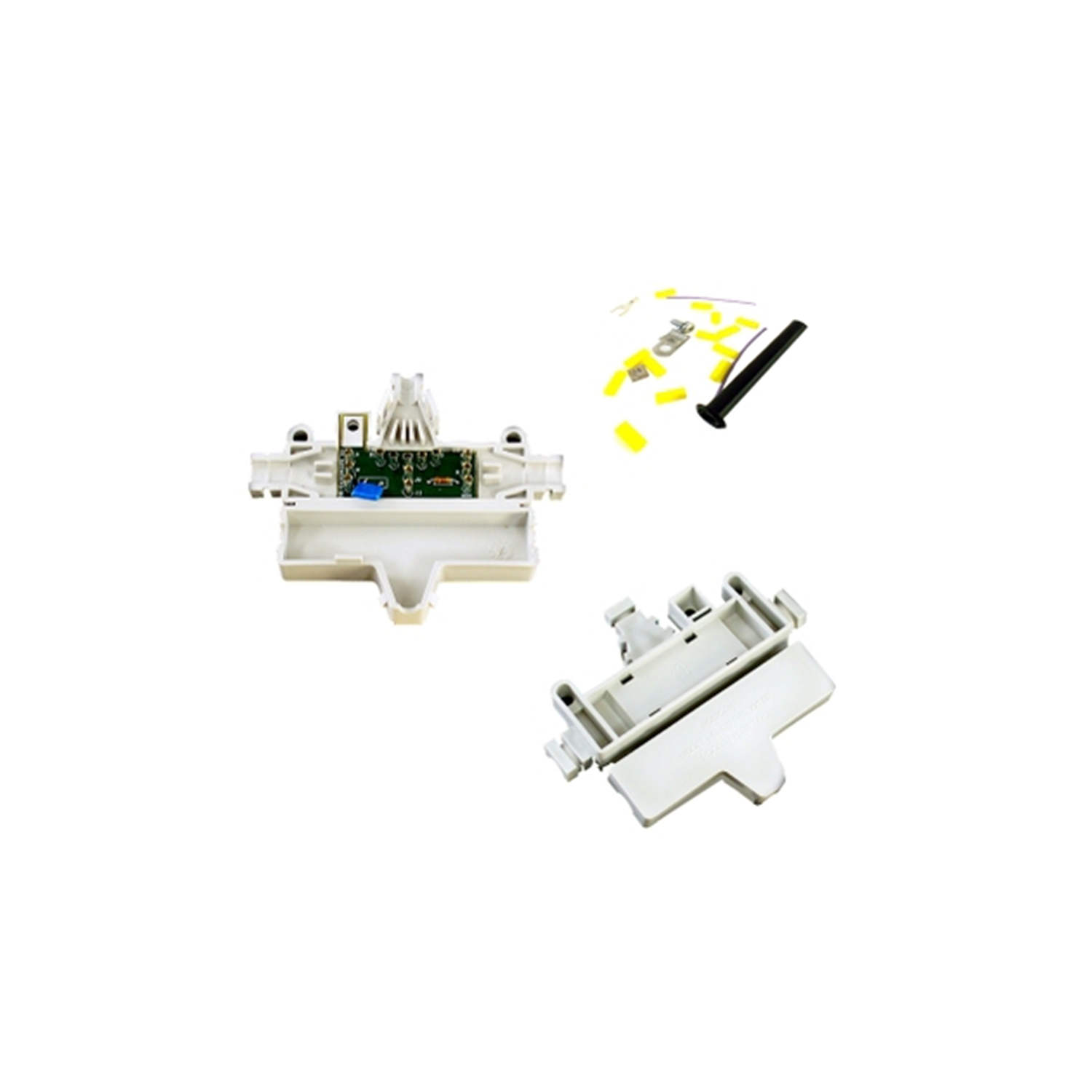

The 990NAD23000 is a Junction Box in the Modicon range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a junction box, the 990NAD23000 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a Range 24 V DC rating, an operating temperature range of -20°C to +60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-20°C to +60°C); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 990NAD23000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 990NAD23000?
The 990NAD23000 is a junction box in the Modicon range from Schneider Electric. It is described by the manufacturer as: Junction Box.
What are the key technical ratings of the 990NAD23000?
Its published highlights include Range 24 V DC, operating temperature -20°C to +60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 990NAD23000 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 990NAD23000 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 990NAD23000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 990NAD23000 junction box by Schneider Electric is designed for Modbus Plus networks, facilitating reliable communication. This unit operates within a 24 V DC voltage range and supports passive cooling, ensuring efficient performance without the need for active cooling.
Description
| Note | Schneider Electric's Modicon series includes the 990NAD23000, a junction box tailored for effective communication in Modbus Plus networks. Designed to accept an input voltage of 24 V DC, this device is a critical component in ensuring seamless data transfer within automation systems. Constructed for simplicity, the junction box utilizes passive cooling, eliminating the need for any active cooling mechanisms, thus promoting long-term reliability. The operational temperature range of this model extends from -20°C to +60°C, making it versatile enough for various environmental settings. It bears a weight of just 0.05 kg, allowing for easy installation. Users can conveniently mount this junction box either on a wall or a panel, providing flexibility in different configurations. The unit is rated with an IP20 protection class to shield it from dust and solid objects, ensuring it remains operational in typical environments. Connectors are screw terminals, providing straightforward and secure wiring connections for integration into the Modbus Plus communication protocol. The 990NAD23000 serves a key role in updating and expanding Modbus Plus networks for diverse applications while ensuring stable connectivity and communication. |
|---|---|
| Accessory / separate part category | Connection accessories Accessory / Separate Part Type Junction box Accessory / separate part designation IP20 Modbus Plus junction box with line terminal Accessory / separate part destination Modbus Plus network Additional information Requires the wiring tools 043509383 Quantity per Set Set of 1 |
Complementary
| Range Compatibility | Modicon Momentum automation platform Modicon TSX Micro automation platform Modicon Premium automation platform Modicon Quantum automation platform Communication Port Protocol Modbus Plus |
|---|---|
| Net Weight | 0.51 lb(US) (0.23 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|
Ordering and shipping details
| Category | US1PC2118150 |
|---|---|
| Discount Schedule | PC21 GTIN 3595861127814 |
| Returnability | Yes |
| Country of origin | CN |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.024 in (2.600 cm) |
| Package 1 Width | 2.165 in (5.500 cm) |
| Package 1 Length | 4.488 in (11.400 cm) |
| Package weight(Lbs) | 2.222 oz (63.000 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
