990NAA21510
Schneider Electric
Overview
The 990NAA21510 is a Programming Cable in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a programming cable, the 990NAA21510 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0 to 60°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40 to 85°C (in a non-condensing environment). Avoid condensation — the rated humidity is Tolerance 0% to 95% relative humidity (without condensation); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 990NAA21510, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 990NAA21510?
The 990NAA21510 is a programming cable in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Programming Cable.
What are the key technical ratings of the 990NAA21510?
Its published highlights include operating temperature 0 to 60°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 990NAA21510 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 990NAA21510 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 990NAA21510?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

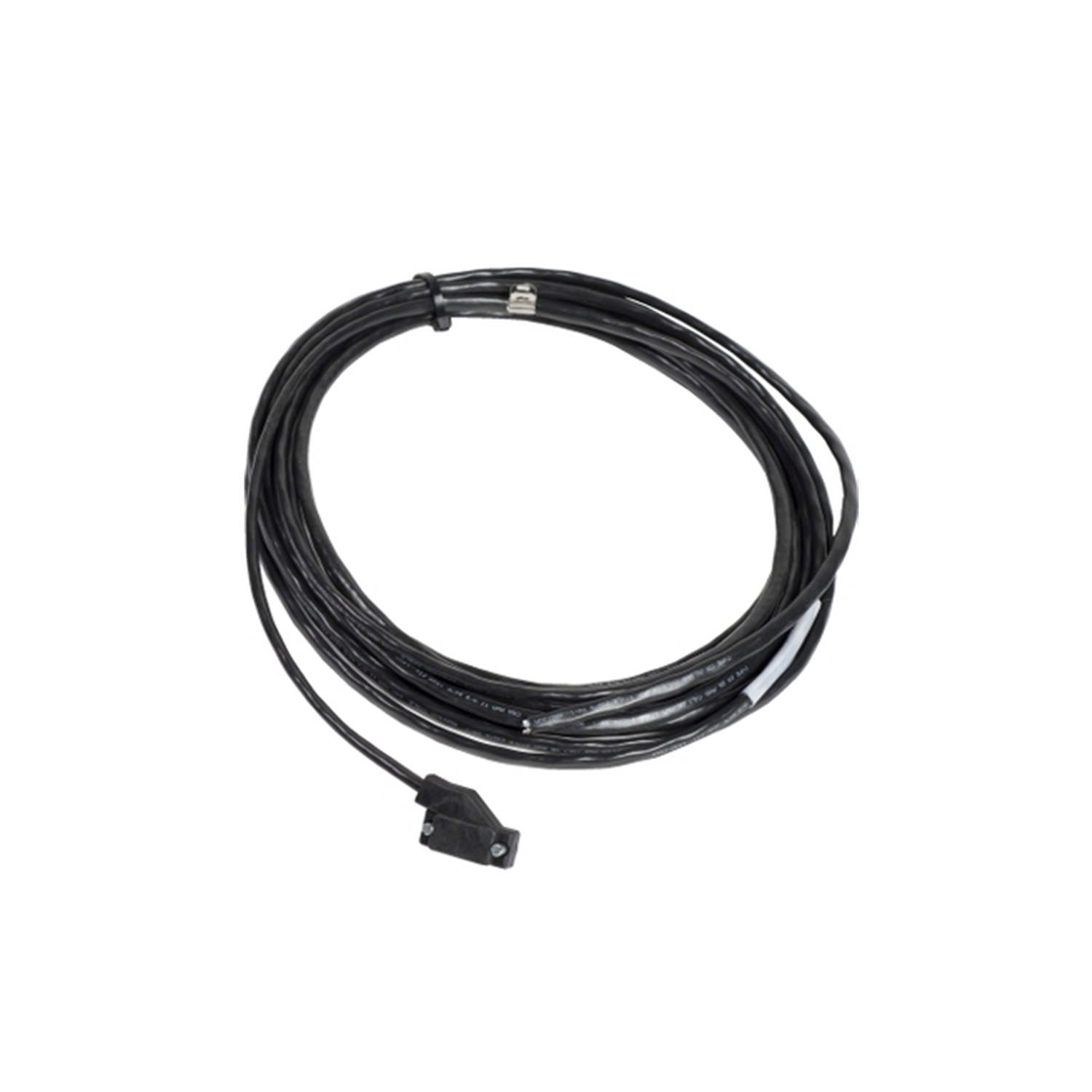

The 990NAA21510 programming cable from Schneider Electric is specifically designed for use with Modicon Quantum CPU modules. It features a ruggedized T-connector that ensures reliable connections in industrial settings and has a cable length of 10.01 feet, providing flexibility in installations.
Description
| Note | The robust programming cable, identified by part number 990NAA21510, is a crucial component for users interacting with Schneider Electric's Modicon Quantum series. This unit incorporates a ruggedized T-connector for enhanced durability and dependable connectivity. Stretching to a length of 10.01 feet (3.05 meters), it provides sufficient reach for various setups, allowing for a flexible working environment. The cable is designed for use within the Modbus Plus network, making it compatible with specific Modicon Quantum CPU modules. Its electrical connection consists of two connectors: one at the PC end and another on the T-connector side, ensuring straightforward interfacing. Operating in ambient temperatures from 0°C to 60°C, the 990NAA21510 is built to perform effectively in environments that do not have condensation. It can also be stored safely in a temperature range from -40°C to 85°C. Additionally, the cable tolerates high humidity levels, functioning efficiently at relative humidity ratings from 0% to 95% without any condensation, making it suitable for diversely humid environments. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
