52-0402-000
Schneider Electric
Overview

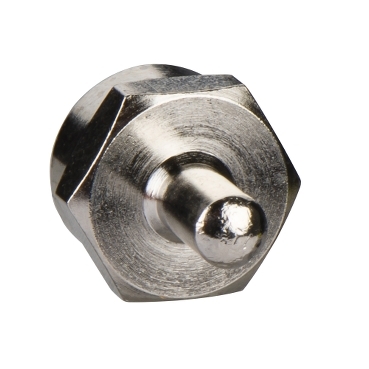

The 52-0402-000 is a Tap Terminator in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a tap terminator, the 52-0402-000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a Range 24V DC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is 5% to 95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 52-0402-000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 52-0402-000?
The 52-0402-000 is a tap terminator in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Tap Terminator.
What are the key technical ratings of the 52-0402-000?
Its published highlights include Range 24V DC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 52-0402-000 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 52-0402-000 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 52-0402-000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 52-0402-000 serves as a tap terminator in the Modicon Quantum series. This component operates within a voltage range of 24V DC while drawing a current of 40 mA. It accommodates digital communication through RS-485/Modbus protocols.
Description
| Note | The 52-0402-000 from Schneider Electric functions as a tap terminator, vital for applications utilizing the Modicon Quantum series. This device operates effectively at an input voltage of 24V DC and has a current consumption rating of 40 mA. Designed with a robust operational range, it can withstand environmental temperatures from -20°C to 70°C during use, while the storage temperature can endure a broader range of -40°C to 85°C. With capabilities to handle cable lengths between 0 to 100 meters, it offers versatility in installations. The device communicates using a digital signal, specifically through RS-485/Modbus, ensuring reliable data transmission. For wiring, it utilizes screw terminal or plug-in terminal blocks, facilitating flexible connections. Maintaining compliance with CE, UL, and RoHS standards, this tap terminator adheres to high safety and environmental regulations. Surge protection features enhance its resilience against voltage spikes, and LED indicators provide visual feedback for monitoring its status. Weighing only 0.2 ounces (5.0 g), its compact dimensions (0.47 in height, 1.97 in width, and 3.54 in length) add to its utility, making it easy to integrate within various setups. |
|---|---|
| Range of Product | Modicon Quantum automation platform Accessory / separate part designation Tap terminator Accessory / Separate Part Type Tap terminator |
| Accessory / separate part category | Connection accessories Accessory / separate part destination Unused drop location Quantity per Set Set of 1 |
Ordering and shipping details
| Category | US1PC4118225 |
|---|---|
| Discount Schedule | PC41 GTIN 3595863530117 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.5 in (1.2 cm) |
| Package 1 Width | 2.0 in (5.0 cm) |
| Package 1 Length | 3.5 in (9.0 cm) |
| Package weight(Lbs) | 0.2 oz (5.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
