490NAA27101
Schneider Electric
Overview

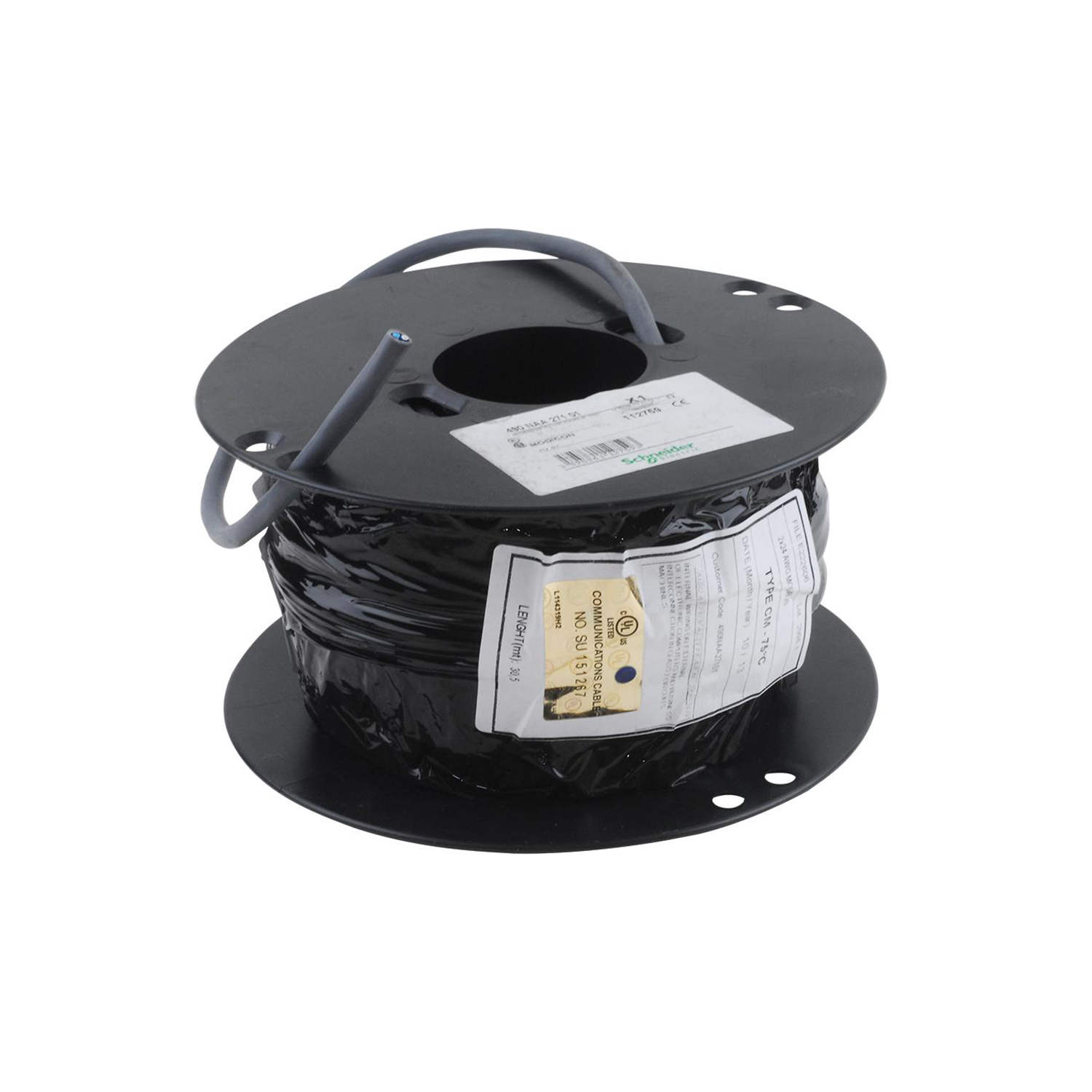

The 490NAA27101 is a Trunk Cable in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a trunk cable, the 490NAA27101 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0 to 40 degrees Celsius. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 40 degrees Celsius); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within 0 to 50 degrees Celsius. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 490NAA27101, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 490NAA27101?
The 490NAA27101 is a trunk cable in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Trunk Cable.
What are the key technical ratings of the 490NAA27101?
Its published highlights include operating temperature 0 to 40 degrees Celsius. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 490NAA27101 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 490NAA27101 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 490NAA27101?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 490NAA27101 is a trunk cable designed to facilitate Modbus Plus connections. This cable is suitable for a variety of applications, including material handling, packaging, and textiles, and measures 1 meter in length.
Description
| Note | The trunk cable 490NAA27101 from Schneider Electric is an integral component for establishing Modbus Plus connections. This item is specifically tailored for compatibility with various Modbus Plus junction boxes, making integration simple and efficient. Measuring 1 meter in length, it is designed to accommodate applications in different sectors, including material handling, packaging, and textile industries. This trunk cable is capable of operating effectively within a temperature scope of 0 to 40 degrees Celsius, ensuring reliability in standard environmental conditions. It can be stored at a range from 0 to 50 degrees Celsius, providing flexibility for storage options. The cable also maintains performance within environments exhibiting a maximum relative humidity of 80% during operation and storage, with a non-condensing specification. Altitude considerations are also factored, as the cable can function adequately at heights reaching up to 1000 meters above sea level for both operation and storage. Its design specifically cater towards clean indoor environments, free from corrosive substances, thus ensuring longevity and sustained performance in various applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
