172JNN21032C
Schneider Electric
Overview
The 172JNN21032C is a Modicon Momentum in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a modicon momentum, the 172JNN21032C is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a tolerance rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 172JNN21032C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 172JNN21032C?
The 172JNN21032C is a modicon momentum in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Modicon Momentum.
What are the key technical ratings of the 172JNN21032C?
Its published highlights include tolerance, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 172JNN21032C mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 172JNN21032C compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 172JNN21032C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

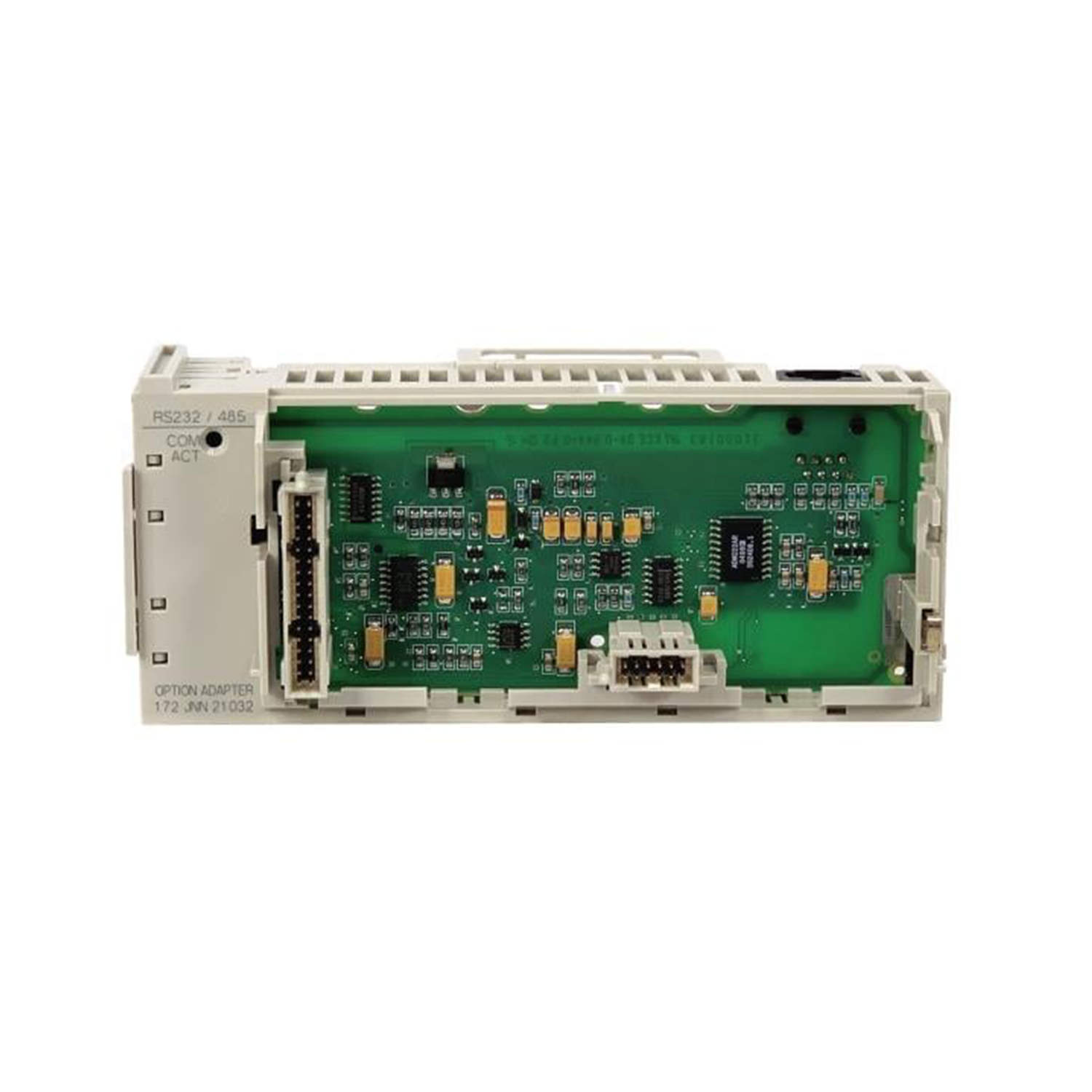

The Schneider Electric 172JNN21032C is a serial link option adaptor designed for versatile communication. This unit supports RS232 and RS485 serial links, offering flexibility for various applications in the Modicon Momentum series.
Description
| Note | The 172JNN21032C from Schneider Electric serves as a serial link option adaptor within the Modicon Momentum range. Designed to facilitate flexible communication, it allows users to select between RS232 and RS485 serial links. Reliability is enhanced with a lithium 2/3 AA battery that ensures a usable life of five years. However, users should note that after receiving a low battery warning at 40°C, the device will typically maintain battery autonomy for less than 30 days. The current consumption rated at 700 mA while operating at 12 V DC indicates the energy needs of this adaptor. Additionally, it boasts a dielectric strength of 500 V DC, reinforcing its reliability in industrial settings. The adaptor features a single LED indicator that provides real-time communication status, enhancing operational monitoring. Weighing approximately 85.05 grams and standing 0.98 inches (25 mm) in height, this compact adaptor is designed for ease of integration into various systems. Its rating for environmental compliance is based on the IP degree of protection as per IEC 529, ensuring durability. The 172JNN21032C has obtained multiple certifications, including UL, CUL, CE, and FM, confirming its compliance with industry standards. This device adheres to CSA and NEMA 250 Type 1 standards, underscoring its suitability for a range of applications and environments. Operating temperature typically ranges from 0°C to 60°C, allowing for reliable performance in various conditions. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Serial link option adaptor |
| Number of port | 1 Communication port type Single |
Complementary
| Note | [Us] rated supply voltage 5 V DC Input voltage tolerance +/- 5 % |
|---|---|
| Supply | Via I/O base Clock Drift +/- 13 s/day accuracy |
| Battery type | Lithium < 30 day after the battery low indication 104 °F (40 °C) Battery Size 2/3 AA |
| Battery Life | 5 year(s) Communication port support RS232 or RS485 serial link selectable |
| Electrical connection | 1 connector D-shell 9 pins for Modbus Plus connection Material Lexan |
| Marking | CE |
| Local signalling | 1 LED for communication |
| Current consumption | 700 mA 12 V DC |
| Height | 1.0 in (25 mm) |
| Width | 5.6 in (143.1 mm) |
| Depth | 2.36 in (60.06 mm) |
| Module format | Standard |
| Net Weight | 3.00 oz (85.05 g) |
Environment
| Dielectric strength | 500 V DC |
|---|---|
| Standards | IEC 529 |
| Product Certifications | CSA UL NEMA 250 type 1 |
| IP degree of protection | IP20 conforming to IEC 529 |
| Protective treatment | TC Conformal coating Humiseal 1A33 |
| Shock resistance | +/- 15 gn 11 ms half sine wave acceleration |
| Vibration resistance | 1 gn 57…150 Hz) Amplitude of sinusoidal vibration 0.075 mm 10…57 Hz |
| Resistance to electrostatic discharge | 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…95 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3595863798869 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.8 in (7.0 cm) |
| Package 1 Width | 4.3 in (11.0 cm) |
| Package 1 Length | 8.3 in (21.0 cm) |
| Package weight(Lbs) | 8.007 oz (227.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
