171CCS76000
Schneider Electric
Overview
The 171CCS76000 is a M1/M1E processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It executes control logic for the Schneider Electric automation portfolio architectures and operates from a 5 Volts DC supply.
Application & Technical Notes
As a m1/m1e processor adaptor, the 171CCS76000 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 5 Volts DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…96 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 171CCS76000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 171CCS76000?
The 171CCS76000 is a m1/m1e processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1/M1E processor adaptor.
What are the key technical ratings of the 171CCS76000?
Its published highlights include 5 Volts DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 171CCS76000 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 171CCS76000 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 171CCS76000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

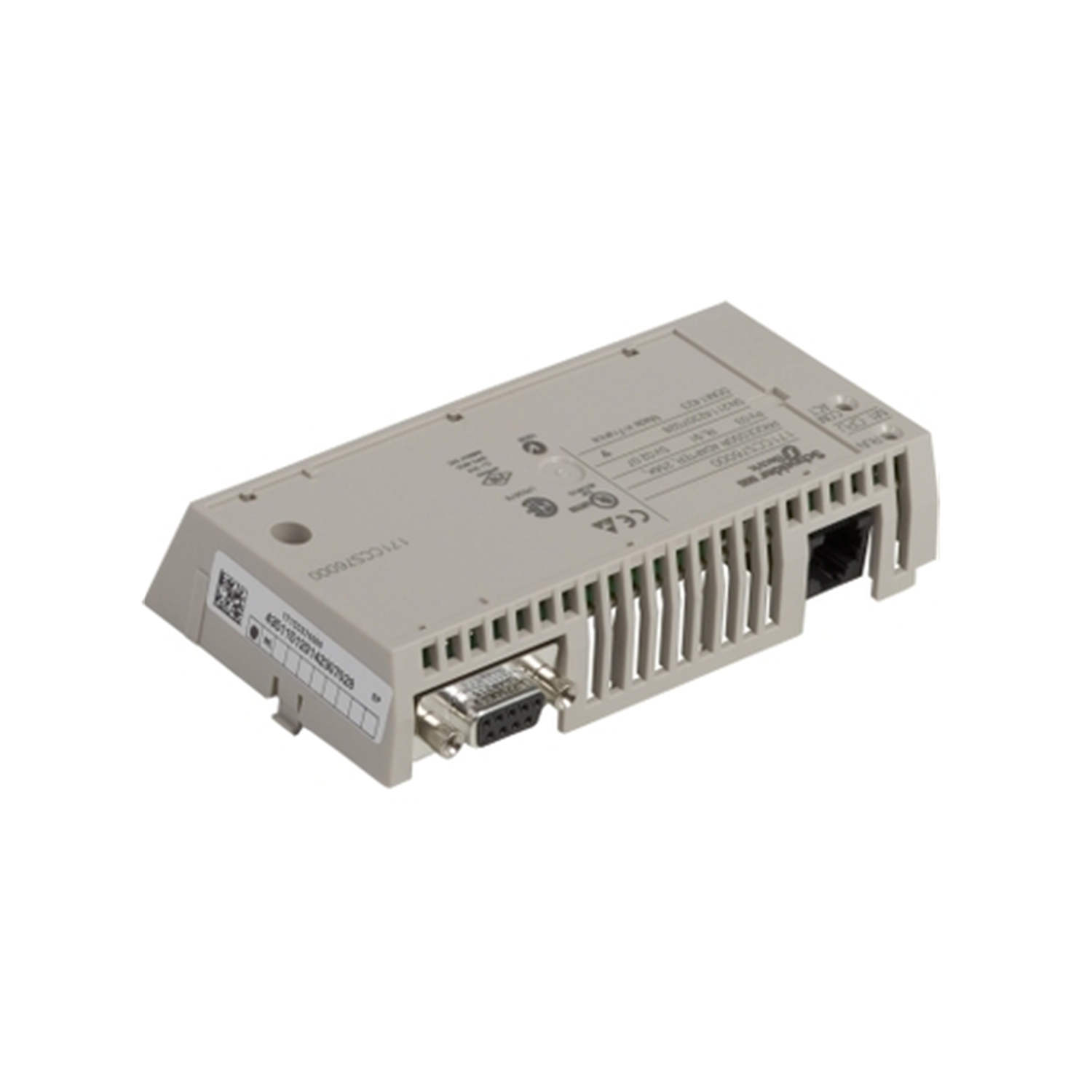

The Schneider Electric 171CCS76000 is a processor adapter module within the Modicon Momentum series designed for efficient automation tasks. Offering 256 kilobytes of RAM, this device operates with a supply voltage of 5 volts DC.
Description
| Note | Schneider Electric’s 171CCS76000 functions as an M1/M1E processor adapter module compatible with the Modicon Momentum platform. It utilizes both flash memory and RAM, providing a capacity of 256 kilobytes to support various programming and processing needs. This device is powered by a 5-volt DC rated supply voltage, ensuring compatibility with standard power sources. The communication capabilities of this module include one RS-232C Modbus port and an input/output bus port, facilitating effective integration with other devices in industrial automation setups. Designed for responsiveness, it boasts a clock frequency of 32 megahertz, contributing to a scan time of 0.63 milliseconds per kilobyte, which is essential for timely processing in control applications. For processing tasks, the module can accommodate up to 4,096 words for register input/output operations and can manage 8,192 bits for input/output limit processing. It operates efficiently within an ambient temperature range from 0 to 60°C in non-condensing environments, making it suitable for a variety of industrial conditions. Moreover, its storage temperature capabilities range from -40°C to 85°C, ensuring the module remains functional and reliable even in extreme environments. At a weight of 0.09 pounds (0.042 kilograms), this module is lightweight and easy to integrate into existing systems. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1/M1E processor adaptor |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 Communication Port Protocol Modbus Processor name X 86 based (INTEL, AMD) |
| Clock frequency | 32 MHz |
Complementary
| Discrete I/O processor capacity | 2048 I/2048 O |
|---|---|
| Memory Type | 256 kB flash 256 kB RAM |
| Memory description | Program memory 12 kB LL984 Program memory 160 kB IEC Data 4 kB Material Lexan Word length 16 bit [Us] rated supply voltage 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 4096 words total |
| I/O limit processor capacity | 8192 bits max |
| I/O words/drop | 128 I/O Concept 80 I/O ProWORX |
| Number of port | 1 I/O bus 1 RS232C non isolated |
| Marking | CE |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| Vibration resistance | 1 gn 0.75 mm d.a |
| Product Certifications | FM Class 1 Division 2 cUL |
| Nema type 250 | UL |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3595861147812 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.2 in (26 cm) |
| Package weight(Lbs) | 7.3 oz (206 g) |
