171CCC98030
Schneider Electric
Overview

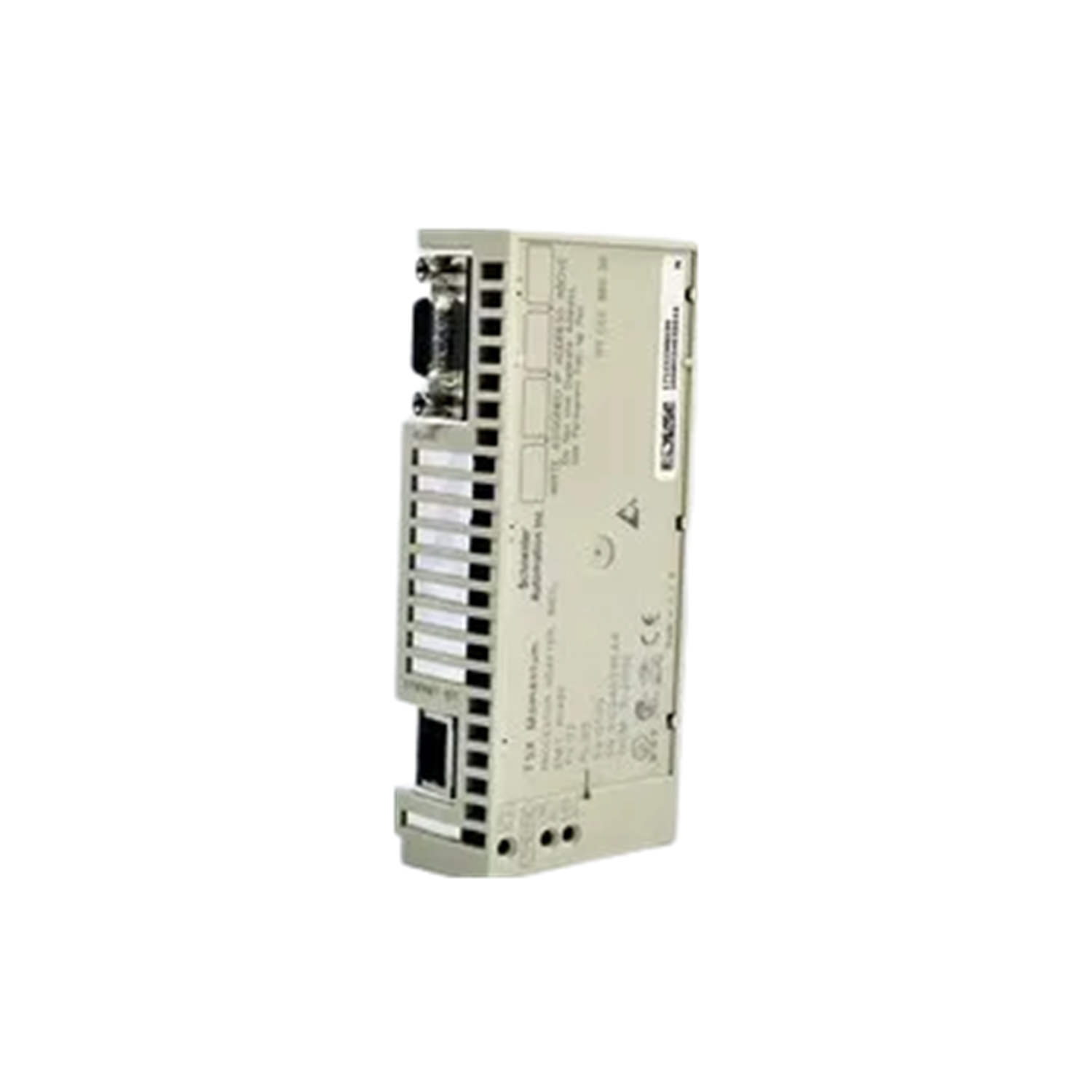

The 171CCC98030 is a M1/M1E processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It executes control logic for the Schneider Electric automation portfolio architectures and operates from a 5 Volts DC supply.
Application & Technical Notes
As a m1/m1e processor adaptor, the 171CCC98030 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 5 Volts DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…96 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 171CCC98030, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 171CCC98030?
The 171CCC98030 is a m1/m1e processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1/M1E processor adaptor.
What are the key technical ratings of the 171CCC98030?
Its published highlights include 5 Volts DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 171CCC98030 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 171CCC98030 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 171CCC98030?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 171CCC98030 is a M1/M1E processor adapter module crafted for robust control applications. With a clock frequency of 50 megahertz, it ensures quick processing capabilities within operational settings.
Description
| Note | The 171CCC98030 from Schneider Electric is an M1/M1E processor adapter module, engineered for effective integration in control environments. This module contains dual communication ports, specifically one RS-485 and another Ethernet port, facilitating flexibility in setup. It operates efficiently under ambient temperatures ranging from 0 to 60°C and can endure storage conditions of -40 to 85°C without compromising performance. Equipped with a clock frequency of 50 megahertz, this module excels in processing speed. It offers a word length of 16 bits and ensures rapid functionalities with a scan time of 0.3 milliseconds per kilobyte. The communication capabilities support popular protocols such as Ethernet and Modbus, enhancing connectivity options. The memory configuration is split between flash memory, allowing 1 megabyte of storage, and random access memory, capped at 544 kilobytes. The processing capacities are substantial, with the maximum register input/output processor capacity totaling 26,048 words and discrete input/output capacity reaching 8,192 bits. Operating from a supply voltage of 5 volts DC, the 171CCC98030 is a dependable choice for industrial automation tasks. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1/M1E processor adaptor Concept Transparent Ready Level or class Class B10 |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 Communication Port Protocol Ethernet Modbus Processor name X 86 based (INTEL, AMD) IEC executive |
| Clock frequency | 50 MHz |
Complementary
| Web services | Web page loader software tool Web page loader |
|---|---|
| Rack viewer | Data editor |
| Ethernet service | I/O scanning Modbus TCP messaging |
| Discrete I/O processor capacity | 8192 I/8192 O |
| Memory Type | 1 MB flash 544 kB RAM |
| Memory description | Program memory 18 kB LL984 Program memory 200 kB IEC |
| Data 24 kB | Material Lexan Word length 16 bit [Us] rated supply voltage 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O limit processor capacity | I/O local on Modbus |
| Number of port | 1 RS485 1 ETHERNET |
| Marking | CE |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| Vibration resistance | 0.75 mm d.a 1 gn |
| Product Certifications | N/A |
| Nema type 250 | UL cUL FM Class 1 Division 2 |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595862000543 |
| Returnability | No |
| Country of origin | US |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.2 in (26 cm) |
| Package weight(Lbs) | 7.1 oz (202 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
