171CCC96030C
Schneider Electric
Overview

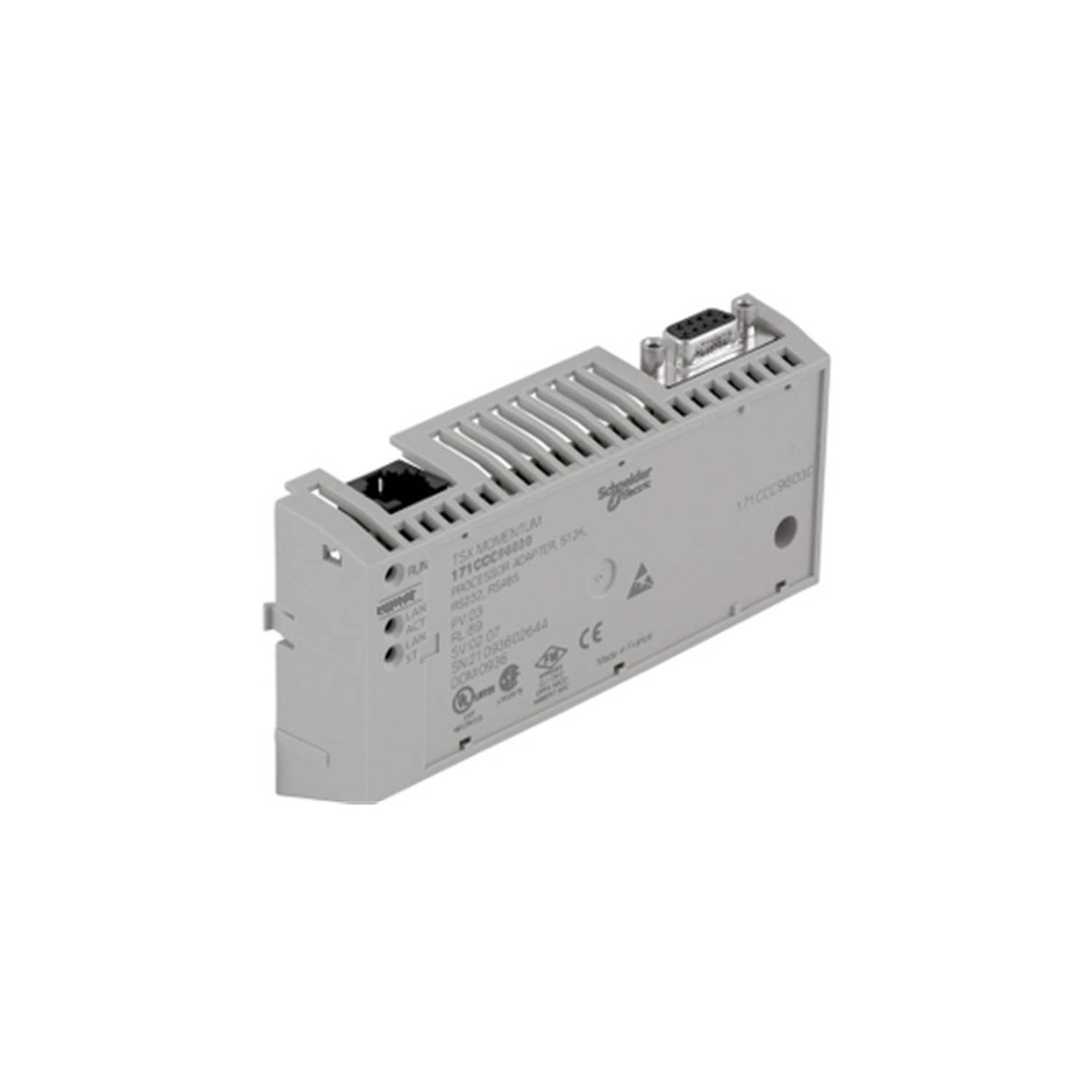

The 171CCC96030C is a M1/M1E processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a m1/m1e processor adaptor, the 171CCC96030C is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…96 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 171CCC96030C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 171CCC96030C?
The 171CCC96030C is a m1/m1e processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1/M1E processor adaptor.
What are the key technical ratings of the 171CCC96030C?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 171CCC96030C mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 171CCC96030C compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 171CCC96030C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 171CCC96030C is a processor adaptor designed for the Modicon Momentum series. This component integrates an Ethernet port and operates effectively with a clock frequency of 50 MHz, making it suitable for various control applications.
Description
| Note | The 171CCC96030C from Schneider Electric serves as a processor adaptor within the Modicon Momentum line. This component is equipped with an Ethernet port, facilitating network communications for versatile control scenarios. Operating at a clock frequency of 50 MHz, it provides reliable performance. Designed to work in a temperature range spanning from 0 to 40 degrees Celsius, the unit also withstands storage conditions of 0 to 50 degrees Celsius. Its performance is robust in clean indoor environments, where no corrosive chemicals are present. The device can operate efficiently at altitudes reaching up to 1000 meters above sea level. Humidity tolerance is rated at a maximum of 80% relative humidity without condensation, ensuring stable functionality in various conditions. Both I/O scanning and Modbus TCP messaging capabilities are supported, adding to its functionality. The processor adaptor is backed by 512 KB of flash memory alongside 512 KB of RAM, giving it sufficient resources for effective data processing. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1/M1E processor adaptor Concept Transparent Ready Level or class Class B10 |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 Communication Port Protocol Ethernet Processor name X 86 based (INTEL, AMD) |
| Clock frequency | 50 MHz |
Complementary
| Web services | Data editor Web page loader software tool |
|---|---|
| Rack viewer | Web page loader |
| Ethernet service | I/O scanning Modbus TCP messaging |
| Discrete I/O processor capacity | 8192 I/8192 O |
| Memory Type | 512 KB flash 512 KB RAM |
| Memory description | Program memory 18 kB LL984 Program memory 200 kB IEC |
| Data 24 kB | Material Lexan Word length 16 bit [Us] rated supply voltage 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O words/drop | 128 I/O Concept 80 I/O ProWORX |
| Number of port | 1 I/O bus 1 ETHERNET |
| Marking | CE |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration vibration resistance 1 gn 0.75 mm d.a |
| Product Certifications | FM Class 1 Division 2 UL cUL |
| Nema type 250 | N/A |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3595863804393 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
