171CCC96030
Schneider Electric
Overview

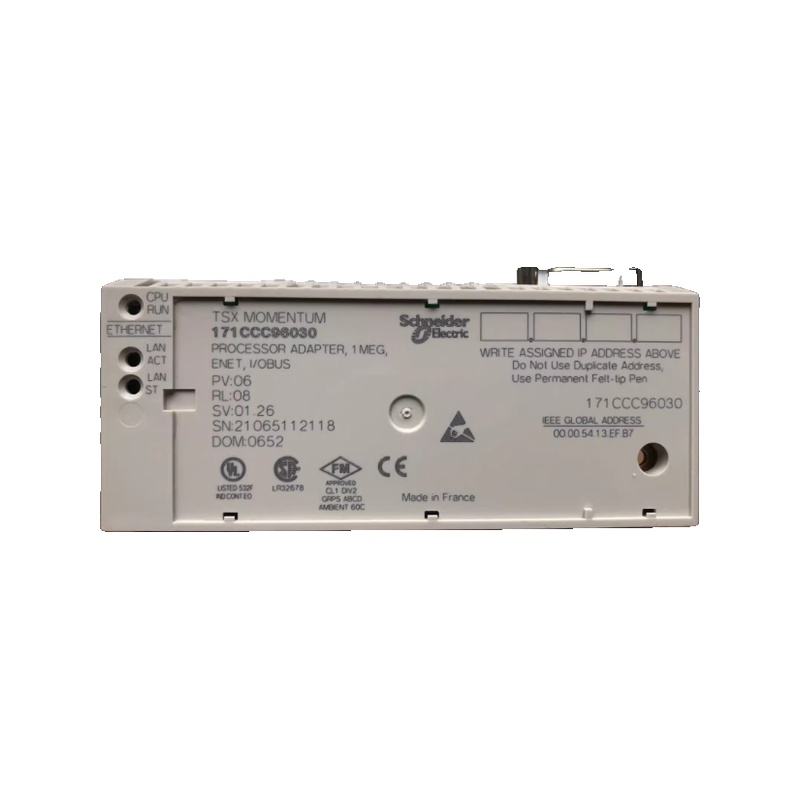

The 171CCC96030 is a M1/M1E processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It executes control logic for the Schneider Electric automation portfolio architectures and operates from a 5 Volts DC supply.
Application & Technical Notes
As a m1/m1e processor adaptor, the 171CCC96030 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 5 Volts DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…96 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 171CCC96030, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 171CCC96030?
The 171CCC96030 is a m1/m1e processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1/M1E processor adaptor.
What are the key technical ratings of the 171CCC96030?
Its published highlights include 5 Volts DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 171CCC96030 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 171CCC96030 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 171CCC96030?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 171CCC96030 is an M1/M1E Processor Adapter Module from Schneider Electric’s Modicon Momentum series, functioning effectively at a clock frequency of 50 megahertz. It employs Ethernet as its communication protocol, enhancing connectivity options for integration into automation systems.
Description
| Note | Schneider Electric’s 171CCC96030, classified as an M1/M1E Processor Adapter Module, operates at a clock frequency of 50 megahertz. This unit employs Ethernet as its communication protocol, ensuring reliable connectivity in an industrial setting. It comes equipped with 1 megabyte of flash memory alongside 544 kilobytes of RAM, providing adequate storage for operational needs. The capacity for register input/output processing extends to 26,048 words at a 16-bit word length, making it suitable for various applications. The module features a scan time of 0.3 milliseconds per kilobyte, allowing for rapid data processing. Operating efficiently within an ambient temperature range from 0 to 60°C, this device is intended for use in non-condensing environments. Additionally, its storage temperature range reaches from -40 to 85°C, offering flexibility in installation and use. With a rated supply voltage of 5 volts DC, it is designed for low power consumption. The 171CCC96030 consists of one Ethernet communication port and one input/output bus port, facilitating effective integration into broader control systems. It is lightweight, at just 0.09 pounds (0.042 kilograms), and is designed to function at operating altitudes of less than 6,561 feet (2,000 meters). This combination of features renders the 171CCC96030 a capable component for advanced automation configurations. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1/M1E processor adaptor Concept Transparent Ready Level or class Class B10 |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 Communication Port Protocol Ethernet Processor name X 86 based (INTEL, AMD) IEC executive |
| Clock frequency | 50 MHz |
Complementary
| Web services | N/A |
|---|---|
| Rack viewer | Web page loader software tool Web page loader Data editor |
| Ethernet service | I/O scanning Modbus TCP messaging |
| Discrete I/O processor capacity | 8192 I/8192 O |
| Memory Type | 1 MB flash 544 kB RAM |
| Memory description | Program memory 18 kB LL984 Program memory 200 kB IEC |
| Data 24 kB | Material Lexan Word length 16 bit [Us] rated supply voltage 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O limit processor capacity | 8192 bits max |
| I/O words/drop | 128 I/O Concept 80 I/O ProWORX |
| Number of port | 1 I/O bus 1 ETHERNET |
| Marking | CE |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| Vibration resistance | 1 gn 0.75 mm d.a |
| Product Certifications | UL |
| Nema type 250 | cUL FM Class 1 Division 2 |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3595862000550 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.4 in (6 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.2 in (26 cm) |
| Package weight(Lbs) | 6.9 oz (197 g) |
