171CCC96020
Schneider Electric
Overview

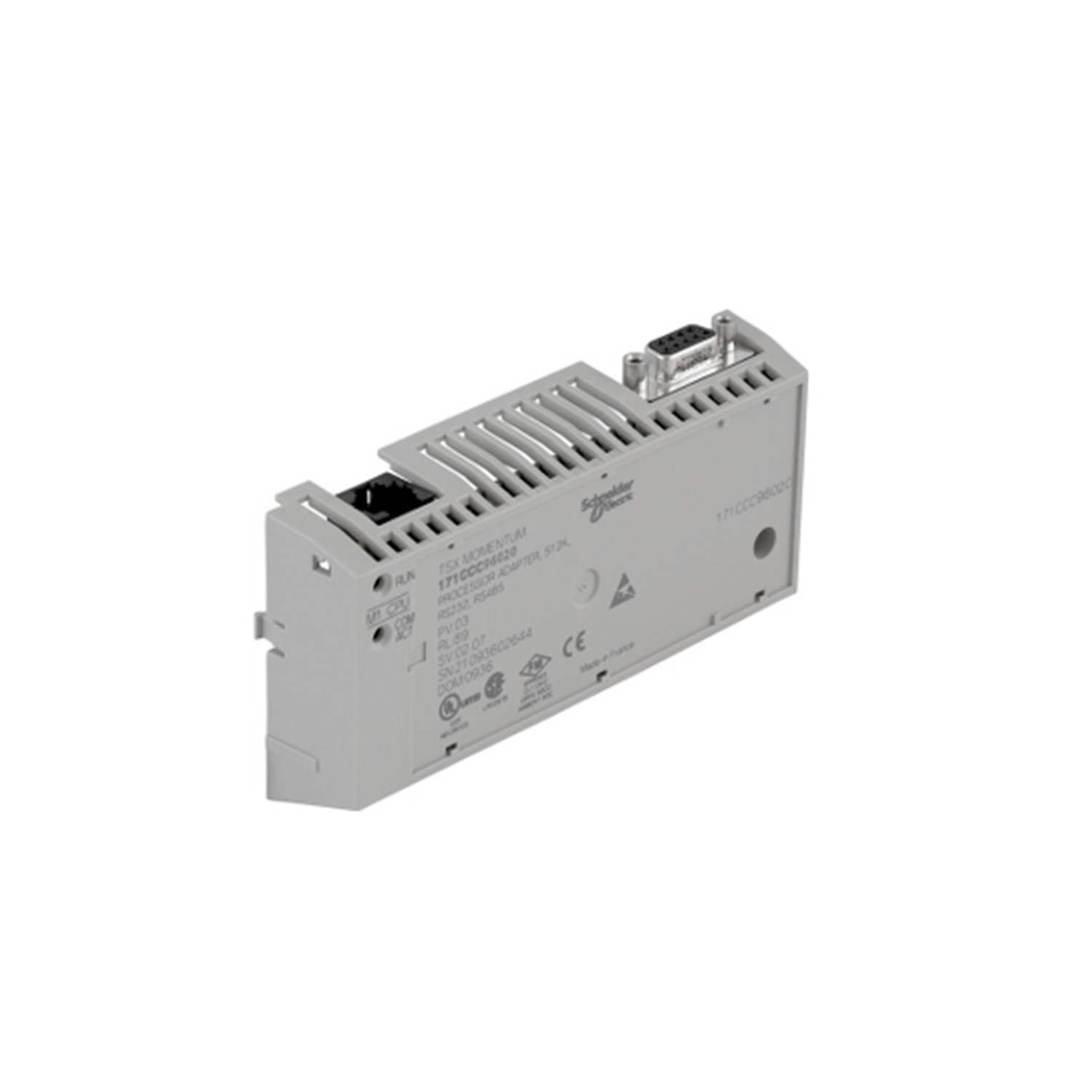

The 171CCC96020 is a M1/M1E processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the the Schneider Electric automation portfolio ecosystem.
Application & Technical Notes
As a m1/m1e processor adaptor, the 171CCC96020 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…96 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 171CCC96020, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 171CCC96020?
The 171CCC96020 is a m1/m1e processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1/M1E processor adaptor.
What are the key technical ratings of the 171CCC96020?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 171CCC96020 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 171CCC96020 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 171CCC96020?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 171CCC96020 from Schneider Electric is a processor adapter module designed for the Modicon Momentum series. It supports Ethernet communication and features a dual-port architecture, allowing for integrated I/O operations.
Description
| Note | The Schneider Electric 171CCC96020 serves as an M1/M1E processor adapter module within the Modicon Momentum series, facilitating communication and processing tasks in industrial settings. This module incorporates one Ethernet port alongside an input/output bus port, allowing for versatile connectivity. It operates on a clock frequency of 50 megahertz, ensuring rapid data handling capabilities. In terms of memory, it provides a flash memory capacity of 512 kilobytes as well as a RAM capacity of 544 kilobytes, which can be utilized for storing essential data and instructions. Designed to perform in ambient temperatures ranging from 0 to 60°C, the unit remains effective in challenging environments, provided they are non-condensing. Additionally, it is capable of withstanding storage conditions between -40 and 85°C. The processor's capacity allows for handling input/output limits, with a maximum of 8,192 bits and a register input/output capacity of 26,048 words. With a scan rate of 0.3 milliseconds per kilobyte, the efficiency of this module is reinforced. The seamless integration of flash memory and RAM contributes to its reliability and robust performance in automated control applications. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1/M1E processor adaptor Concept Transparent Ready Level or class Class B10 |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 Communication Port Protocol Ethernet Processor name X 86 based (INTEL, AMD) |
| Clock frequency | 50 MHz |
Complementary
| Web services | Web page loader software tool |
|---|---|
| Rack viewer | Data editor Web page loader |
| Ethernet service | I/O scanning Modbus TCP messaging |
| Discrete I/O processor capacity | 8192 I/8192 O |
| Memory Type | 512 KB flash 544 kB RAM |
| Memory description | Program memory 18 kB LL984 |
| Data 24 kB | Material Lexan Word length 16 bit [Us] rated supply voltage 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O limit processor capacity | 8192 bits max |
| I/O words/drop | 128 I/O Concept 80 I/O ProWORX |
| Number of port | 1 I/O bus 1 ETHERNET |
| Marking | CE |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| Vibration resistance | 0.75 mm d.a 1 gn |
| Product Certifications | N/A |
| Nema type 250 | FM Class 1 Division 2 cUL UL |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
