171CCC76010
Schneider Electric
Overview

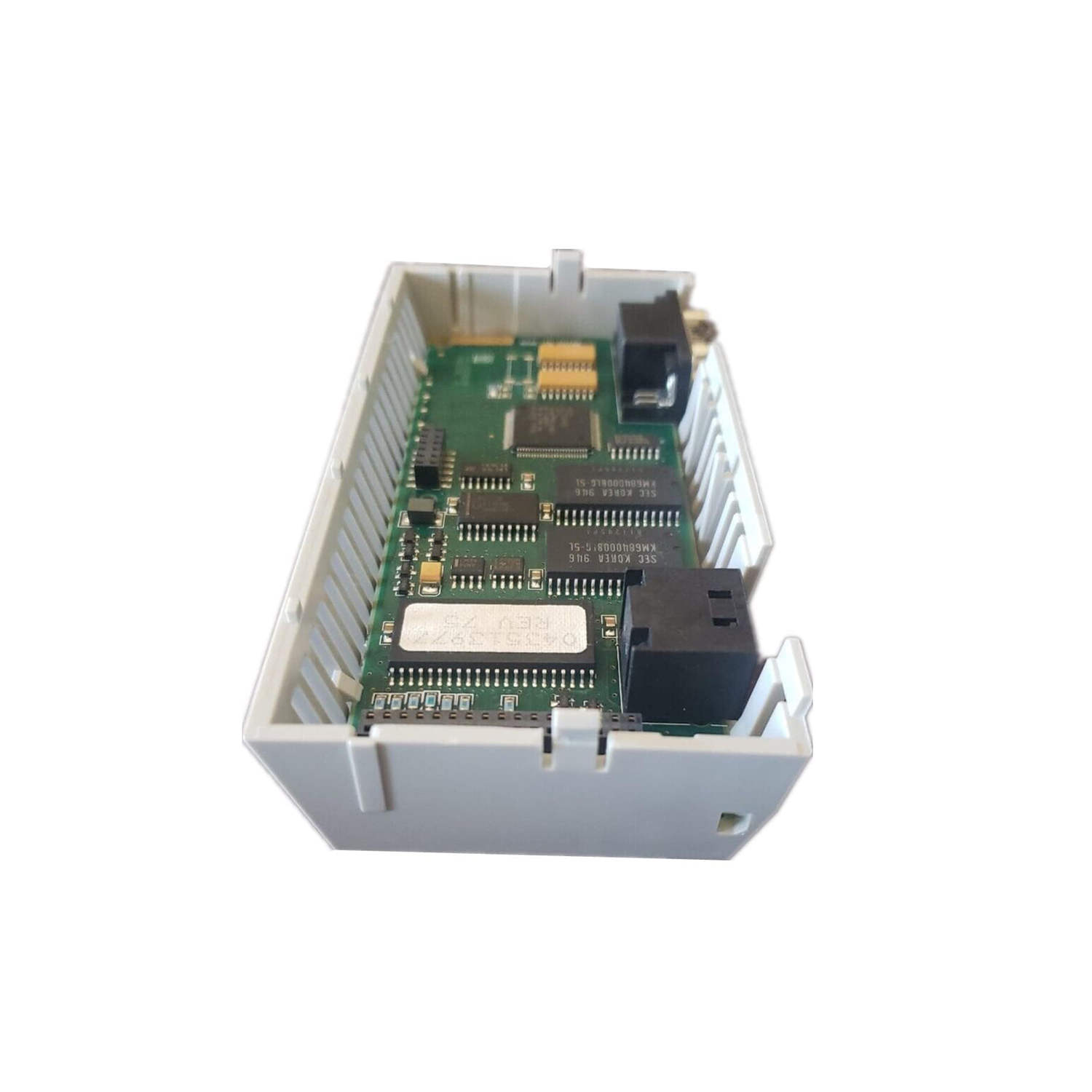

The 171CCC76010 is a M1/M1E processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It executes control logic for the Schneider Electric automation portfolio architectures and operates from a 5 Volts DC supply.
Application & Technical Notes
As a m1/m1e processor adaptor, the 171CCC76010 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 5 Volts DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 5…96 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 171CCC76010, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 171CCC76010?
The 171CCC76010 is a m1/m1e processor adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1/M1E processor adaptor.
What are the key technical ratings of the 171CCC76010?
Its published highlights include 5 Volts DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 171CCC76010 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 171CCC76010 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 171CCC76010?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 171CCC76010 is a processor adapter module designed for the Modicon Momentum series. This compact unit operates within specified temperature limits and communicates using the Modbus protocol.
Description
| Note | The 171CCC76010 module from Schneider Electric is an adapter designed for M1 and M1E processors within the Modicon Momentum range. This device functions effectively in environments with temperatures varying from 0 to 60°C, provided that humidity levels do not lead to condensation. Operating with a clock frequency of 32 MHz, it supports program memory capacity options of 18 kilobytes and 240 kilobytes, making it suitable for a range of applications. Data memory capacity for this module is established at 4 kilobytes, enabling necessary data storage for operational tasks. The device is capable of handling an input/output processor limit up to 8,192 bits. Notably, it executes 1,000 instructions in precisely 1 millisecond, which is efficient for real-time applications. The module operates at a rated supply voltage of 5 VDC and utilizes flash memory along with Random Access Memory (RAM), providing a total memory capacity of 512 kilobytes. The word length for this module is standard at 16 bits, delivering compatibility with most data-handling operations. For communications, it incorporates one non-isolated RS-232C port as well as a dedicated Input/Output bus port, accommodating versatile interfacing needs. In terms of environmental resilience, it also survives storage conditions ranging from -40°C to 85°C, ensuring reliability across various settings. Weighing in at only 0.09 pounds (0.042 kilograms), this lightweight module is designed for ease of integration into control systems. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1/M1E processor adaptor |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 Communication Port Protocol Modbus Processor name X 86 based (INTEL, AMD) |
| Clock frequency | 32 MHz |
Complementary
| Discrete I/O processor capacity | 8192 I/8192 O |
|---|---|
| Memory Type | 512 KB flash 512 KB RAM |
| Memory description | Program memory 18 kB LL984 Program memory 240 kB IEC |
| Data 24 kB | Material Lexan Word length 16 bit [Us] rated supply voltage 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O limit processor capacity | 8192 bits max |
| I/O words/drop | 128 I/O Concept 80 I/O ProWORX |
| Number of port | 1 I/O bus 1 RS232C non isolated |
| Marking | CE |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| Vibration resistance | 0.75 mm d.a 1 gn |
| Product Certifications | FM Class 1 Division 2 UL |
| Nema type 250 | cUL |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3595860010728 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.2 in (26 cm) |
| Package weight(Lbs) | 7.6 oz (215 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
