170XTS04200
Schneider Electric
Overview

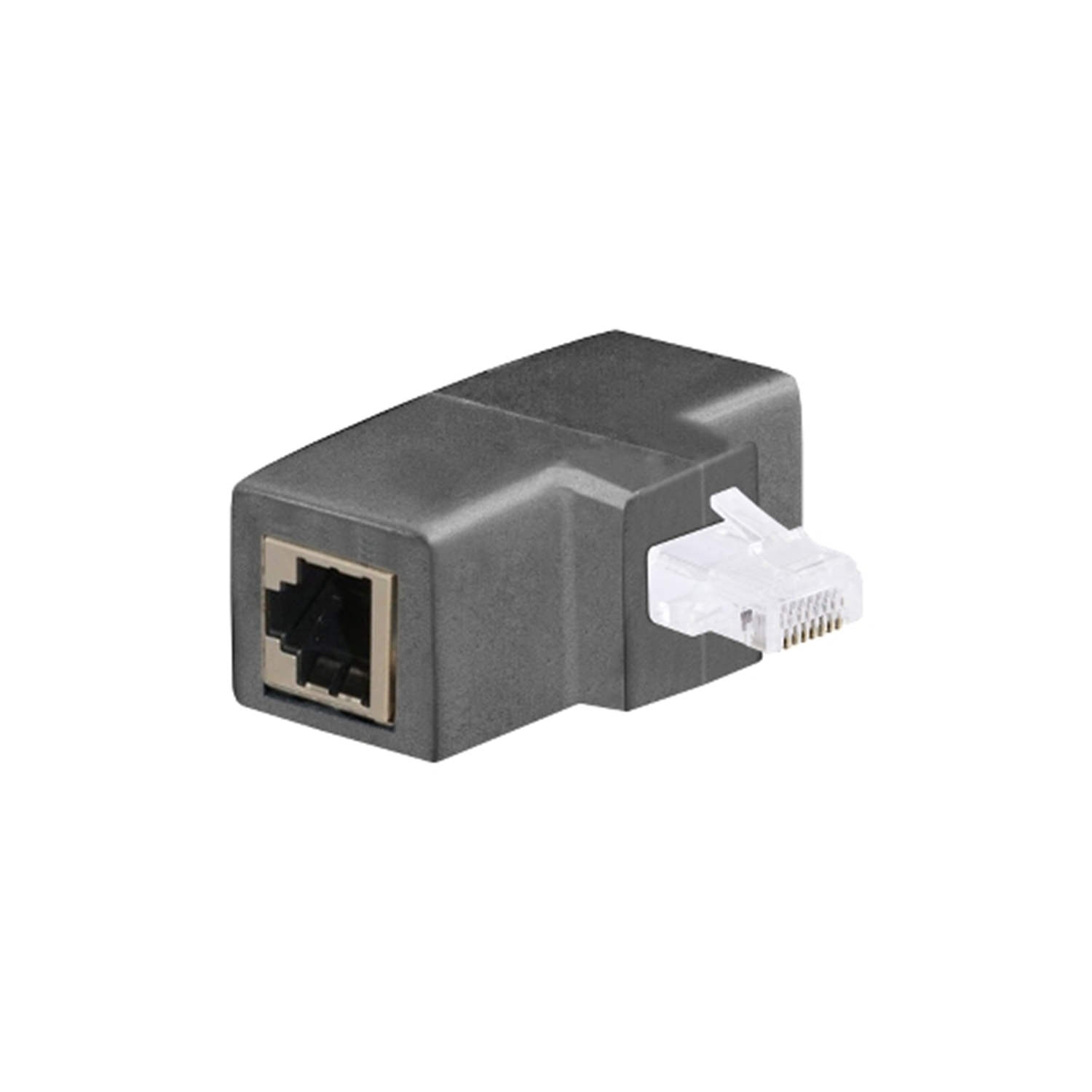

The 170XTS04200 is a Shunt Plug in the Modicon Momentum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a shunt plug, the 170XTS04200 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170XTS04200, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170XTS04200?
The 170XTS04200 is a shunt plug in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Shunt Plug.
What are the key technical ratings of the 170XTS04200?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 170XTS04200 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170XTS04200 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170XTS04200?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170XTS04200 shunt plug from Schneider Electric is designed for use in Modicon Momentum systems. Compact and efficient, this device facilitates effective operations in various environmental conditions.
Description
| Note | The 170XTS04200 model is a shunt plug by Schneider Electric, crafted for implementation in the Modicon Momentum lineup. This device measures 0.79 inches in height, 4.92 inches in width, and extends 7.48 inches in length, all while weighing a mere 8.0 grams, making it lightweight and easy to incorporate into systems. It is CE certified, reflecting compliance with established safety standards. In terms of environmental ratings, the shunt plug can endure ambient temperatures anywhere from 0 degrees Celsius to a maximum of 60 degrees Celsius, ensuring stable performance across varying conditions. For humidity, it permits levels up to 95% relative humidity, provided that it does not condense. The plug functions efficiently without additional cooling requirements as it relies on natural cooling methods. This device is also capable of operating at altitudes not exceeding 1000 meters, allowing for flexibility in installation locations. The 170XTS04200 shunt plug is well-suited for various applications that require reliable and consistent connectivity in industrial environments. Accessory / separate part designation RS485 Multi-master RJ45 shunt plug Accessory / Separate Part Type Shunt plug |
|---|---|
| Accessory / separate part category | Connection accessories |
| Range Compatibility | Modicon Quantum automation platform Modicon Momentum automation platform Quantity per Set Set of 2 |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3595860027108 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.8 in (2.0 cm) |
| Package 1 Width | 4.9 in (12.5 cm) |
| Package 1 Length | 7.5 in (19.0 cm) |
| Package weight(Lbs) | 0.3 oz (8.0 g) |
