170XTS00301
Schneider Electric
Overview

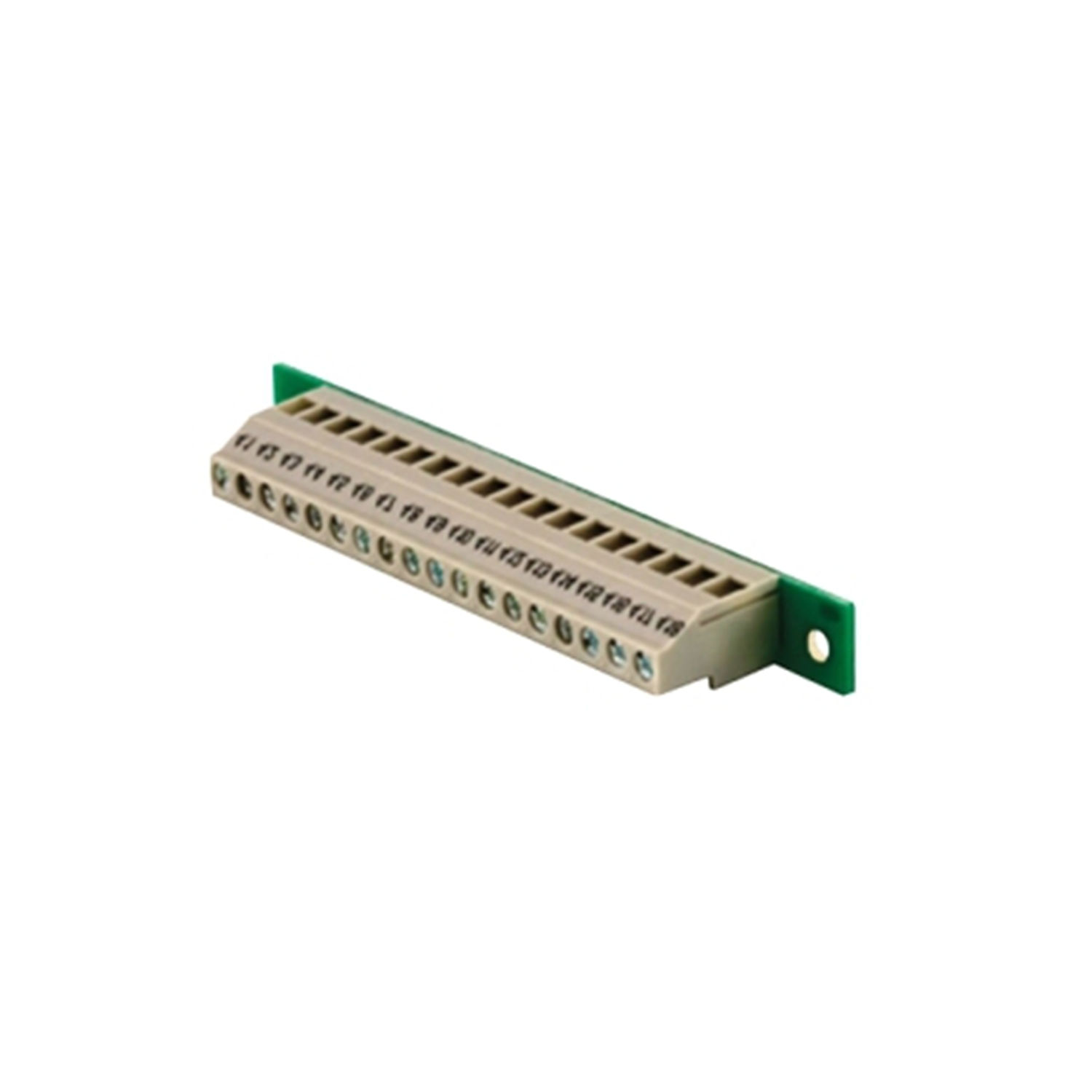

The 170XTS00301 is a Terminal Connector Kit in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a terminal connector kit, the 170XTS00301 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170XTS00301, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170XTS00301?
The 170XTS00301 is a terminal connector kit in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Terminal Connector Kit.
What are the key technical ratings of the 170XTS00301?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 170XTS00301 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170XTS00301 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170XTS00301?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170XTS00301 terminal connector kit from Schneider Electric’s Modicon Momentum series is designed for effective connectivity. With dimensions measuring 1.42 inches in height, 2.24 inches in width, and 5.05 inches in length, this kit weighs 110 grams and is compliant with CE standards.
Description
| Note | The Schneider Electric 170XTS00301 is a terminal connector kit that emphasizes practicality and durability for industrial applications. This kit is compact, with its height measuring at 1.42 inches, a width of 2.24 inches, and a length of 5.05 inches. It has a weight of just 110 grams, making it lightweight yet sufficient for its intended purpose. This connector kit is certified to meet CE standards, ensuring adherence to necessary quality and safety regulations. Operationally, the unit can handle ambient temperatures ranging from 0 to 60 degrees Celsius, allowing it to function effectively in various environmental conditions. The maximum relative humidity it can endure is 95% (non-condensing), signifying its capability in moist environments. Furthermore, the kit is designed to be utilized at altitudes up to 1000 meters above sea level. The cooling mechanism is designed for natural convection; thus, it requires no additional active cooling source. Such features render the 170XTS00301 terminal connector kit a reliable choice for providing secure connections in any system. |
|---|---|
| Range of Product | Modicon Momentum automation platform Accessory / separate part designation Busbar 3 rows Accessory / Separate Part Type Busbar |
| Accessory / separate part category | Connection accessories Accessory / separate part destination Discrete I/O base Analog I/O base Product Specific Application Provides a common connection for the field devices Serves as protective distribution connector |
| Connections - Terminals | Spring type terminals Number of horizontal rows 3 |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595861147904 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.4 in (3.6 cm) |
| Package 1 Width | 2.2 in (5.7 cm) |
| Package 1 Length | 5.04 in (12.8 cm) |
| Package weight(Lbs) | 3.9 oz (110 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 5.9 in (15 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 12.90 lb(US) (5.85 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
