170XCP20000
Schneider Electric
Overview

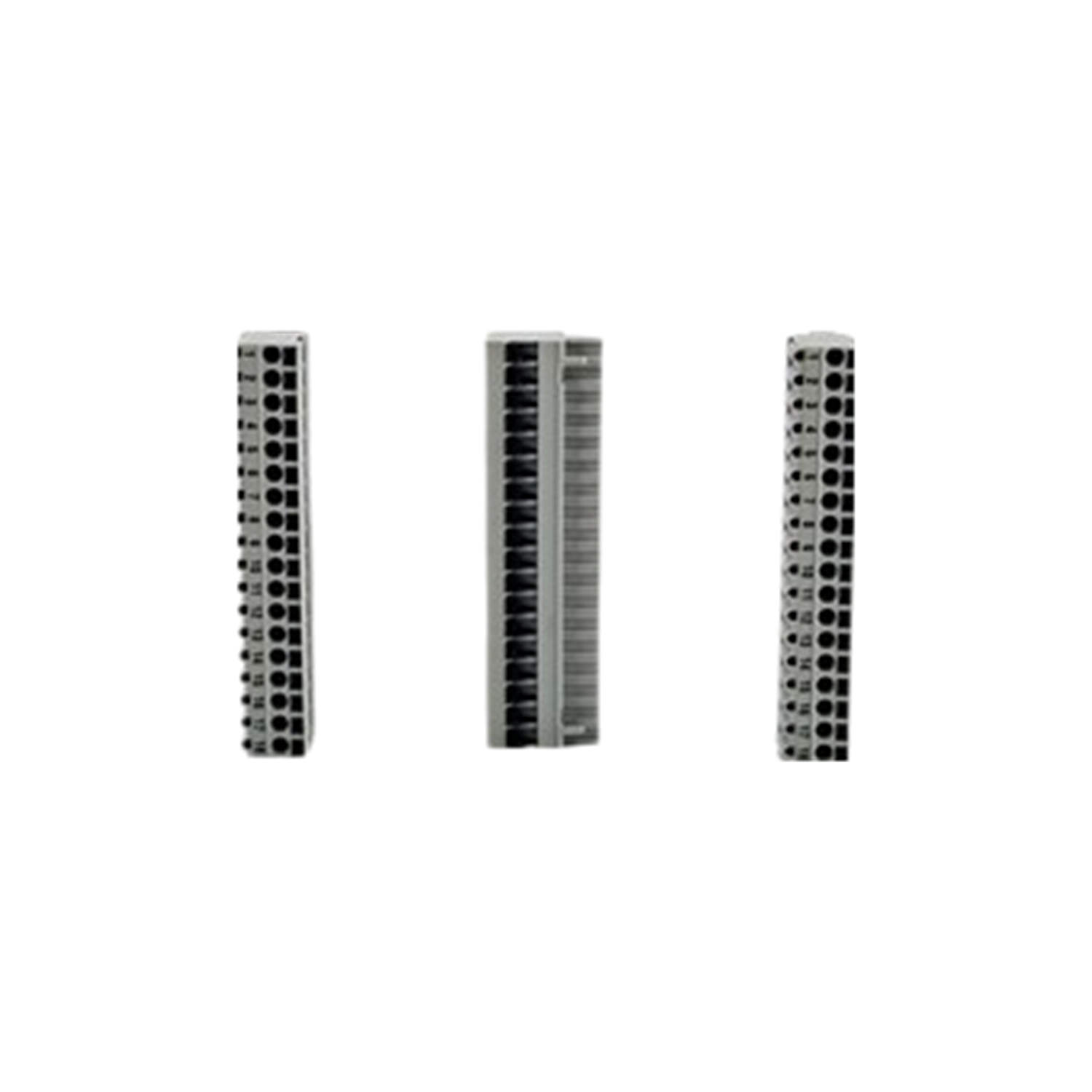

The 170XCP20000 is a Cable Coding Kit in the Modicon Momentum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a cable coding kit, the 170XCP20000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170XCP20000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170XCP20000?
The 170XCP20000 is a cable coding kit in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Cable Coding Kit.
What are the key technical ratings of the 170XCP20000?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 170XCP20000 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170XCP20000 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170XCP20000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170XCP20000 is a cable coding kit from the Modicon Momentum series, designed with compact dimensions of 1.18 inches in height, 4.33 inches in width, and 9.84 inches in length. It adheres to CE standards and is suitable for applications with natural cooling, operating effectively at ambient temperatures ranging from 0 to 60 degrees Celsius.
Specifications
| Product Line | Modicon Momentum |
|---|---|
| Height | 1.18 inches |
| Width | 4.33 inches |
| Length | 9.84 inches |
| Standard | Compliance CE |
| Cooling | Natural |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
