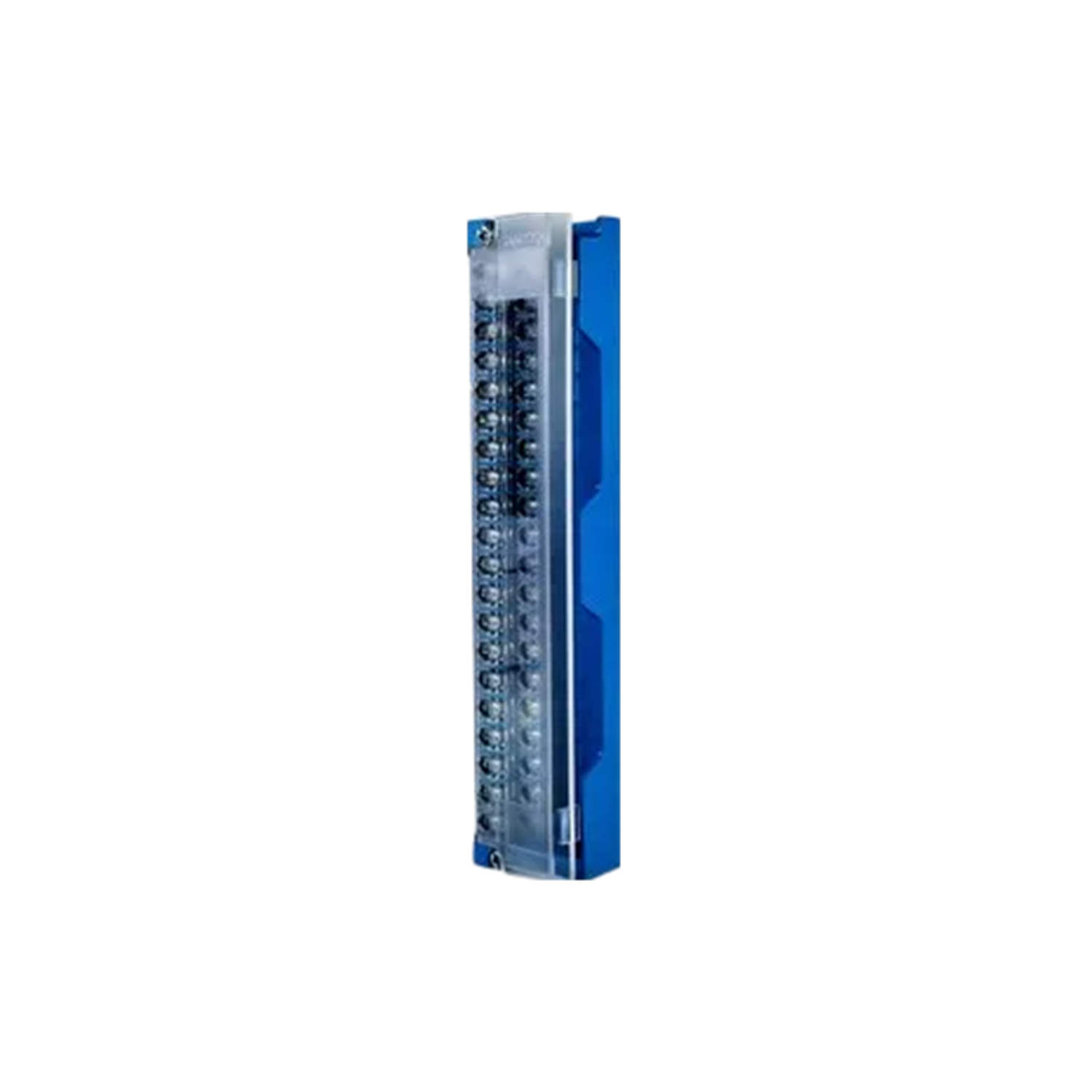

140XTS33200
Schneider Electric
Overview
The 140XTS33200 is an Input/Output Connector in the Modicon Quantum automation platform range from Schneider Electric. It provides 8 channels channels and is built for signal interfacing within Modicon Quantum systems.
Application & Technical Notes
As an input/output connector, the 140XTS33200 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 8 channels channels. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140XTS33200, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140XTS33200?
The 140XTS33200 is an input/output connector in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Input/Output Connector.
What are the key technical ratings of the 140XTS33200?
Its published highlights include 8 channels channels. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140XTS33200 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140XTS33200 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140XTS33200?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140XTS33200 is an 8-channel input/output connector belonging to the Modicon Quantum series. This connector features a total of 40 pins and is designed for compatibility with several modules, including the 140AII33000 and 140DII33000.
Complementary
| Product Compatibility | 140AII33000 140DII33000 140DIO33000 140AII33010 140AIO33000 Pin number 40 pins Color Blue |
|---|---|
| Net Weight | 0.33 lb(US) (0.15 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|
Description
| Note | The 140XTS33200 by Schneider Electric serves as a key input/output connector within the Modicon Quantum series. Featuring 40 pins, this connector is constructed to be intrinsically safe. It weighs 0.33 pounds (0.15 kg) and comes with an IP20 protection rating, making it suitable for internal applications without exposure to moist or harsh environmental conditions. This model supports up to 8 channels, which allow for various signal connections. Its design includes galvanic isolation between each channel, enhancing operational safety by preventing electrical interference among signals. The 140XTS33200 is compatible with multiple modules, such as the 140AII33000, 140DII33000, 140DIO33000, 140AII33010, and 140AIO33000, enabling seamless integration into existing systems. General applications of this connector extend across multiple industries, including HVAC systems, automotive testing, boilers, furnaces, food processing, and power plant operations. Its terminal strip features a blue color code for easy identification and organization, aiding installation and maintenance. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
