140XTS10215
Schneider Electric
Overview
The 140XTS10215 is an of Cable Pigtail in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As an of cable pigtail, the 140XTS10215 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of Range 0 to 40 degrees Celsius. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (Range 0 to 40 degrees Celsius); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140XTS10215, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140XTS10215?
The 140XTS10215 is an of cable pigtail in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: of Cable Pigtail.
What are the key technical ratings of the 140XTS10215?
Its published highlights include operating temperature Range 0 to 40 degrees Celsius. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140XTS10215 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140XTS10215 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140XTS10215?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

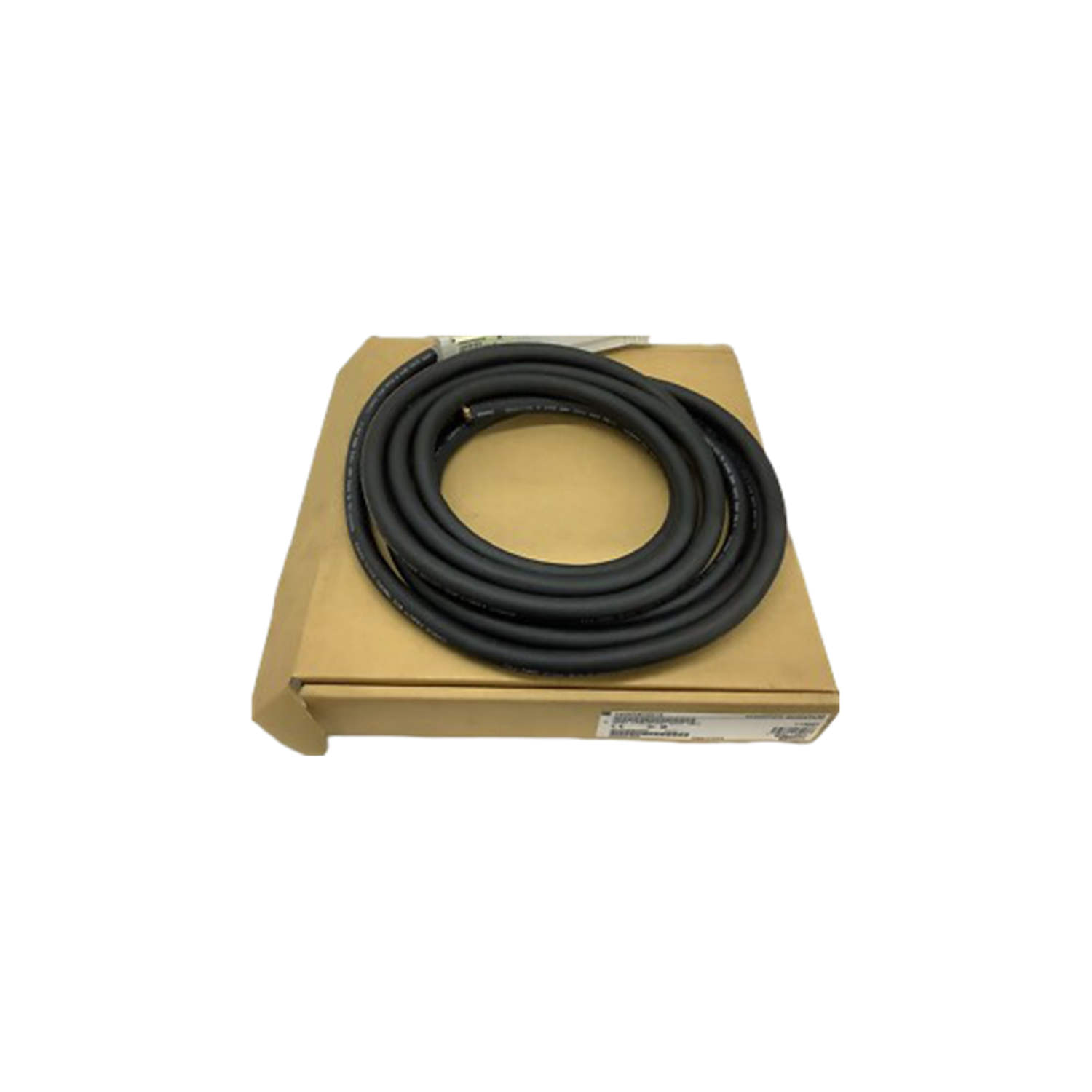

The 140XTS10215 system cable from Schneider Electric's Modicon Quantum series is designed for reliable performance in high-power applications. This cable measures 4.6 meters in length and features 40 color-coded pigtail leads for easy identification and connection.
Description
| Note | Schneider Electric's 140XTS10215 stands out as a high-grade system cable within the Modicon Quantum series. Measuring 4.6 meters, this pigtail cable is built for high power applications and integrates seamlessly into related systems. It includes a single connector meant for Quantum I/O connections along with 40 distinct color-coded pigtail leads. This feature simplifies setup and promotes organized wiring. Weighing in at 4.5 lbs, the cable is compact enough for flexible installation without sacrificing performance. It is engineered for ambient conditions, with a workable temperature span from 0 to 40 degrees Celsius. The 140XTS10215 has a maximum allowed humidity of 80% without condensation, ensuring reliable functionality in various working environments. Furthermore, this system cable can operate efficiently at altitudes reaching 1000 meters above sea level without any drop in performance, making it robust for diverse applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
