140XCA71709
Schneider Electric
Overview
The 140XCA71709 is a Backplane expander cable in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a backplane expander cable, the 140XCA71709 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It mechanically and electrically unifies the controller, power supply and I/O modules, providing the backplane bus and mounting structure.
Key published characteristics include a 24V DC rating, an operating temperature range of -20°C to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-20°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Seat every module firmly on the backplane, observe module order where required, and check the bus connector integrity. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140XCA71709, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140XCA71709?
The 140XCA71709 is a backplane expander cable in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Backplane expander cable.
What are the key technical ratings of the 140XCA71709?
Its published highlights include 24V DC, operating temperature -20°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140XCA71709 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140XCA71709 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140XCA71709?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

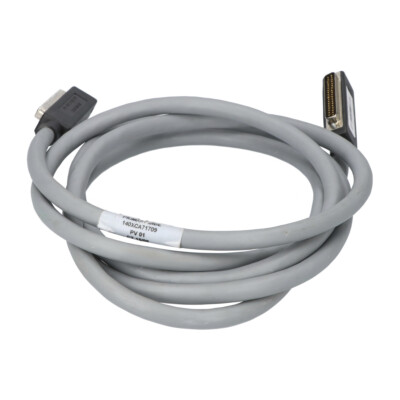

The Schneider Electric 140XCA71709 is a backplane expander cable designed for the Modicon Quantum series. With a cable length of 3 meters, it provides dependable connectivity between components within your system.
Complementary
| Product Compatibility | 140XBE10000 Cable length 9.8 ft (3 m) |
|---|
Ordering and shipping details
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 GTIN 3595860026019 |
Description
| Note | The 140XCA71709 backplane expander cable from Schneider Electric is specifically engineered for the Modicon Quantum series. This cable measures 9.84 feet (3 meters) in length, facilitating adequate spacing for component arrangement in different setups. Designed for a wide operational temperature range from -20°C to 60°C, it ensures reliable performance under standard conditions. When stored, it can endure temperatures between -40°C and 85°C, enhancing its versatility for various environments. Its operational capacity includes an altitude maximum of 2000 meters, suitable for high installations. The cable's IP20 rating indicates a moderate level of protection against dust and moisture. The 140XCA71709 requires a 24V DC input voltage for operation. Connectivity is established via the Modbus TCP/IP communication protocol, aiding integration within larger systems. This backplane expander cable is specifically compatible with the 140XBE10000 backplane expander, ensuring seamless communication between the system components. Weighing in at 0.53 kg, it provides a lightweight yet robust solution for wiring needs within industrial setups. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
