140XBP01600
Schneider Electric
Overview

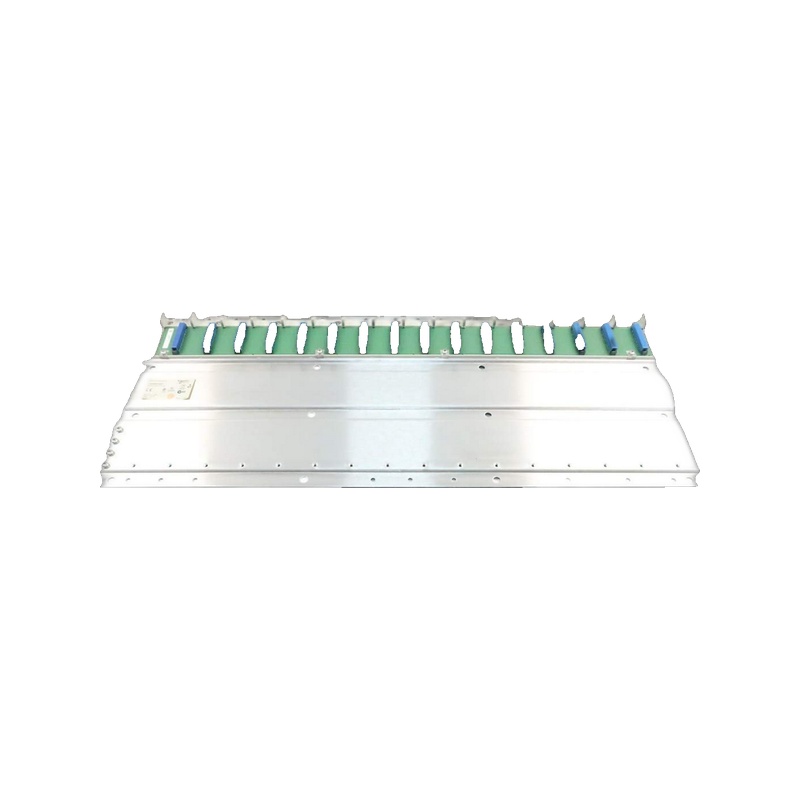

The 140XBP01600 is a Backplane rack in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a backplane rack, the 140XBP01600 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It mechanically and electrically unifies the controller, power supply and I/O modules, providing the backplane bus and mounting structure.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Seat every module firmly on the backplane, observe module order where required, and check the bus connector integrity. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140XBP01600, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140XBP01600?
The 140XBP01600 is a backplane rack in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Backplane rack.
What are the key technical ratings of the 140XBP01600?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140XBP01600 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140XBP01600 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140XBP01600?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
16-slot Backplane Rack Modicon Quantum
Physical
| Slots | 16 |
|---|---|
| Type | Backplane rack |
| Dimensions (H×W×D) | 671 × 104 × 290 mm |
| Weight | 2.73 kg |
| Mounting | Panel mount |
Environmental
| Operating temperature | Not available |
|---|---|
| Storage temperature | Not available |
| Relative humidity | Not available |
| Protection rating | IP20 |
Lifecycle
| Discontinued (End of Sale) (Last verified | 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
