140NWM10000C
Schneider Electric
Overview

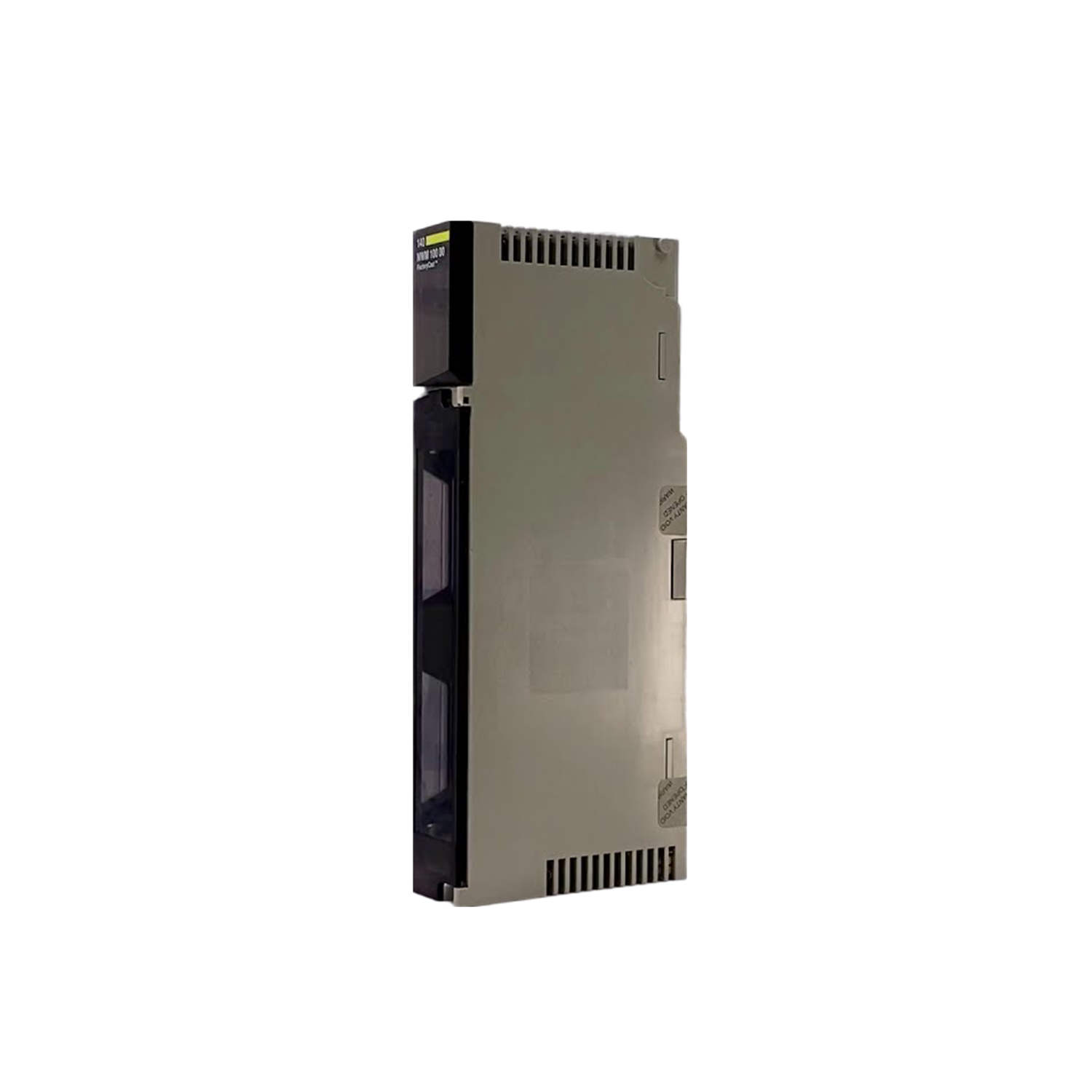

The 140NWM10000C is an Operator Panel in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an operator panel, the 140NWM10000C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NWM10000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NWM10000C?
The 140NWM10000C is an operator panel in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Operator Panel.
What are the key technical ratings of the 140NWM10000C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140NWM10000C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NWM10000C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NWM10000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140NWM10000C serves as an operator panel within the Modicon Quantum series. Equipped with an LED display, this model is designed to facilitate user interactions with industrial control systems.
Description
| Note | In the Modicon Quantum series, the 140NWM10000C operates as a dedicated operator panel. This unit presents information through its LED display, enabling clear visibility for users. The panel is designed with two communication ports, allowing connections through MT-RJ or RJ-45 connectors. Constructed to meet CE standards, this panel also maintains an IP20 protection class, safeguarding internal components against dust and other environmental factors. The enclosure rating is classified as NEMA 1, suitable for indoor settings. This operator panel performs efficiently in environments where the ambient temperature ranges from 0 to 40 degrees Celsius. It tolerates operating and storage humidity levels of up to 80% RH, ensuring reliable functionality in various conditions. Additionally, the 140NWM10000C is suitable for use at altitudes up to 1000 meters above sea level, making it adaptable to different installation environments. Its specifications make it a dependable choice for user interface applications in industrial automation. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
