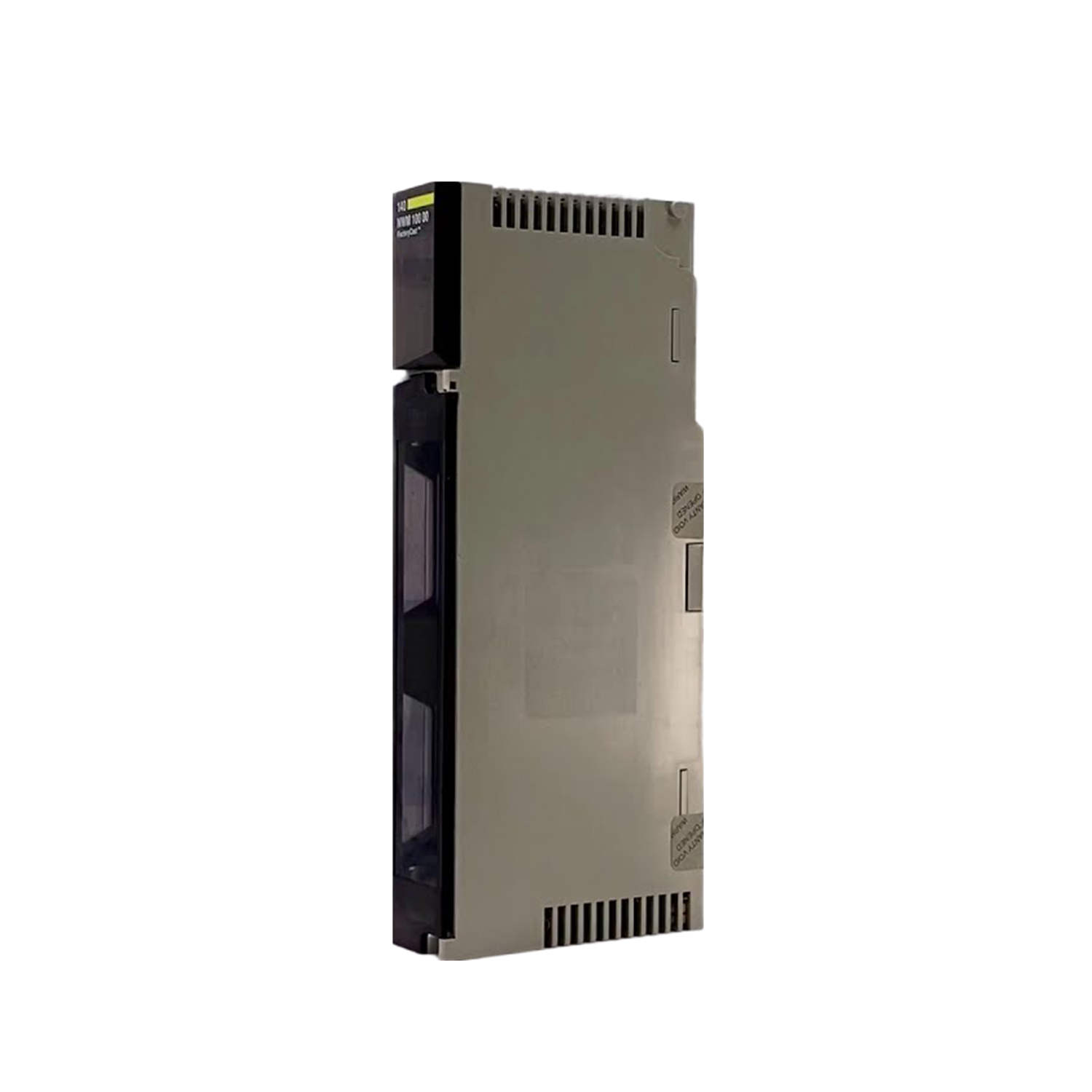

140NWM05000
Schneider Electric
Overview
The 140NWM05000 is a DIO head-end adaptor in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a dio head-end adaptor, the 140NWM05000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0 to 40 degrees Celsius. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 40 degrees Celsius); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within 0 to 50 degrees Celsius. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NWM05000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NWM05000?
The 140NWM05000 is a dio head-end adaptor in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: DIO head-end adaptor.
What are the key technical ratings of the 140NWM05000?
Its published highlights include operating temperature 0 to 40 degrees Celsius. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NWM05000 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NWM05000 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NWM05000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140NWM05000 is a head-end adaptor from Schneider Electric's Modicon Quantum series. This DIO module requires an IP address and is designed with a removable door for easy access.
Description
| Note | The 140NWM05000 by Schneider Electric is categorized as a DIO head-end adaptor, essential for integration within the Modicon Quantum framework. Configuration of this module mandates an assigned IP address to ensure proper network communication. A removable door feature simplifies installation and maintenance processes. This adaptor provides a variety of communication interfaces, inclusive of RS-232, 100 Base-Fx, and 10/100 Base-T connectivity, facilitating versatile networking options. It can source a bus current of up to 900 mA, alongside 750 mA through the serial port, supporting efficient power distribution with a total power dissipation of 4.5 W and 3.8 W specifically for the serial port. Upgradability of the firmware enhances its longevity and adaptability to new requirements. Diagnostic LEDs present on the device aid in troubleshooting and system monitoring. The 140NWM05000 is engineered to perform within a temperature span between 0 and 40 degrees Celsius, while it can withstand storage conditions of 0 to 50 degrees Celsius. Additionally, it is designed for use in environments with a maximum relative humidity level of 80% RH, both during operation and while in storage, maintaining functionality in non-condensing conditions. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
