140NRP95401C
Schneider Electric
Overview

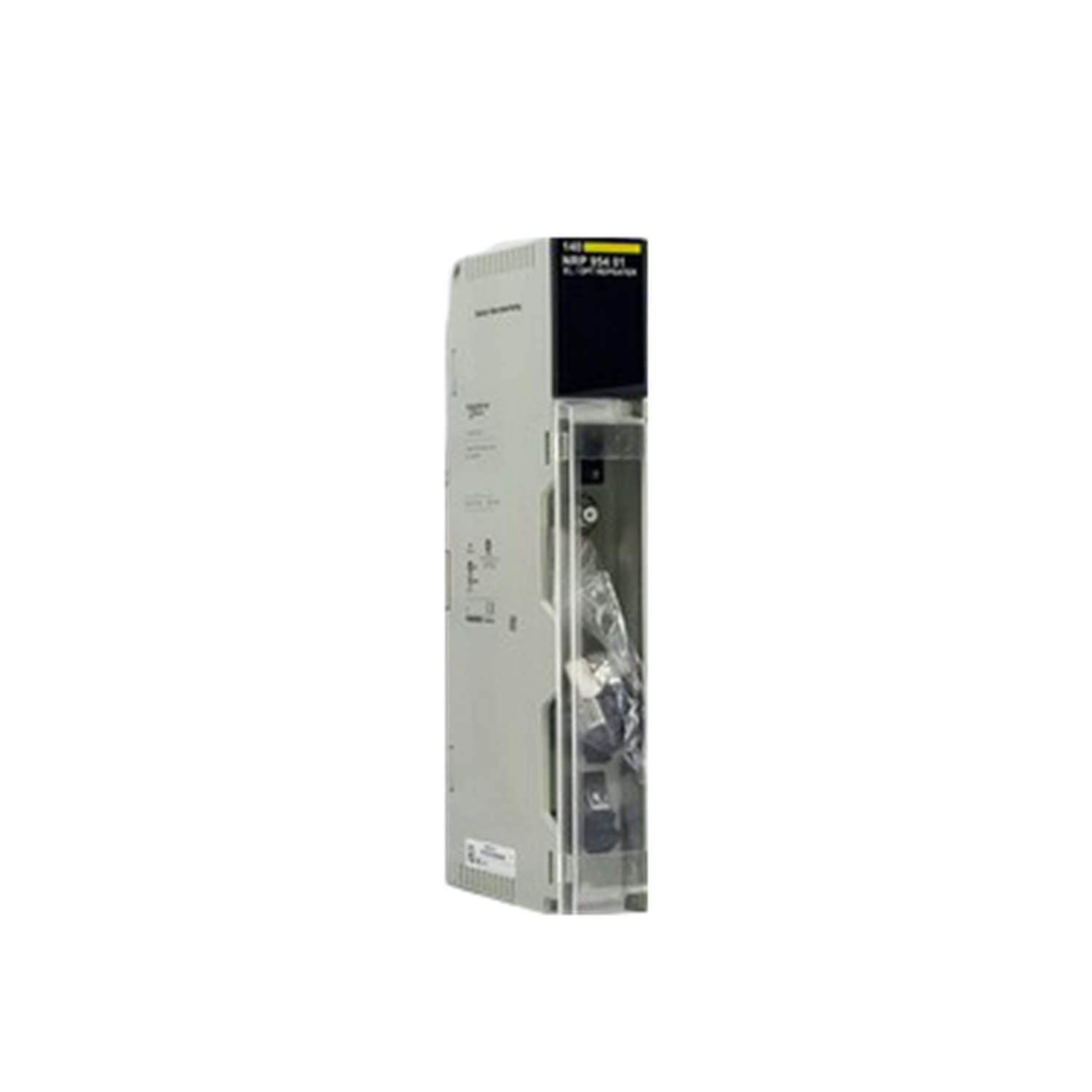

The 140NRP95401C is a Fibre optic repeater in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a fibre optic repeater, the 140NRP95401C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0 to 60°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40 to 85°C (in a non-condensing environment). Avoid condensation — the rated humidity is Tolerance 0 to 95% relative humidity (without condensation); store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NRP95401C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NRP95401C?
The 140NRP95401C is a fibre optic repeater in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Fibre optic repeater.
What are the key technical ratings of the 140NRP95401C?
Its published highlights include operating temperature 0 to 60°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NRP95401C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NRP95401C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NRP95401C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Manufacturer : Schneider Electric
Description
| Note | The 140NRP95401C from Schneider Electric is a specialized fibre optic repeater that enhances signal transmission within industrial environments. Operating within a power dissipation of 5 watts and needing a bus current of 750 milliamperes, it is well-suited for high-performance applications. The inrush current peaks at 1.8 amperes at 5 volts DC, ensuring the device starts effectively. Designed for flexibility, it features two ports dedicated to fiber optic connectors and one port for standard coaxial connections, allowing for diverse networking configurations. Local signalling is supported through a set of indicators; four green LEDs display standard operation, while three red LEDs alert users to potential issues. The device operates efficiently up to an altitude of 2,000 meters (6,561.68 feet) above sea level, maintaining performance in various settings. In terms of environmental conditions, this fibre optic repeater functions optimally in ambient temperatures between 0 to 60°C without condensation, and it has a storage temperature tolerance of -40 to 85°C in similar conditions. This repeater uses single mode fibre optics and has a receiver sensitivity of -25 decibel-milliwatts, enabling precise and reliable signal reception. It can detect silence down to -45 decibel-milliwatts, making it ideal for communication that requires minimal background noise. With a weight of 1.21 pounds (0.55 kilograms), it remains lightweight for easy installation in various systems. The 140NRP95401C also tolerates humidity levels from 0 to 95% without condensation, adding to its versatility in different operating environments. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
