140NRP95400
Schneider Electric
Overview
The 140NRP95400 is a Modicon Quantum in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a modicon quantum, the 140NRP95400 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NRP95400, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NRP95400?
The 140NRP95400 is a modicon quantum in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Modicon Quantum.
What are the key technical ratings of the 140NRP95400?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140NRP95400 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NRP95400 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NRP95400?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

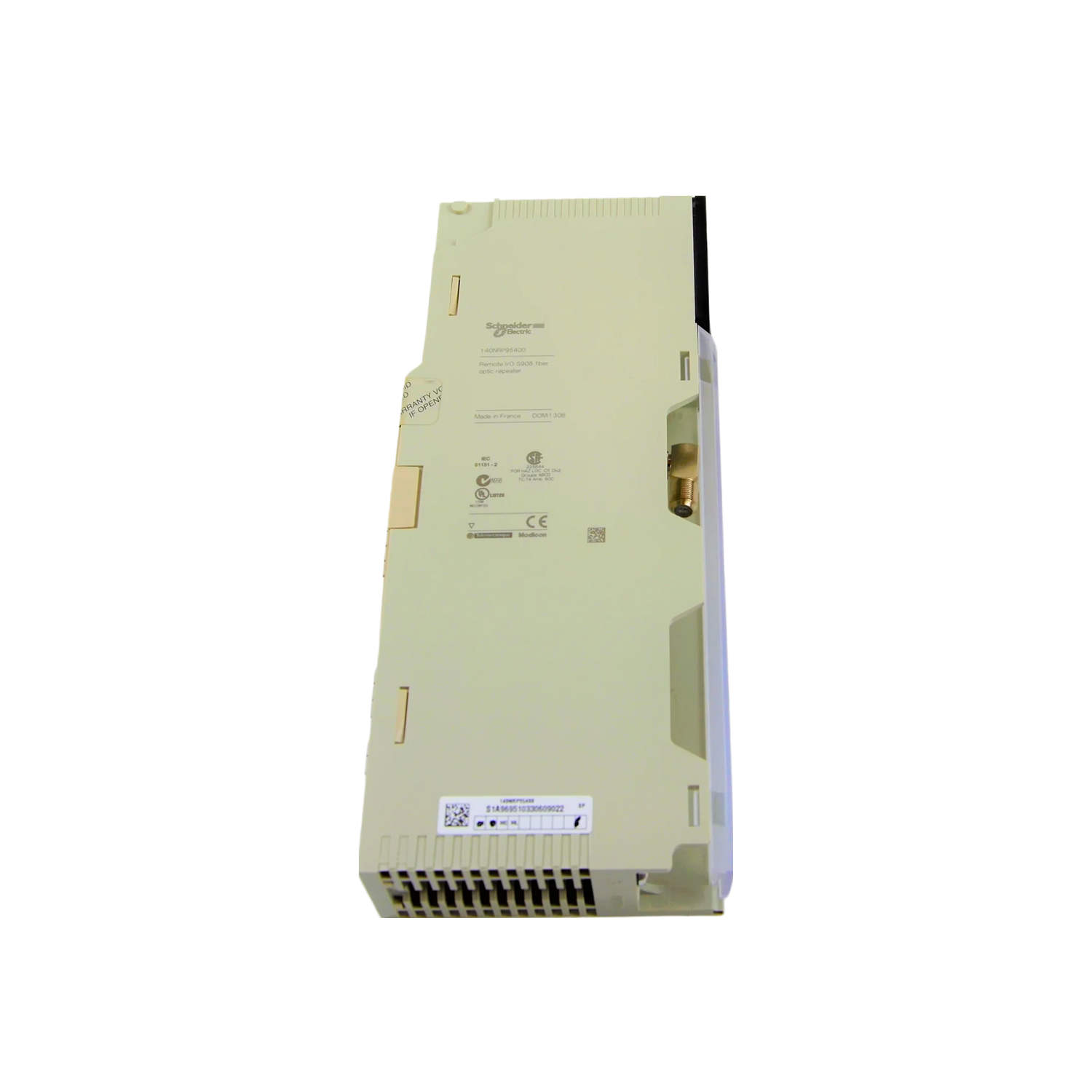

The Schneider Electric 140NRP95400 fiber optic repeater is engineered for effective signal transmission in network applications. With multiple ports, it utilizes multi-mode fiber optics and features LED indicators for operational status.
Description
| Note | Part number 140NRP95400 from Schneider Electric features a fiber optic repeater tailored for optimal data transmission. This unit is built to operate using multi-mode fiber optics and requires a bus current of 700 mA. It dissipates around 5 watts during operation. The device can withstand an inrush current of 1 amp at 5VDC, ensuring durability under varying power conditions. Designed with two fiber optic ports using ST connectors, it also includes a coaxial connector port, maximizing connectivity options for network integration. Operational performance is enhanced with LED indicators that convey the status of the device instantly. The repeater operates at a wavelength of 820 nm with a rapid rise/fall time of 20 nanoseconds, which allows it to support fast data communications. Its receiver sensitivity is rated at -30 dBm, along with a dynamic range of 20 dB, ensuring that it can effectively manage signals across significant distances. Additionally, it identifies silence at -36 dBm, providing insights into the absence of data transmission. Constructed from polycarbonate, the casing is durable, with dimensions of 40.34 mm in width, 250 mm in height, and 103.85 mm in depth. Weighing in at 0.554 kilograms, this fiber optic repeater is compact and suitable for various installation scenarios, reinforcing its place in robust communication systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
